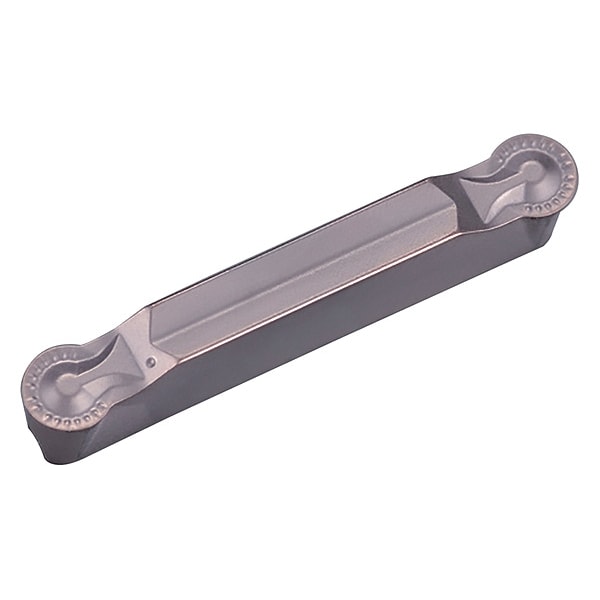

Grooving Insert, GDM 4020N200RCM PR1215 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| ISO Number | GDM4020R-020R-CM |
| Overall Length | 20 mm |
| Rake | Positive |
| Corner Radius | 2 mm |
| Secondary Material Application | Stainless Steel |
| Cutting Height | 4.3 mm |
| Material - Machining | Carbide |
| Insert Holding Type | Clamp |
| Chip-Breaker Code | CM |
| Finish - Machining | Megacoat |
| Coating Process | PVD |
| Number of Cutting Edges | 2 |
| Secondary Material Application ISO Code | M |
| Cutting Application | Copying, Internal Diameter Grooving |
| Primary Material Application | Steel |
| Hole Type | No Hole |
| Measurement System | Metric |
| Primary Material Application ISO Code | P |
| Max. Grooving Width | 4 mm |
| ANSI Code | GDM4020N200RCM |
| For Toolholder | KGDIL-4, KGDIR-4 |
| Manufacturer Grade | PR1215 |
| Insert Size | 4020 |
| Package Quantity | 1 |
