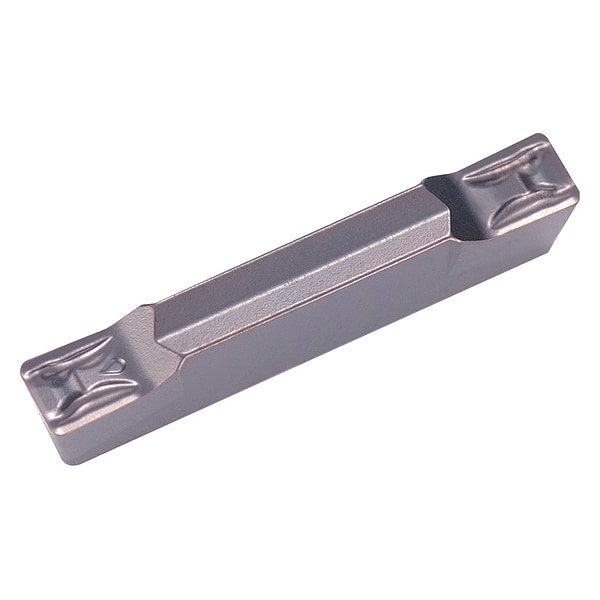

Grooving Insert, GDM 6020N040GM PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Corner Radius | 0.4 mm |
| Rake | Positive |
| Overall Length | 20 mm |
| ISO Number | GDM6020N-040GM |
| ANSI Code | GDM6020N040GM |
| For Toolholder | KGDL-5, KGDL...-5..., KGDL...-6, KGDR-5, KGDR...-5..., KGDR...-6 |
| Cutting Location | External |
| Insert Size | 6020 |
| Coating Process | PVD |
| Cutting Application | Grooving, Traversing |
| Chip-Breaker Code | GM |
| Max. Grooving Width | 6 mm |
| Secondary Material Application | Stainless Steel |
| Manufacturer Grade | PR1535 |
| Primary Material Application | High-Temperature Alloys |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | S |
| Measurement System | Metric |
| Hole Type | No Hole |
| Insert Holding Type | Clamp |
| Finish - Machining | Megacoat Nano |
| Secondary Material Application ISO Code | M |
| Number of Cutting Edges | 2 |
| Cutting Height | 4.3 mm |
| Package Quantity | 1 |
