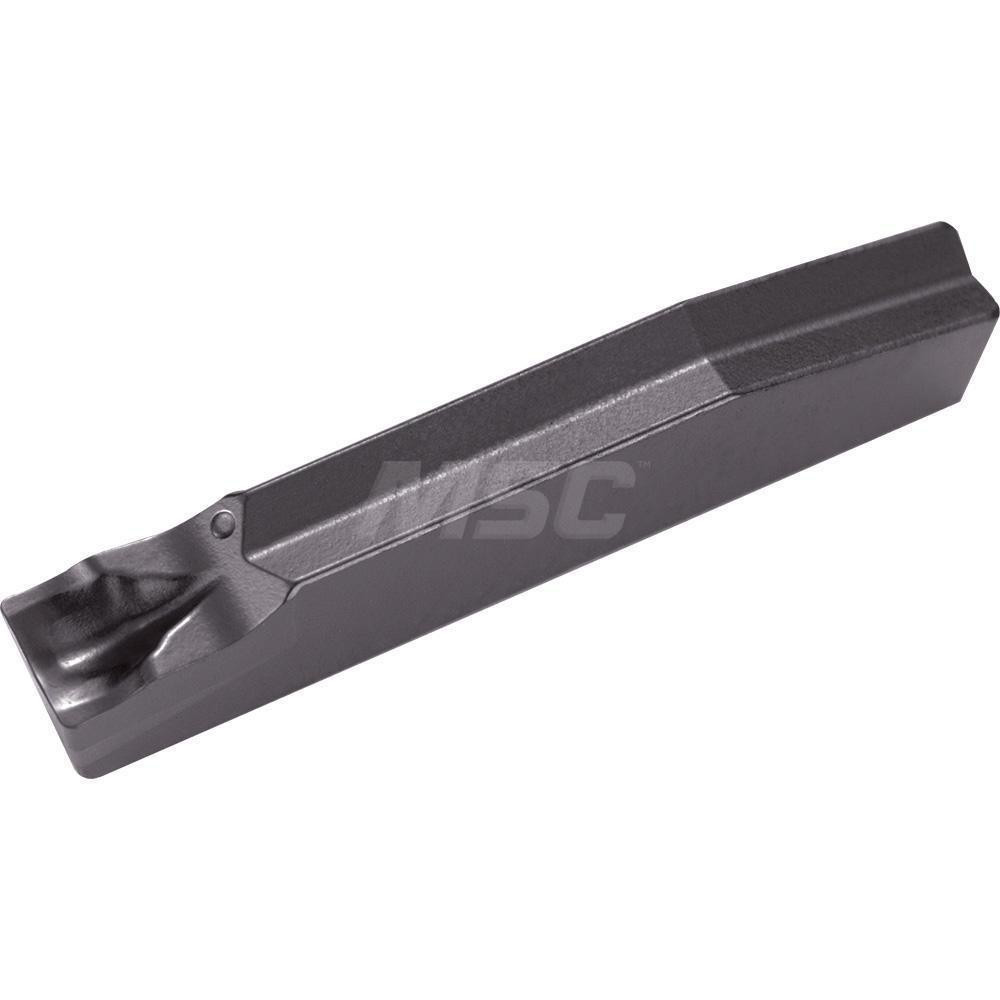

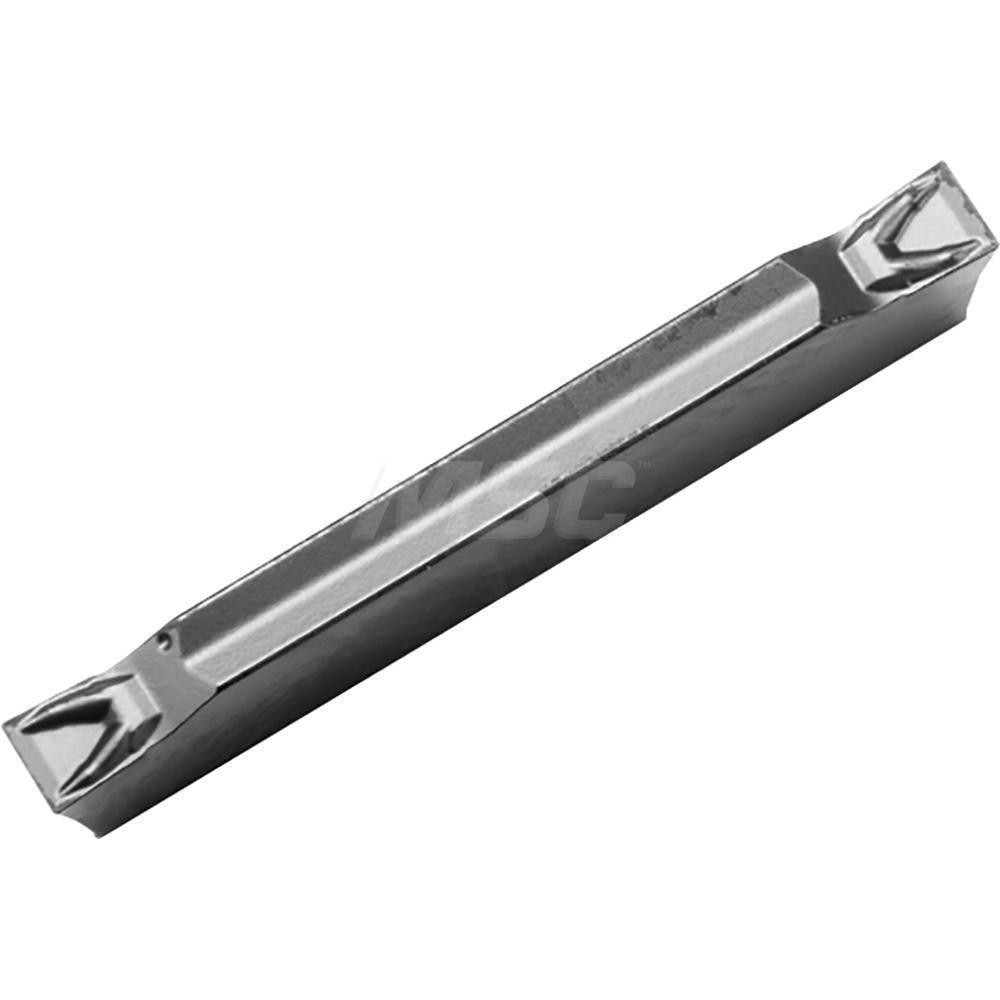

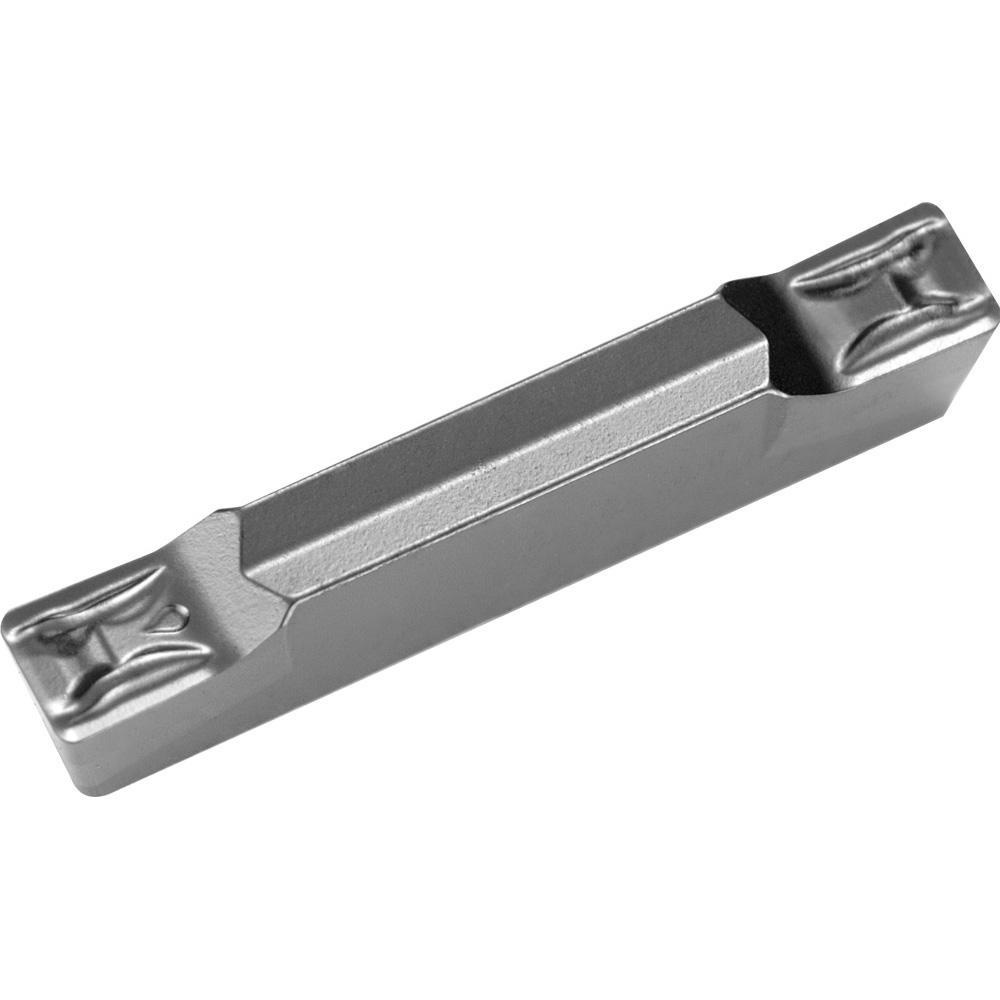

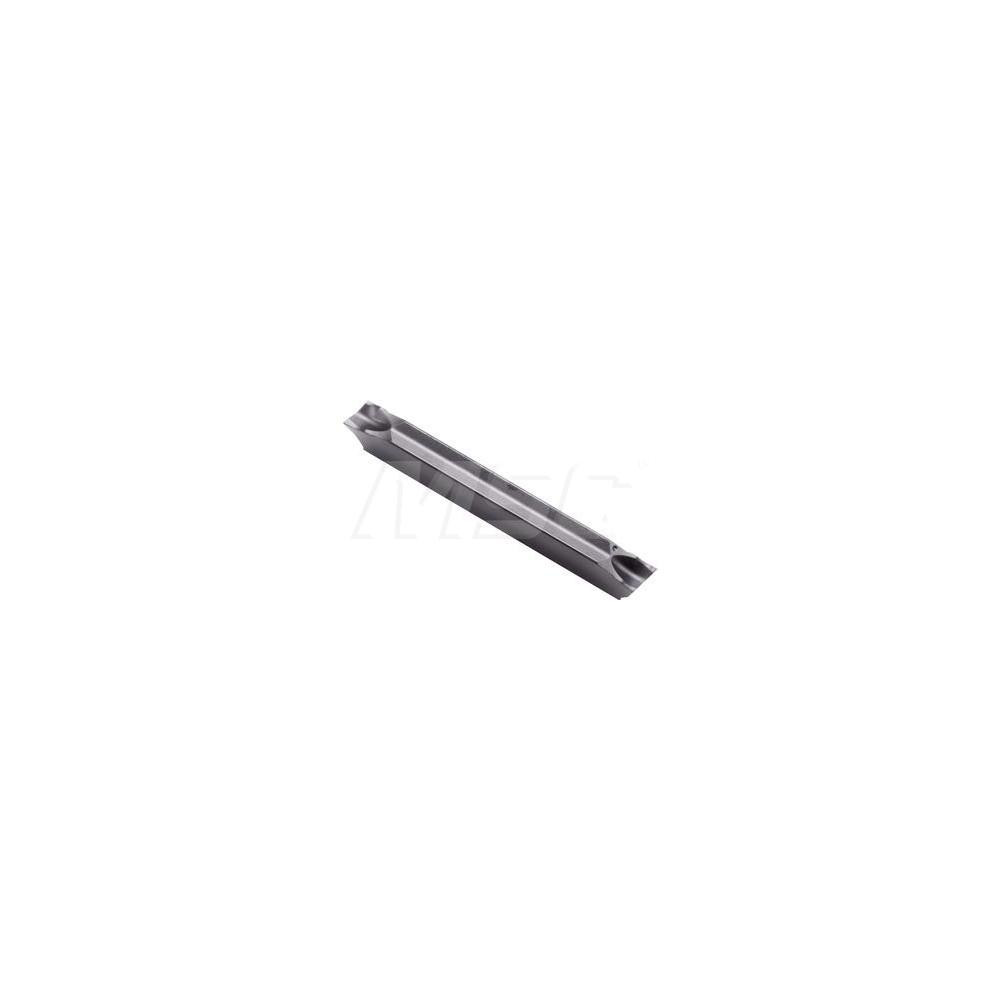

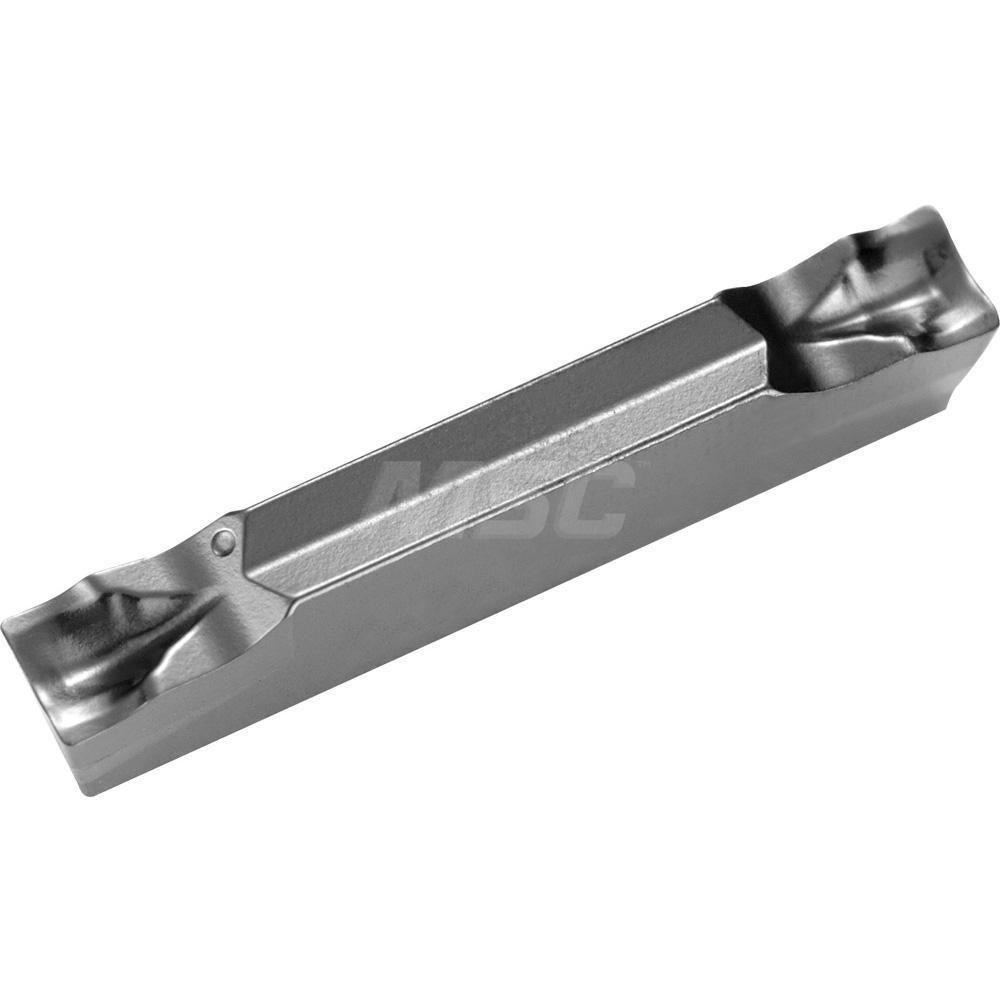

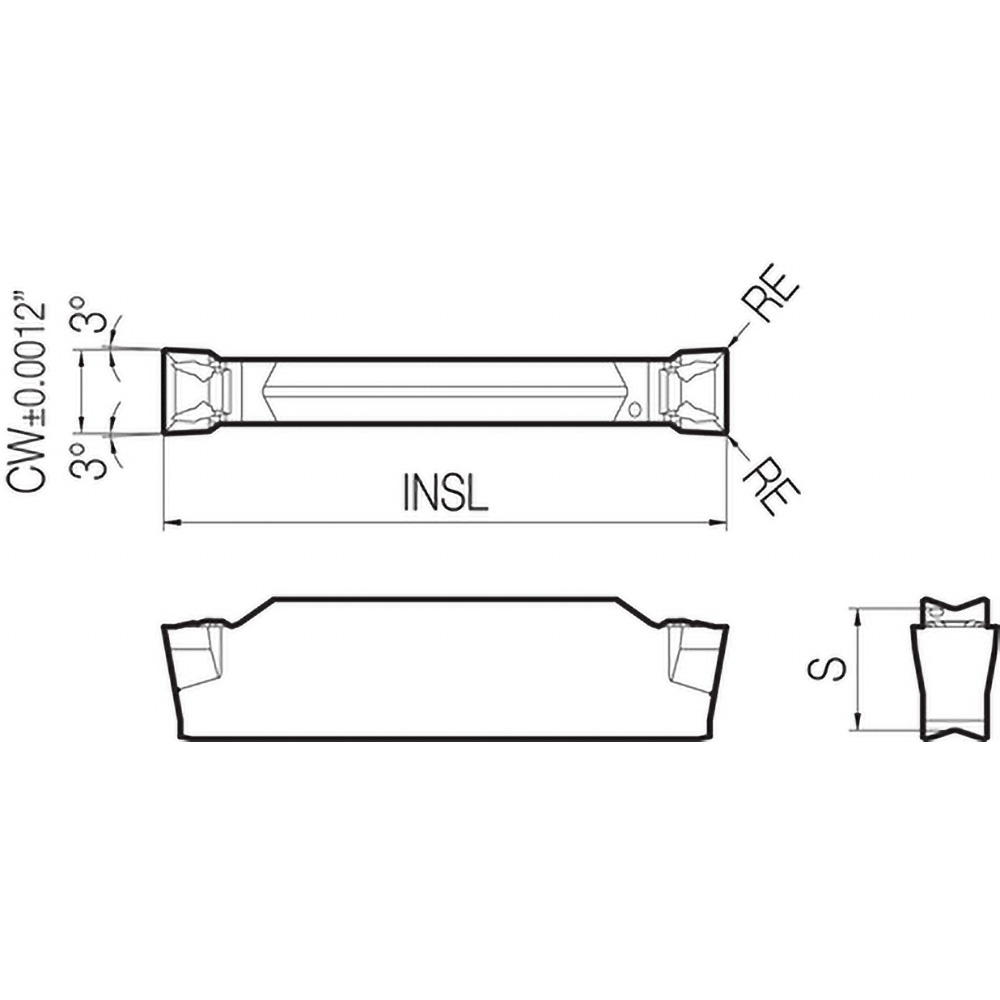

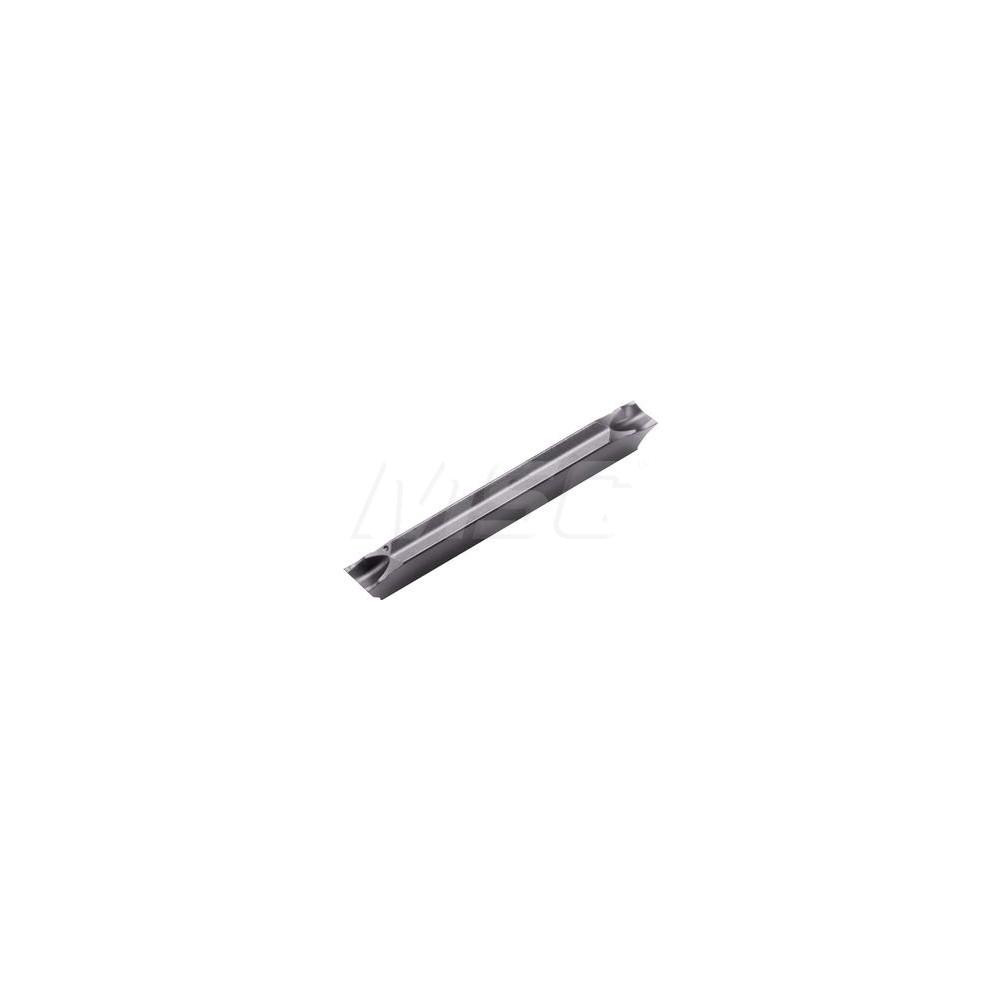

MEGACOAT Finish, Neutral, 3.00 mm Cutting Width, Series GD
| Insert Style | GDM |
|---|---|
| Insert Size Code | 3020 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Hand | Neutral |
| Insert Material | Carbide |
| Manufacturer Grade | PR1225 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Clamp |
| Insert Size | 3020 |
| Material Grade | Micrograin |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-use Tool | Yes |
| Series | GD |
| Coating Process | PVD |
| Rake Angle | 3 |
| Overall Length (Decimal Inch) | 0.7874 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | GDM3020N010PQPR1225 |
| Iso Code | GDM3020N010PQ |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GDM3020N-010PQ |
| Insert Thickness (Decimal Inch) | 0.0906 |
| UNSPSC Code | 23242105 |
| Chip Breaker | PQ |
| Coating/Finish | MEGACOAT |
| Insert Thickness | 2.00 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50469121 |
