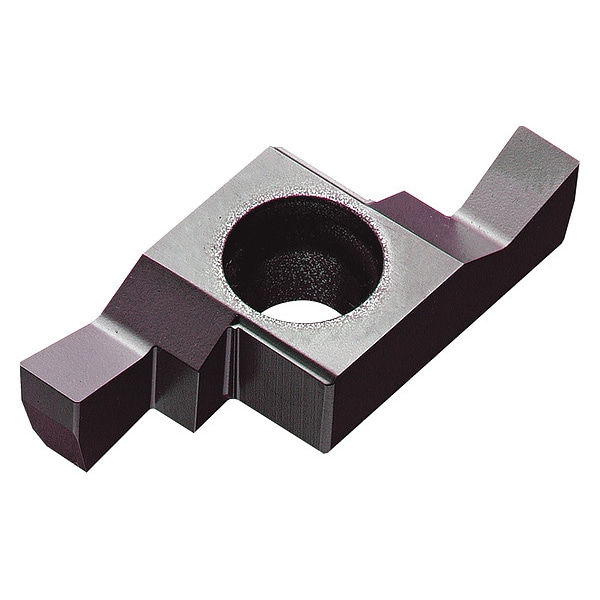

Grooving Insert, GE R100005D PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Width | 6.8 mm |
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Corner Radius | 0.05 mm |
| ISO Number | GER100-005D |
| Rake | Positive |
| Overall Length | 16.44 mm |
| Thickness | 5.05 mm |
| Finish - Machining | Megacoat |
| Hole Type | With Hole |
| Max. Grooving Width | 1 mm |
| For Toolholder | SIGER...D-EH |
| ANSI Code | GER100005D |
| Number of Cutting Edges | 2 |
| Cutting Application | Grooving |
| Insert Holding Type | Clamp |
| Measurement System | Metric |
| Chip-Breaker Code | D |
| Primary Material Application ISO Code | P |
| Coating Process | PVD |
| Material - Machining | Carbide |
| Secondary Material Application ISO Code | M |
| Cutting Location | Internal |
| Secondary Material Application | Stainless Steel |
| Primary Material Application | Steel |
| Depth of Cut | 2.5 mm |
| Manufacturer Grade | PR1225 |
| Insert Size | 100005 |
| Package Quantity | 1 |
