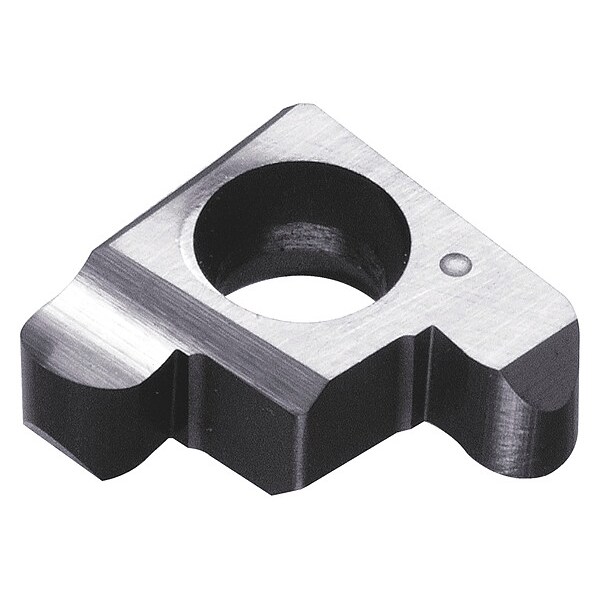

Grooving Insert, GE R100050BR KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Width | 8.46 mm |
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Overall Length | 8.2 mm |
| Rake | Positive |
| ISO Number | GER100-050BR |
| Corner Radius | 0.5 mm |
| Thickness | 3.18 mm |
| Primary Material Application ISO Code | N |
| ANSI Code | GER100050BR |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Hole Type | With Hole |
| Number of Cutting Edges | 2 |
| Cutting Application | Grooving |
| Max. Grooving Width | 1 mm |
| For Toolholder | SIGER...B-EH, SIGER...B-WH, SIGER...B-WH-90, SIGER...EH |
| Measurement System | Metric |
| Finish - Machining | Bright |
| Material - Machining | Carbide |
| Insert Size | 100050 |
| Cutting Location | Internal |
| Insert Holding Type | Clamp |
| Chip-Breaker Code | BR |
| Depth of Cut | 2.2 mm |
| Manufacturer Grade | KW10 |
| Package Quantity | 1 |
