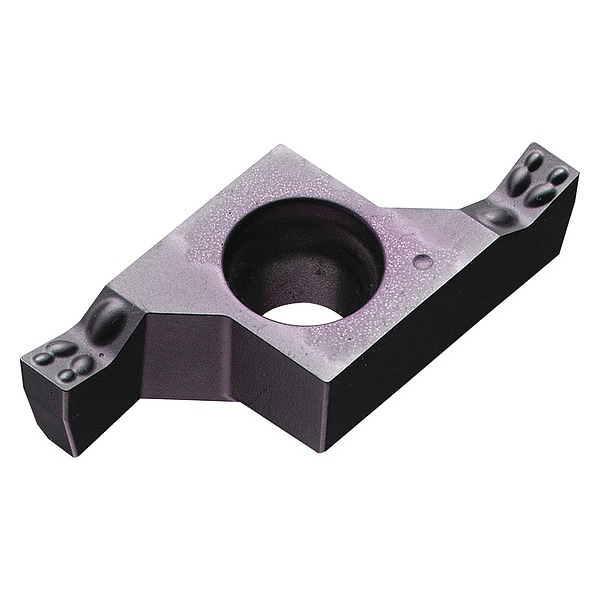

Grooving Insert, GE R300020EM PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Width | 9.54 mm |
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| ISO Number | GER300-020EM |
| Corner Radius | 0.2 mm |
| Overall Length | 21.66 mm |
| Rake | Positive |
| Thickness | 5.56 mm |
| Insert Size | 300020 |
| Primary Material Application ISO Code | P |
| Material - Machining | Carbide |
| For Toolholder | SIGER...E-EH |
| Primary Material Application | Steel |
| Hole Type | With Hole |
| Max. Grooving Width | 3 mm |
| Secondary Material Application | Stainless Steel |
| Insert Holding Type | Clamp |
| Cutting Application | Grooving |
| Manufacturer Grade | PR1225 |
| Measurement System | Metric |
| Depth of Cut | 4.5 mm |
| Chip-Breaker Style | Molded |
| Secondary Material Application ISO Code | M |
| Coating Process | PVD |
| Chip-Breaker Code | EM |
| Number of Cutting Edges | 2 |
| Finish - Machining | Megacoat |
| Cutting Location | Internal |
| ANSI Code | GER300020EM |
| Package Quantity | 1 |
