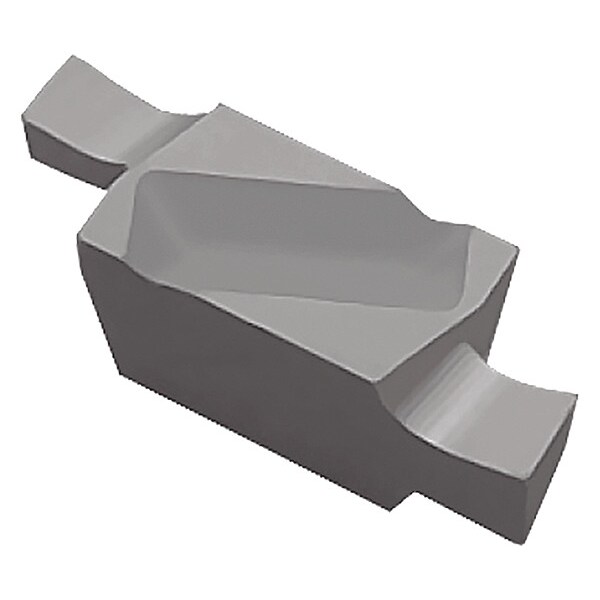

Grooving Insert, GVF L100AA KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Left Hand |
| Overall Length | 12 mm |
| Corner Radius | 0.05 mm |
| Rake | Positive |
| ISO Number | GVFL100AA |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Chip-Breaker Code | AA |
| For Toolholder | GFVSR-08AA, GFVTR-08AA |
| Cutting Application | Face Grooving |
| Measurement System | Metric |
| Insert Holding Type | Clamp |
| Number of Cutting Edges | 2 |
| Depth of Cut | 2.2 mm |
| Cutting Height | 4.5 mm |
| Finish - Machining | Bright |
| Max. Grooving Width | 1 mm |
| Material - Machining | Carbide |
| Insert Size | 100 |
| Manufacturer Grade | KW10 |
| ANSI Code | GVFL100AA |
| Primary Material Application ISO Code | N |
| Hole Type | No Hole |
| Package Quantity | 1 |
