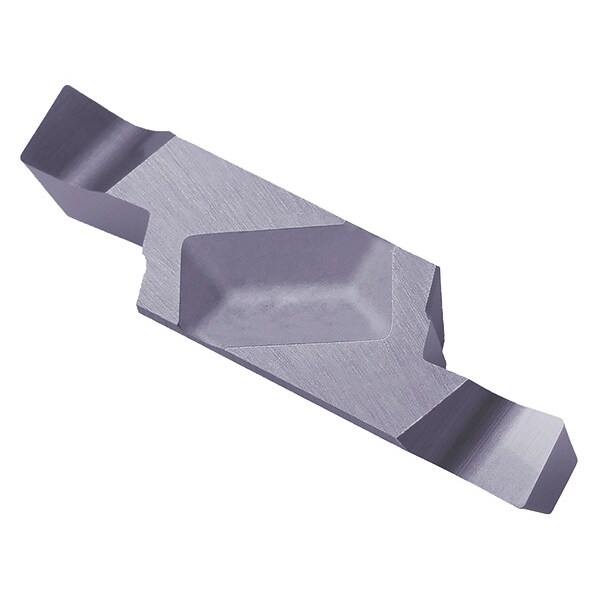

Grooving Insert, GVF L350020B PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Left Hand |
| ISO Number | GVFL350020B |
| Corner Radius | 0.2 mm |
| Rake | Positive |
| Overall Length | 20 mm |
| Cutting Application | Face Grooving |
| Coating Process | PVD |
| Finish - Machining | Megacoat |
| Depth of Cut | 4.8 mm |
| Max. Grooving Width | 3.5 mm |
| Secondary Material Application ISO Code | M |
| Manufacturer Grade | PR1225 |
| Hole Type | No Hole |
| Insert Holding Type | Clamp |
| Measurement System | Metric |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| ANSI Code | GVFL350020B |
| Material - Machining | Carbide |
| For Toolholder | GFVL...-...1B, GFVSR...-...1B, GFVTR...-...1B, GIFVL...-...1B |
| Cutting Height | 5 mm |
| Secondary Material Application | Stainless Steel |
| Chip-Breaker Code | B |
| Number of Cutting Edges | 2 |
| Insert Size | 350020 |
| Package Quantity | 1 |
