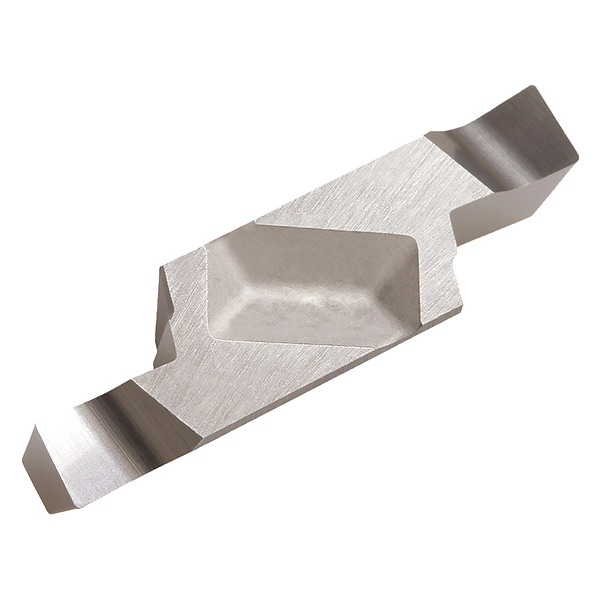

Grooving Insert, GVF R350C KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Rake | Positive |
| ISO Number | GVFR350C |
| Corner Radius | 0.4 mm |
| Overall Length | 27 mm |
| For Toolholder | GFVR...-...1C, GFVSL...-...1C, GFVTL...-...1C, GIFVR...-...1C |
| Number of Cutting Edges | 2 |
| ANSI Code | GVFR350C |
| Max. Grooving Width | 3.5 mm |
| Insert Size | 350 |
| Finish - Machining | Bright |
| Primary Material Application ISO Code | N |
| Insert Holding Type | Clamp |
| Manufacturer Grade | KW10 |
| Measurement System | Metric |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Depth of Cut | 6.8 mm |
| Hole Type | No Hole |
| Chip-Breaker Code | C |
| Cutting Application | Face Grooving |
| Material - Machining | Carbide |
| Cutting Height | 7 mm |
| Package Quantity | 1 |
