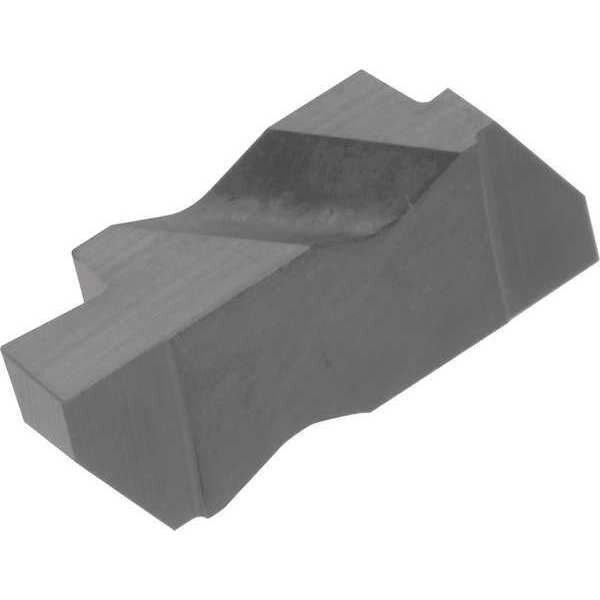

Grooving Insert, KCG Style, 0.062" W
| Item | Parting and Grooving Insert |
|---|---|
| Style | KCG |
| Insert Seat Size | G |
| Width | 2.5 mm |
| Depth | 0.094 in |
| Chip-Breaker | Yes |
| Grade | A65 |
| Cutting Direction | Right Hand |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| No. of Edges | 2 |
| ISO Number | KCG3062R A65 |
| For Use With | KKC Series Grooving Tools |
| Mounting Style | Top Notch Clamping |
| Hardened (H) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Corner Radius | 0.0079 in |
| Coating | TiC3 + Al2O3 |
| Rake | Positive |
| Super Alloy (S) Compatibility | No |
| Application | Shallow Grooving |
| Non Ferrous (N) Compatibility | No |
| Lead Angle | 0 deg |
| Insert Material | Ceramic |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | KCG3062R A65 |
| Cutting Application | Cut-Off |
| Seat Size | G |
| Material - Machining | Ceramic |
| Number of Cutting Edges | 2 |
| Finish - Machining | Bright |
| Primary Material Application ISO Code | K |
| ANSI Code | KCG3062R A65 |
| Hole Type | No Hole |
| Insert Holding Type | Clamp |
| Primary Material Application | Cast Iron |
| Manufacturer Grade | A65 |
| Secondary Material Application ISO Code | H |
| Secondary Material Application | Hardened Steel |
| Insert Size | 3062 |
| Measurement System | Fractional Inch |
| Insert Style | KCG |
| Package Quantity | 1 |
