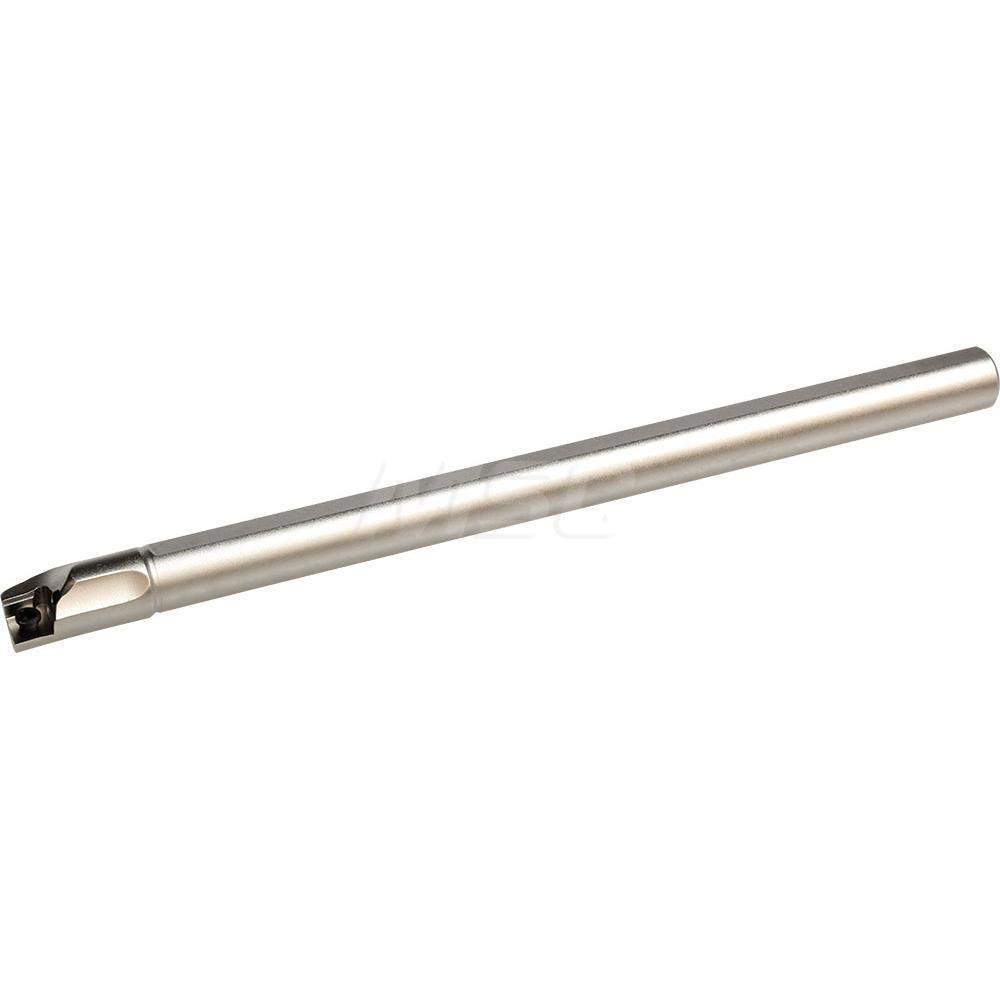

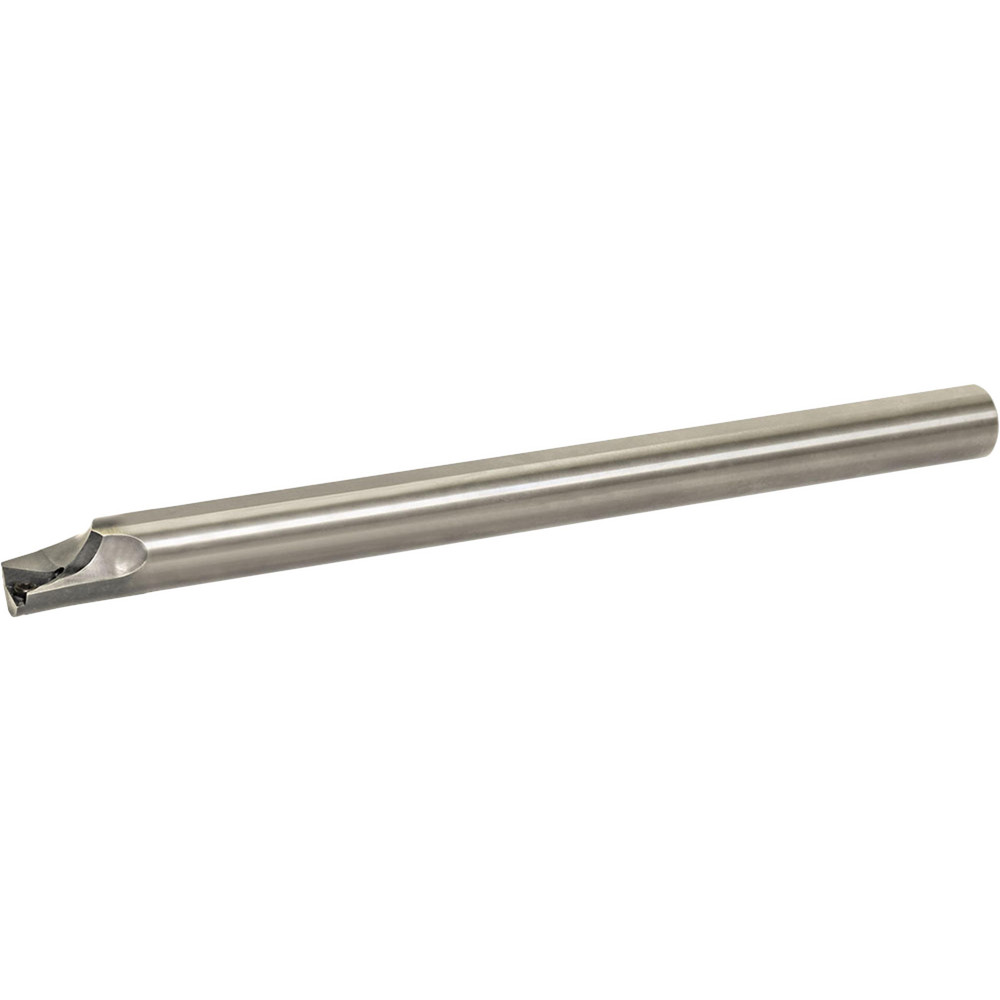

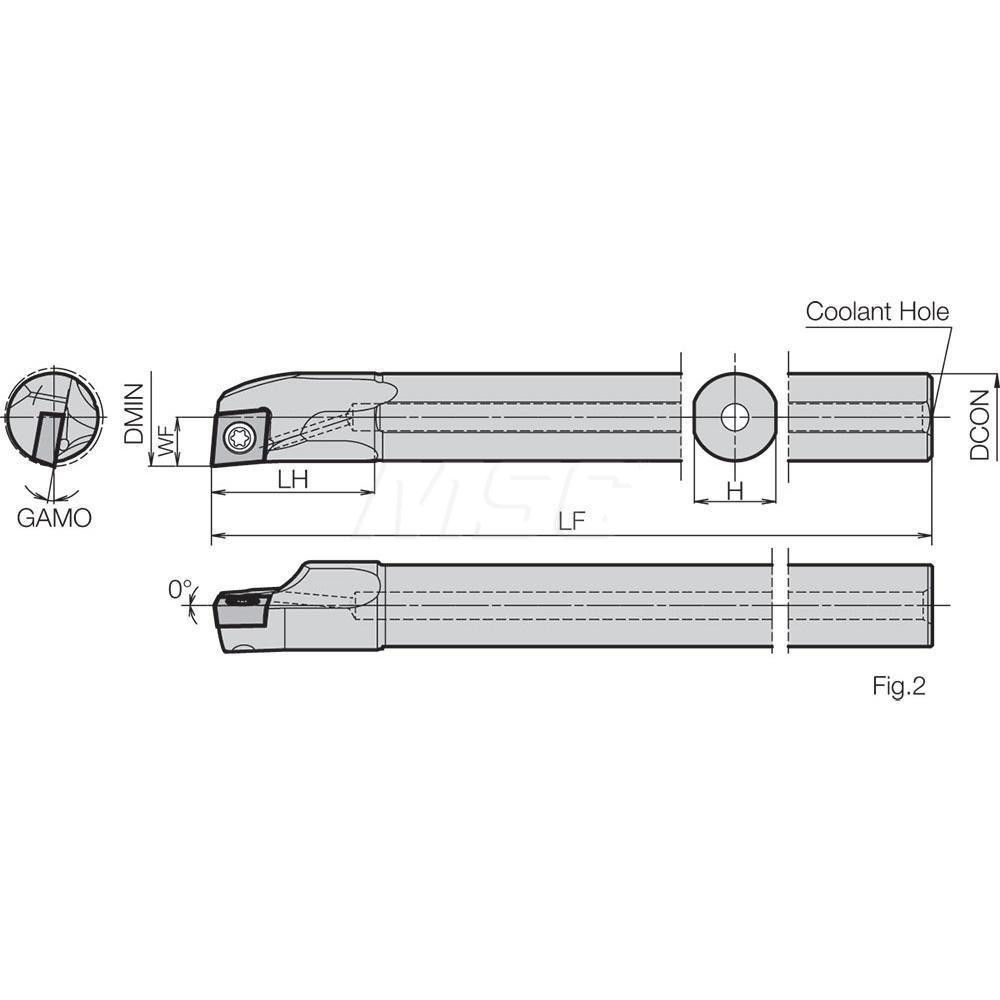

120.00 mm OAL, Screw, Uses CCGT 215.., CCGW 215.., CCMT 215.. & CCMW 215.. Inserts
| Minimum Bore Diameter (mm) | 10.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Maximum Bore Depth (Decimal Inch) | 0.6299 |
| Maximum Bore Depth (mm) | 16.00 |
| Toolholder Style | A/S-SCLC-AE |
| Tool Material | Steel |

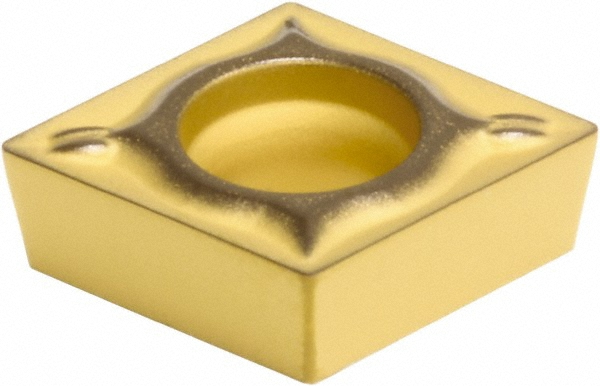

| Insert Compatibility | CCGT 215..; CCGW 215..; CCMT 215..; CCMW 215.. |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Compatible Insert Size Code | 215 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -14.00 |

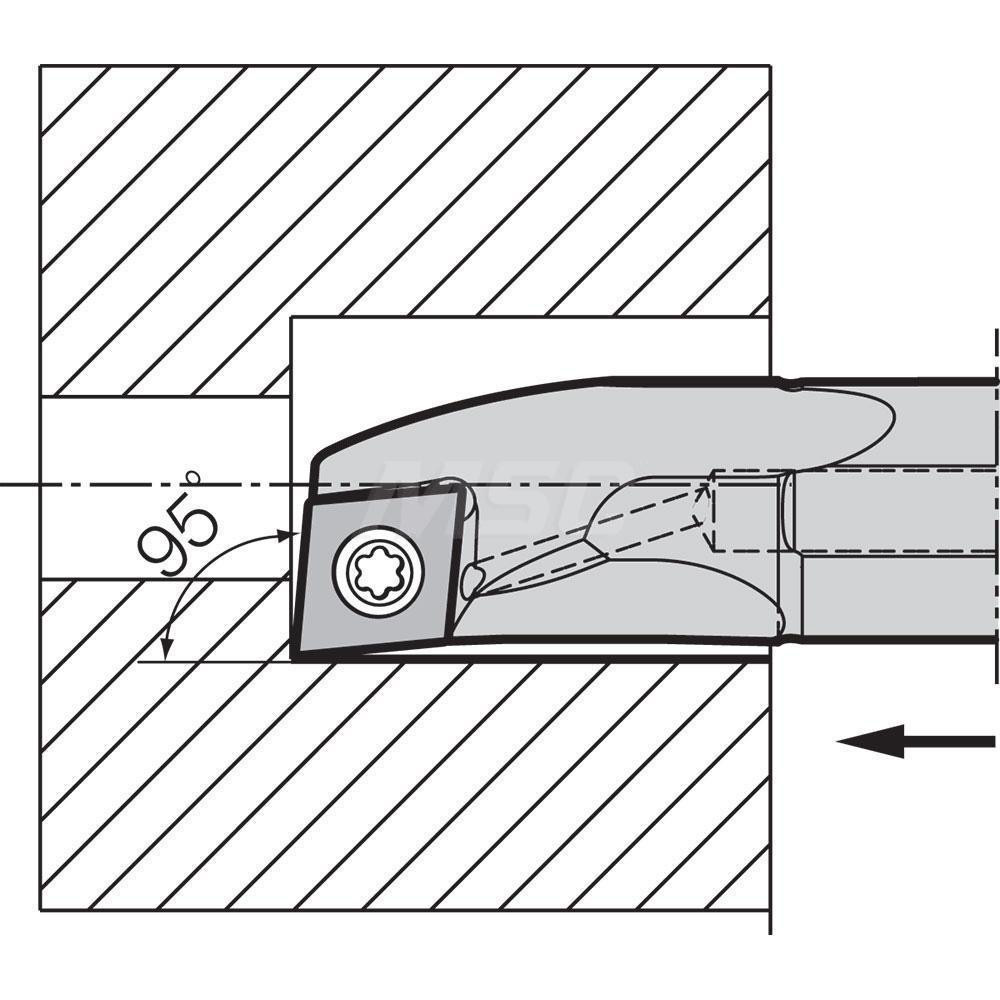

| Lead Angle | 5 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Center to Cutting Edge (mm) | 5.00 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50414580 |
