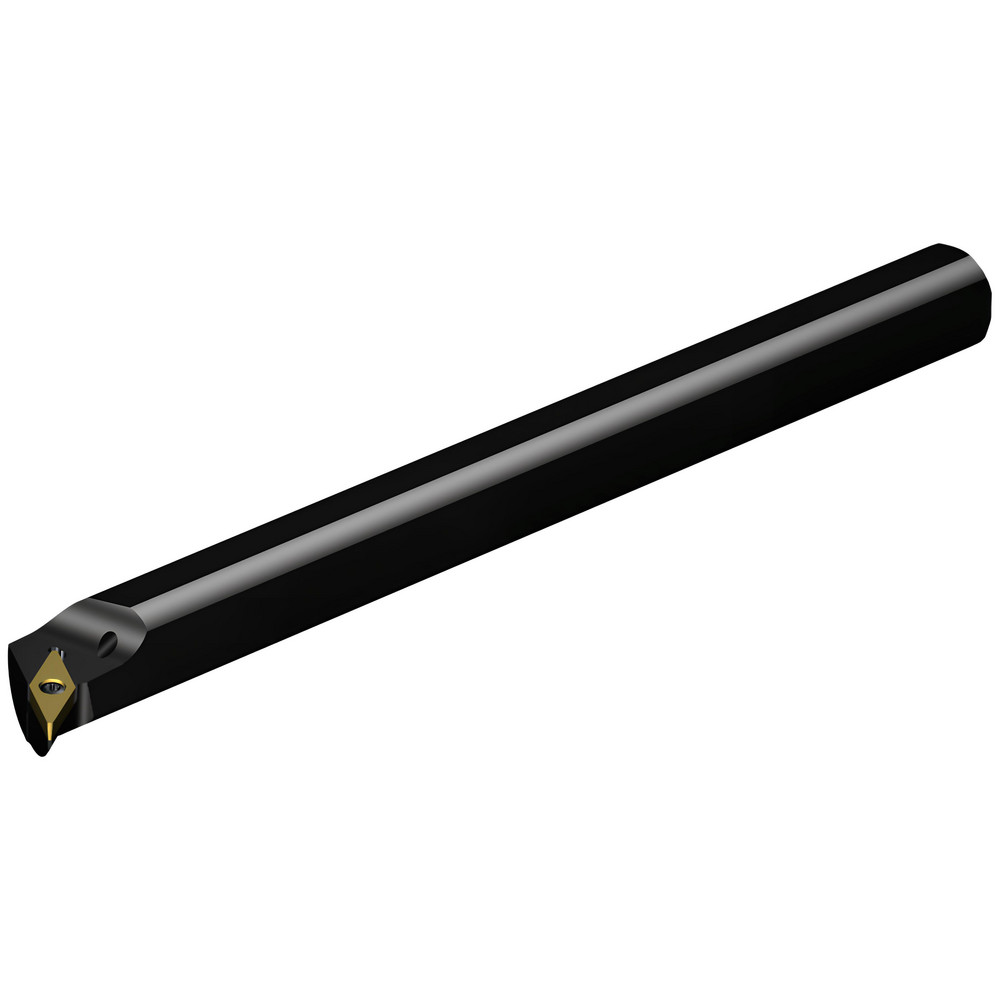

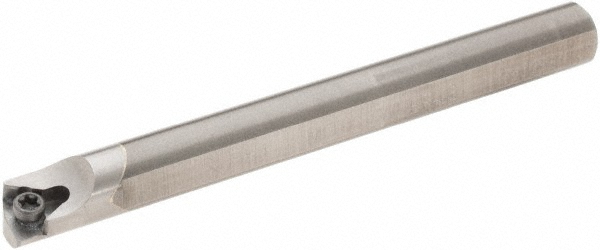

200.00 mm OAL, Screw Clamping, Uses CN..G 1204.., CNGA 1204.., CNGG 1204.., CNMA 1204.., CNMG 1204.. & CNMM 1204.. Inserts

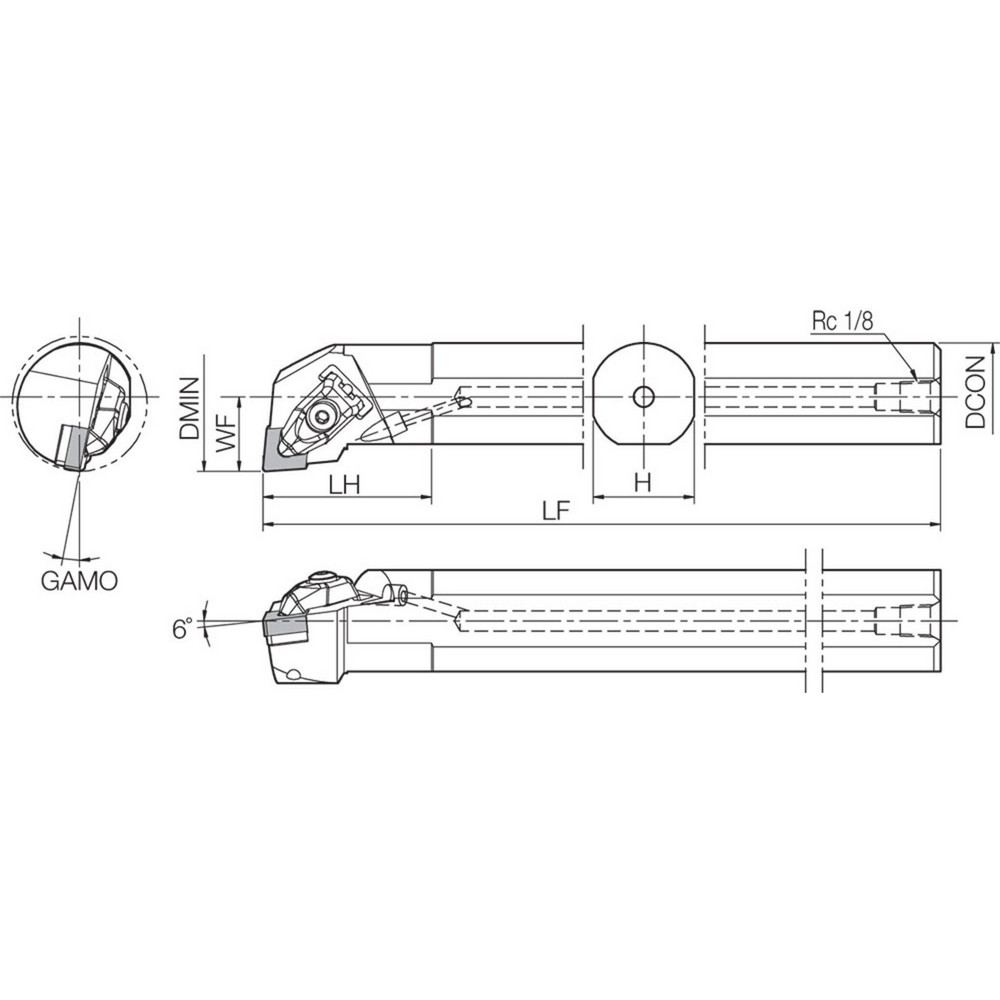

| Minimum Bore Diameter (mm) | 32.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| Maximum Bore Depth (mm) | 42.00 |
| Toolholder Style | A-DCLN |
| Tool Material | Steel |
| Insert Compatibility | CNMG 1204..; CN..G 1204..; CNMM 1204..; CNGA 1204..; CNGG 1204..; CNMA 1204.. |
| Shank Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Compatible Insert Size Code | 43 |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -11.00 |
| Lead Angle | 5 |
| Series | DBCB |
| Insert Inscribed Circle (mm) | 12.70 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

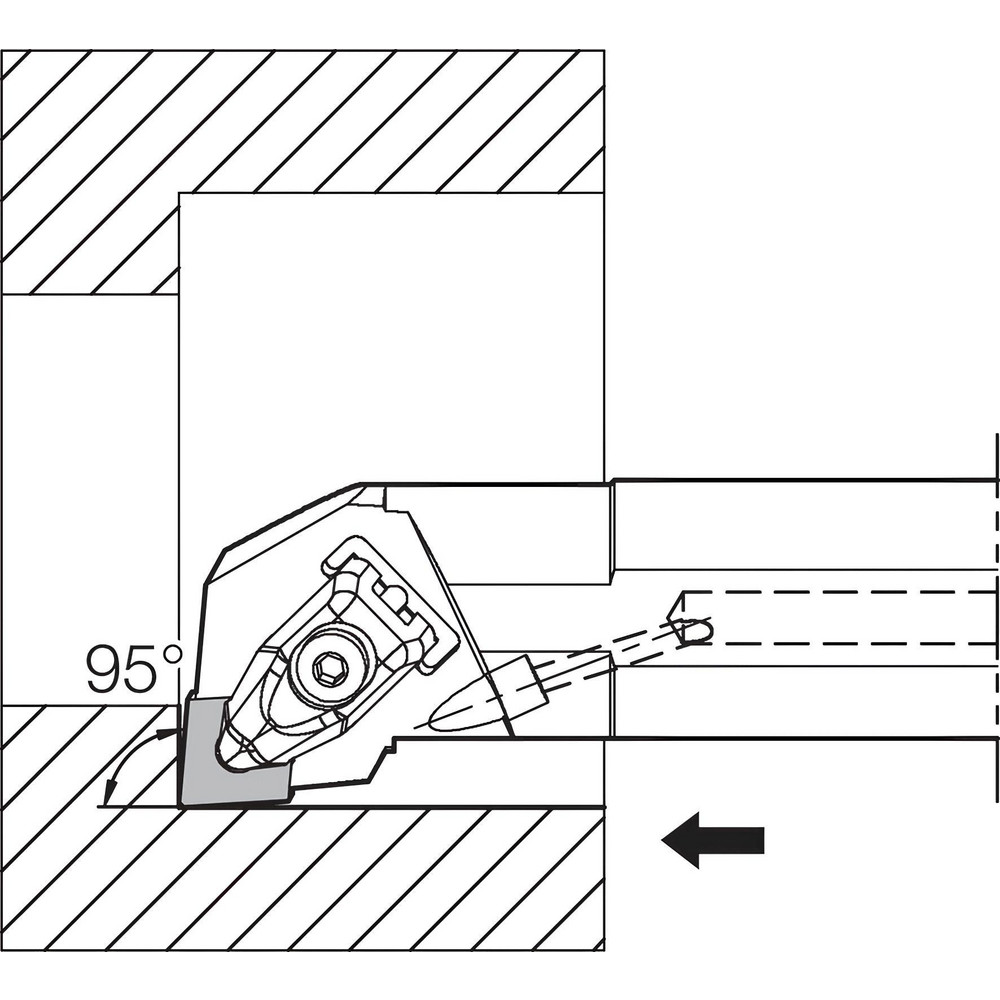

| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Center to Cutting Edge (mm) | 17.00 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 50479526 |
