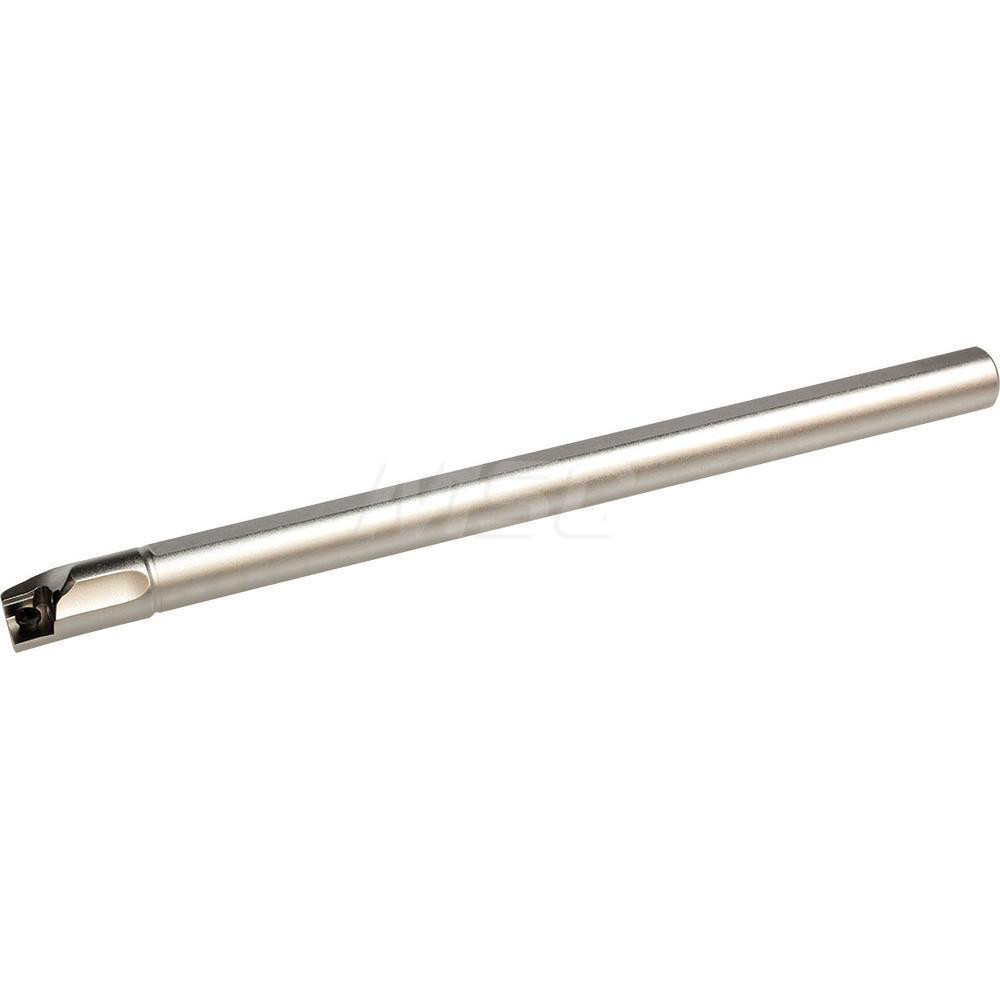

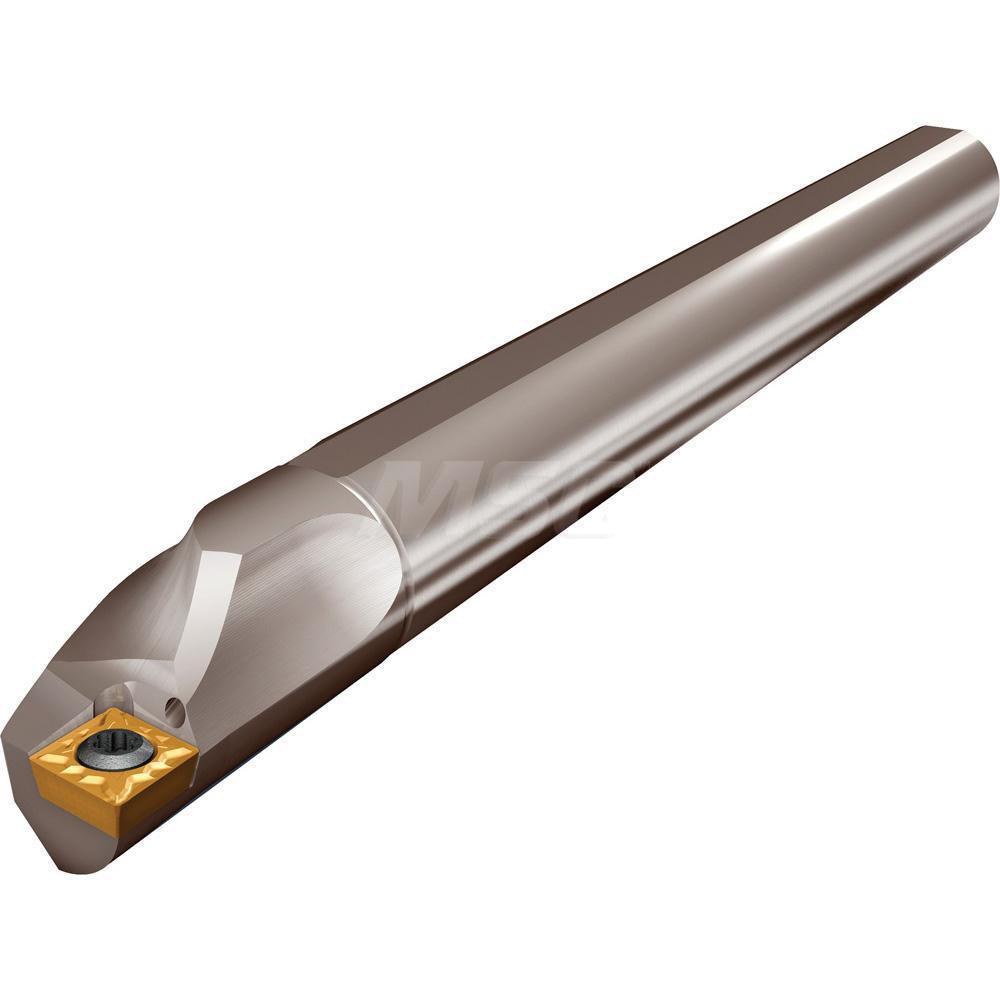

250.00 mm OAL, Screw, Uses CPGB 32.., CPMB 32.., CPMH 32.. & CPMT 32.. Inserts

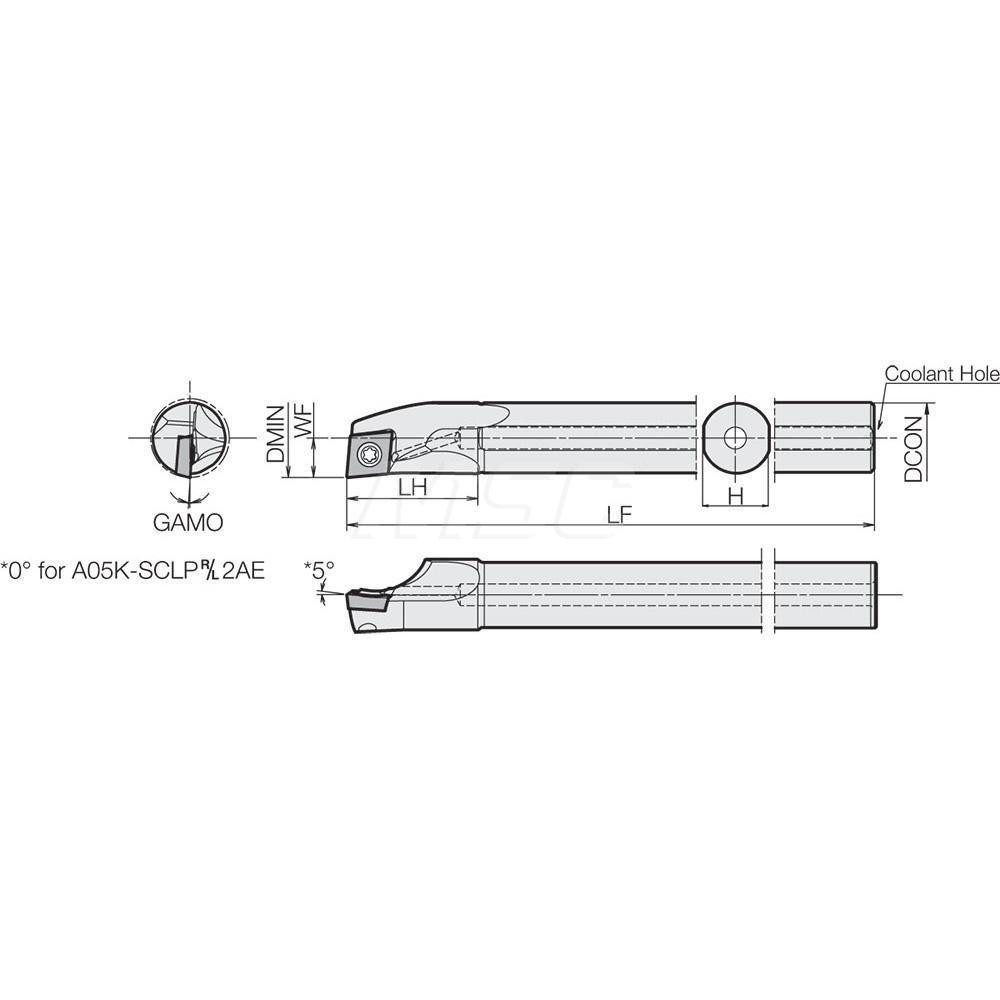

| Minimum Bore Diameter (mm) | 27.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Maximum Bore Depth (Decimal Inch) | 1.8110 |
| Maximum Bore Depth (mm) | 46.00 |
| Toolholder Style | S-SCLP-A |
| Tool Material | Steel |
| Insert Compatibility | CPMT 32..; CPMH 32..; CPGB 32..; CPMB 32.. |
| Shank Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Compatible Insert Size Code | 32 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 5 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5315 |
| Center to Cutting Edge (mm) | 13.50 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 35281849 |
