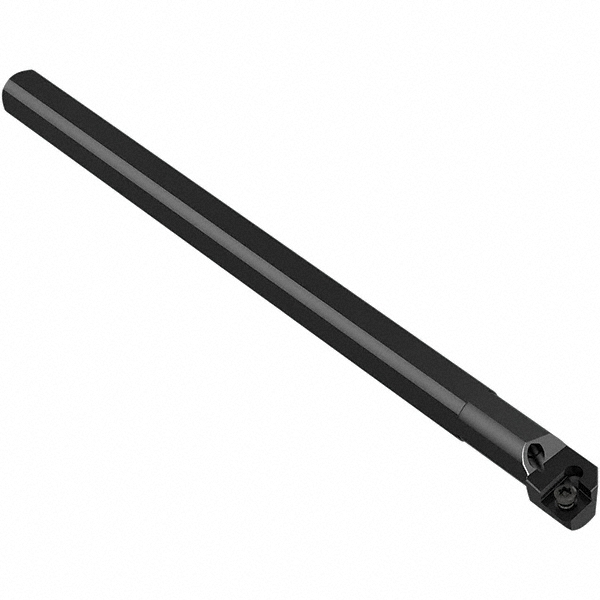

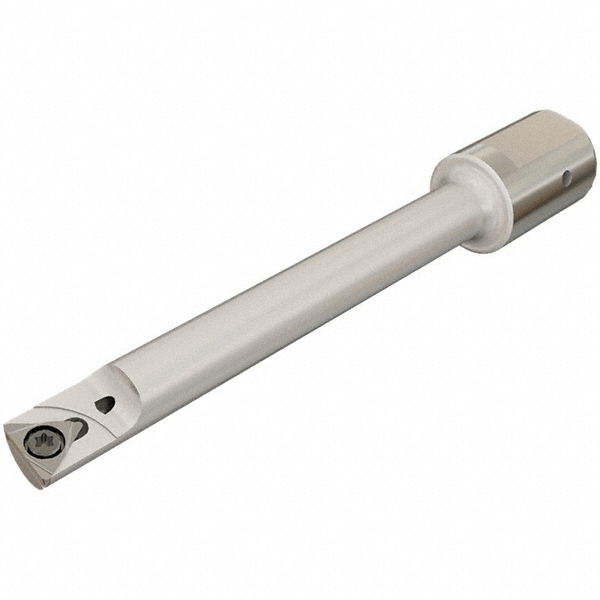

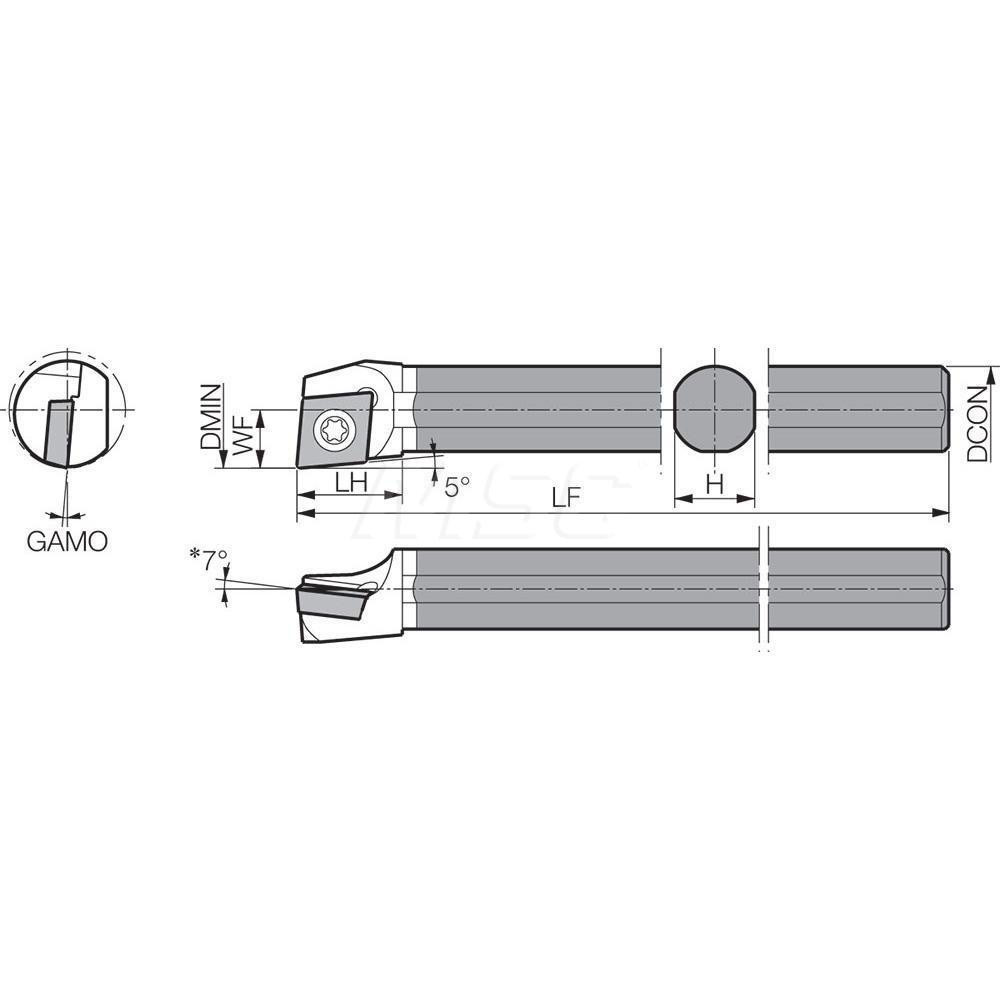

6.0000" OAL, Screw, Uses CPGB 2515.., CPMB 2515.., CPMH 2515.. & CPMT 2515.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.4720 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Toolholder Style | C...SCLP(C) |
| Tool Material | Solid Carbide |
| Insert Compatibility | CPMT 2515..; CPMB 2515..; CPMH 2515..; CPGB 2515.. |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Compatible Insert Size Code | 2515 |

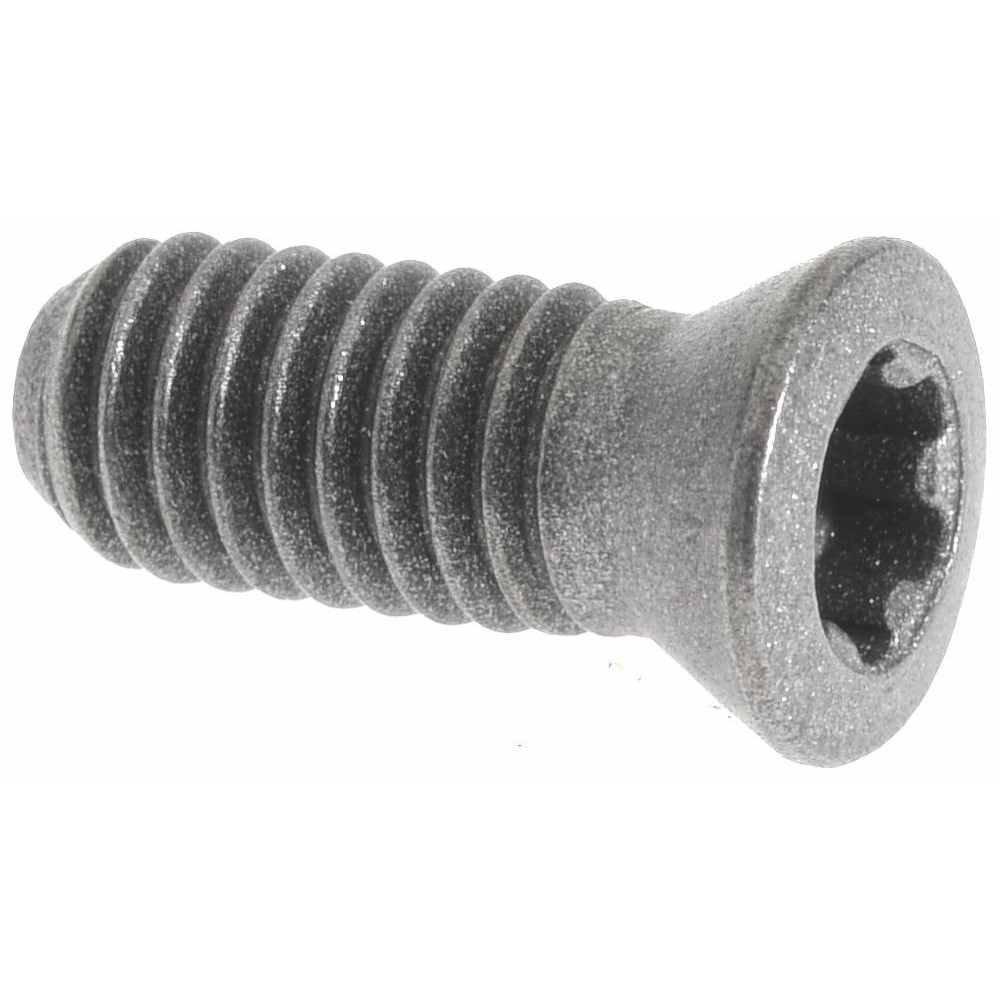

| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -5.00 |

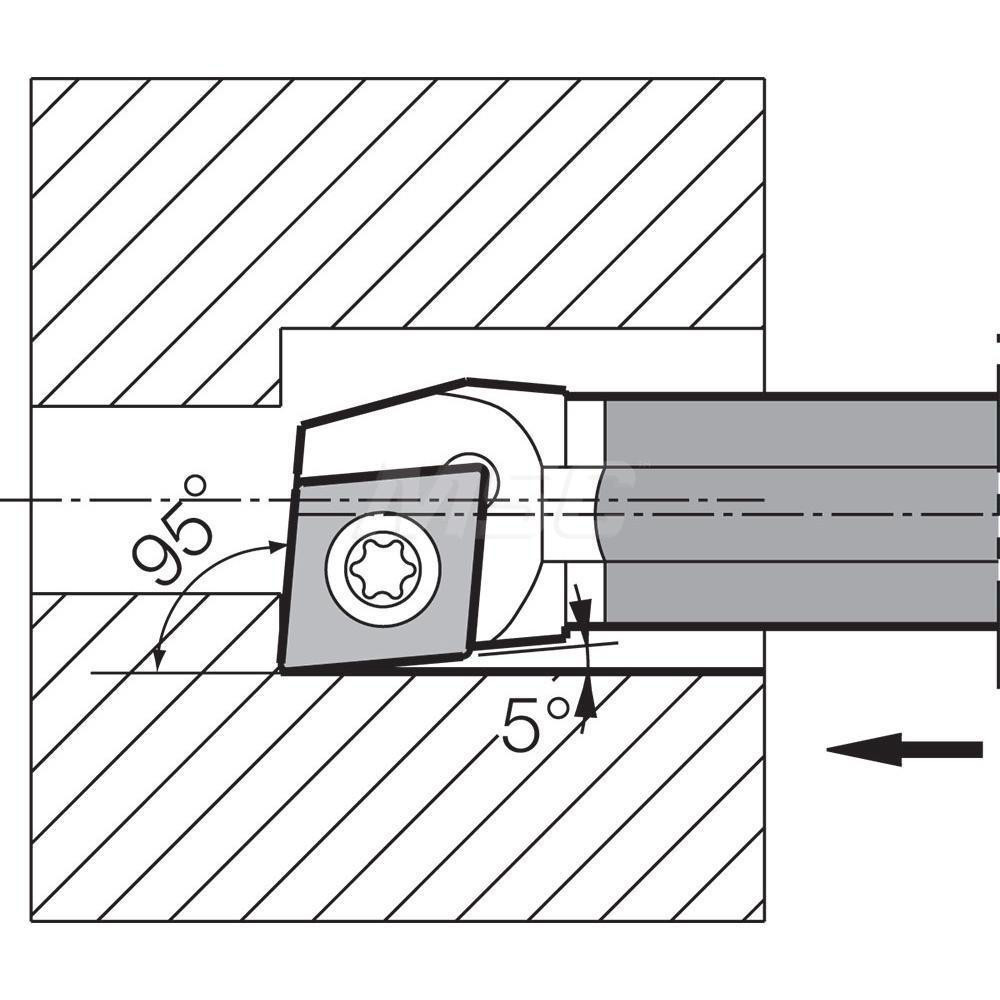

| Lead Angle | 5 |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3125 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2360 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 85061943 |
