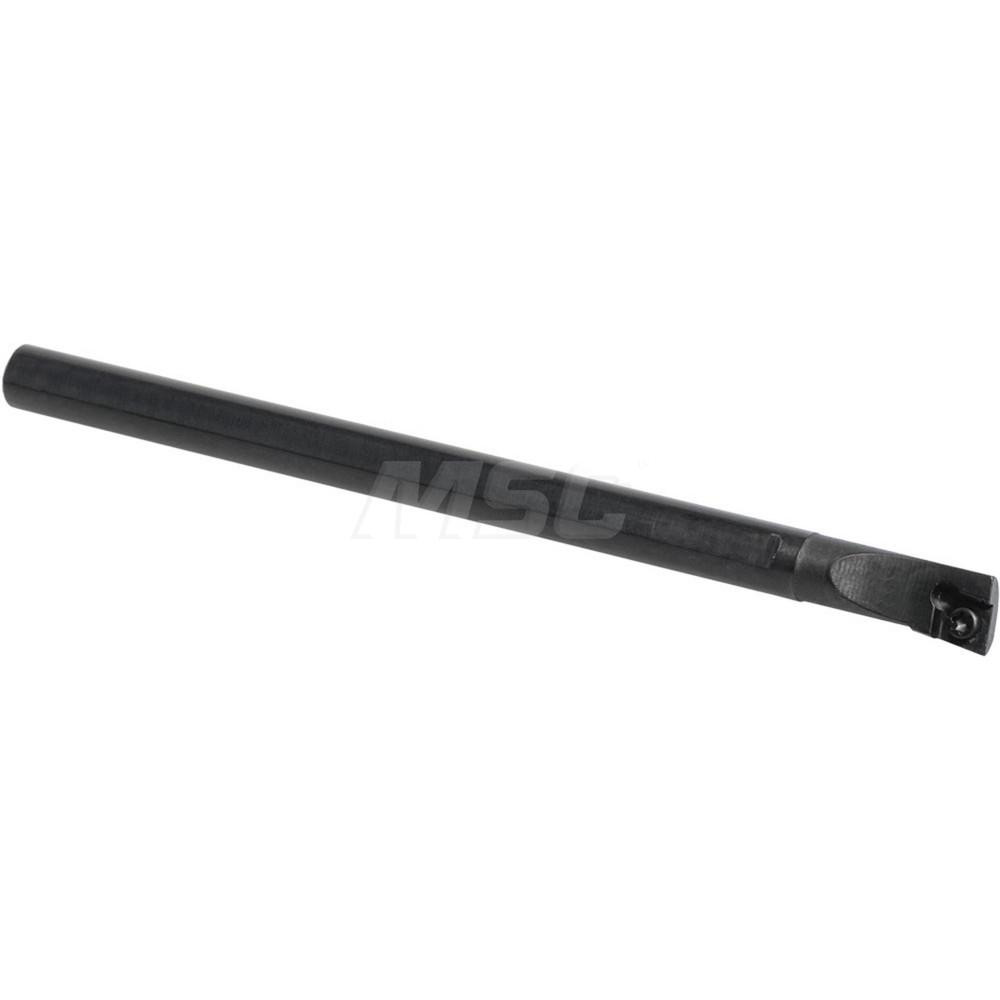

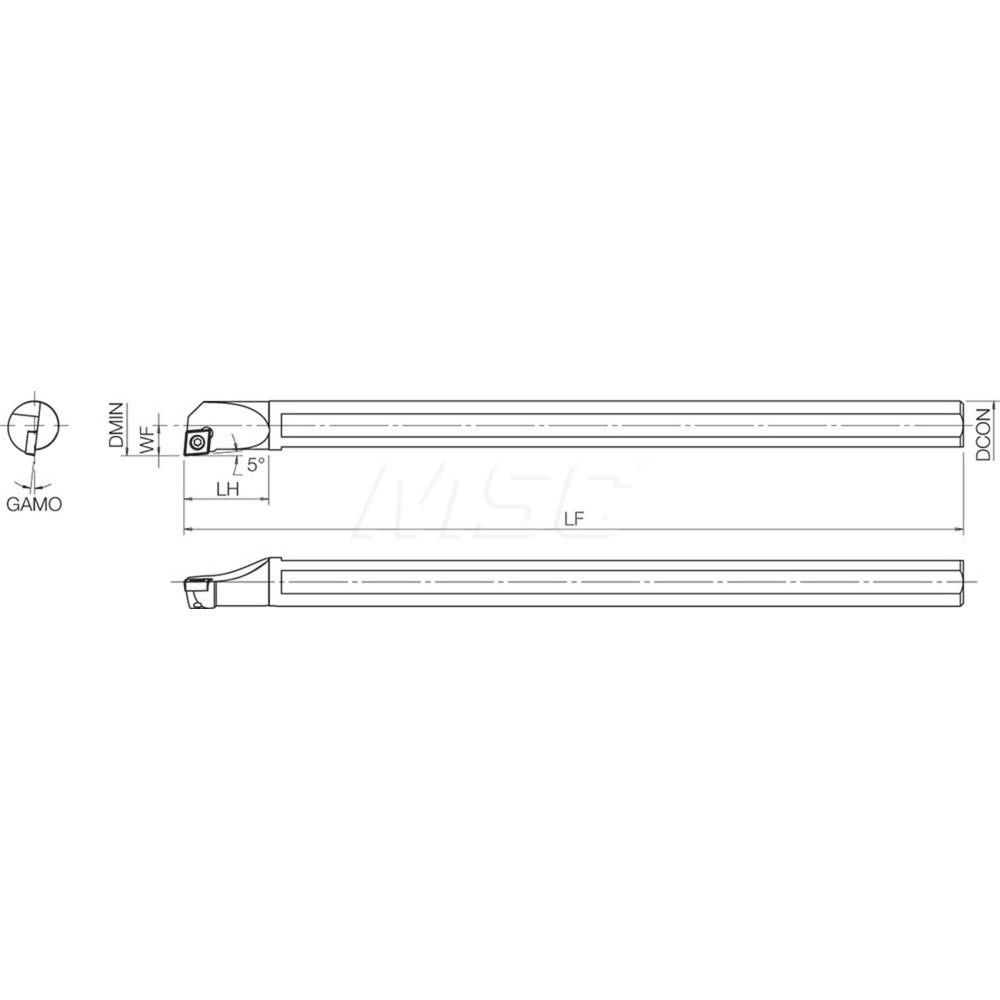

6.0000" OAL, Screw, Uses CPGB 32.., CPMB 32.., CPMH 32.. & CPMT 32.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.6300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.1800 |
| Toolholder Style | S...SCLP(C) |
| Tool Material | Steel |
| Insert Compatibility | CPMT 32..; CPMH 32..; CPGB 32..; CPMB 32.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Compatible Insert Size Code | 32 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -4.00 |

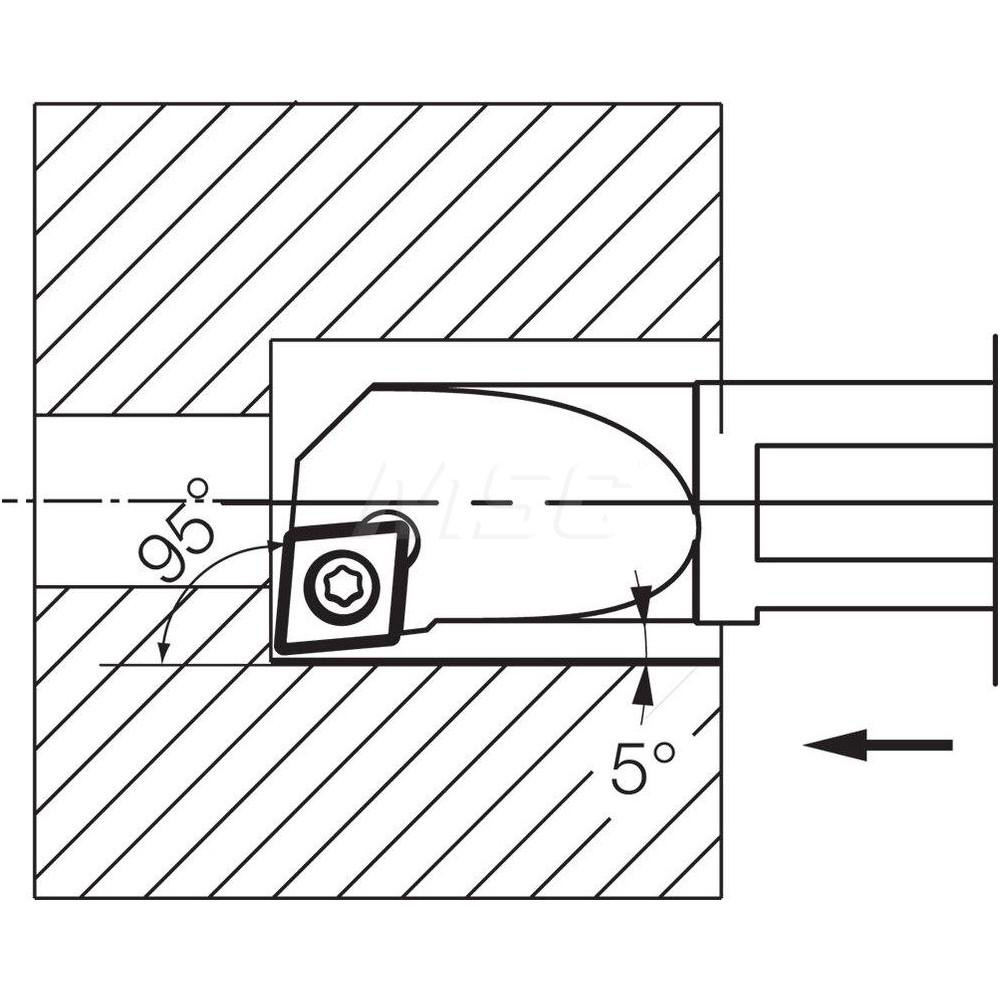

| Lead Angle | 5 |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Standards | ISO; ANSI |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 35238682 |
