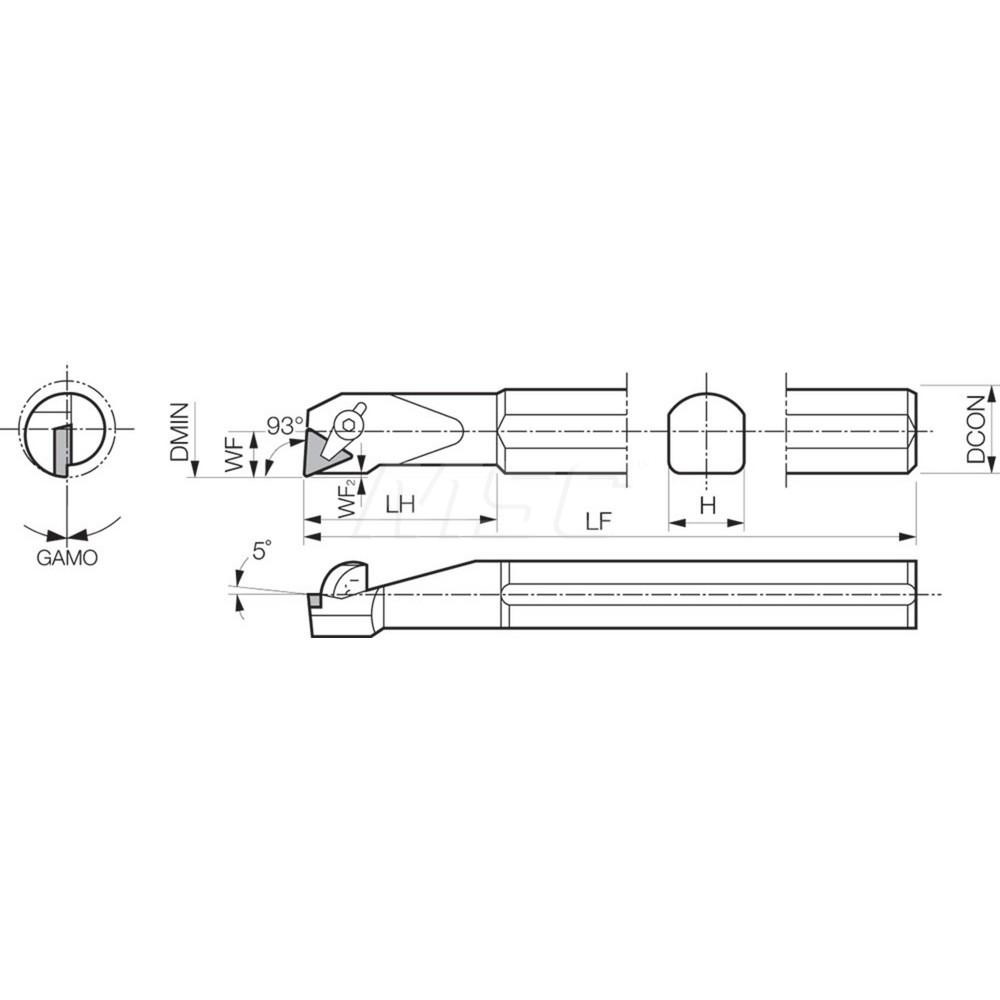

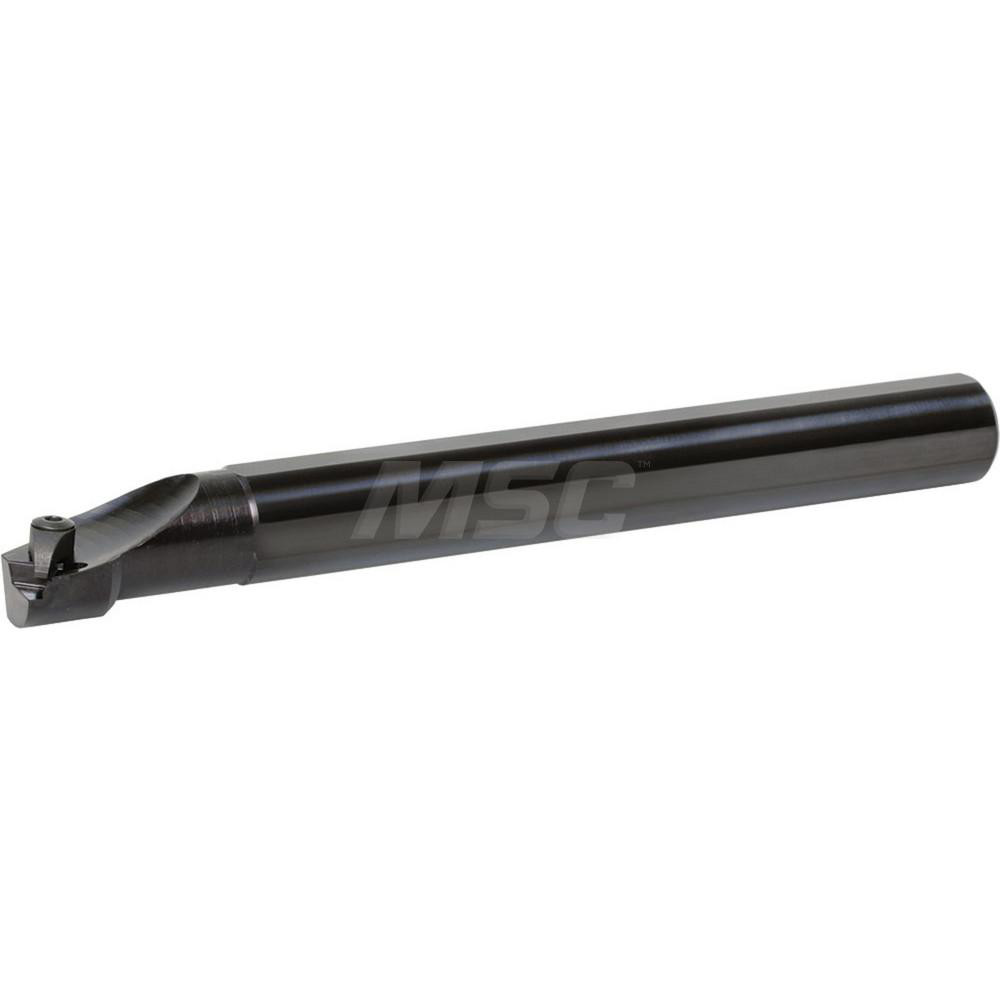

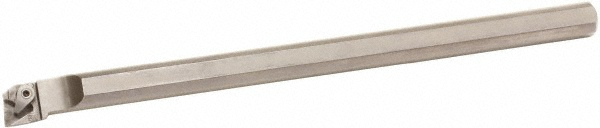

8.0000" OAL, Clamp, Uses TPG 32.., TPGR 32.., TPM 32.., TPMR 32.. & TPU 32.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.3500 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.1000 |
| Toolholder Style | S...CTUP |
| Tool Material | Steel |
| Insert Compatibility | TPMR 32..; TPU 32..; TPM 32..; TPG 32..; TPGR 32.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 32 |
| Insert Holding Method | Clamp |

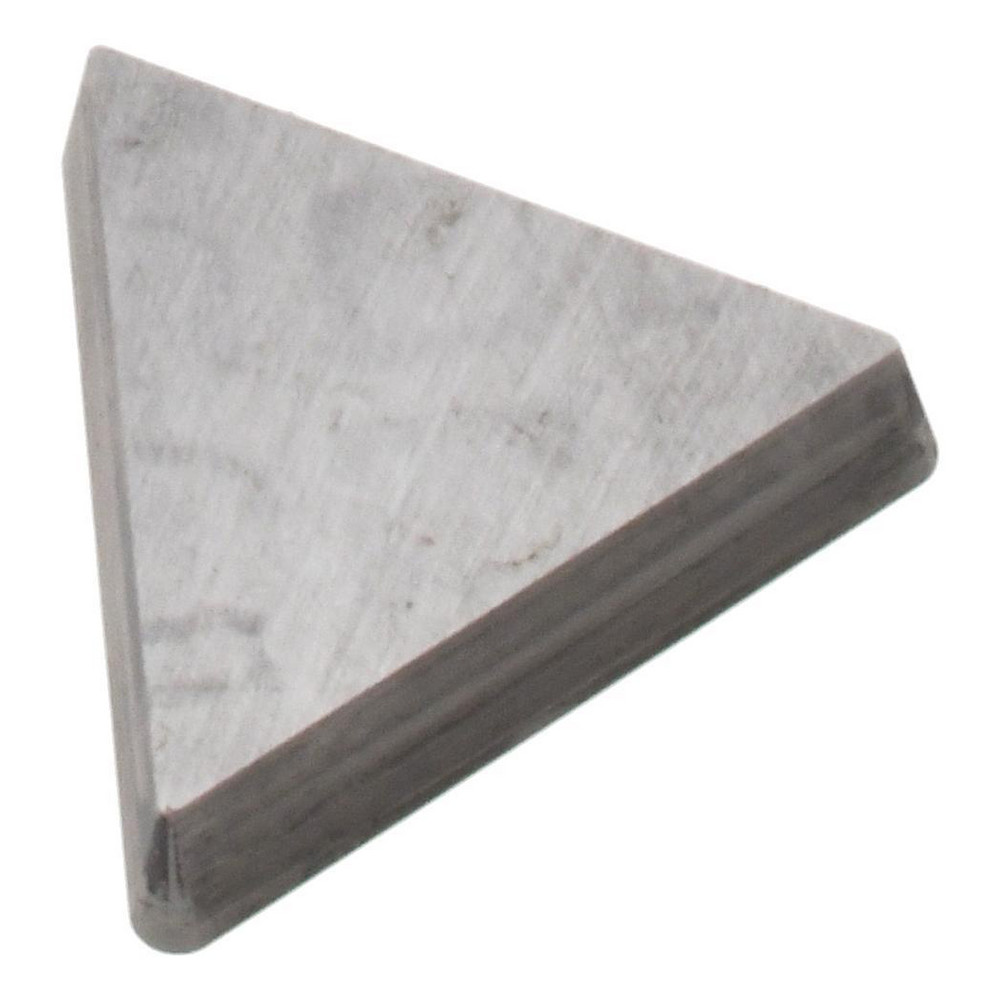

| Compatible Insert Shape | Triangle |
| Rake | Neutral |
| Rake Angle | 0.00 |

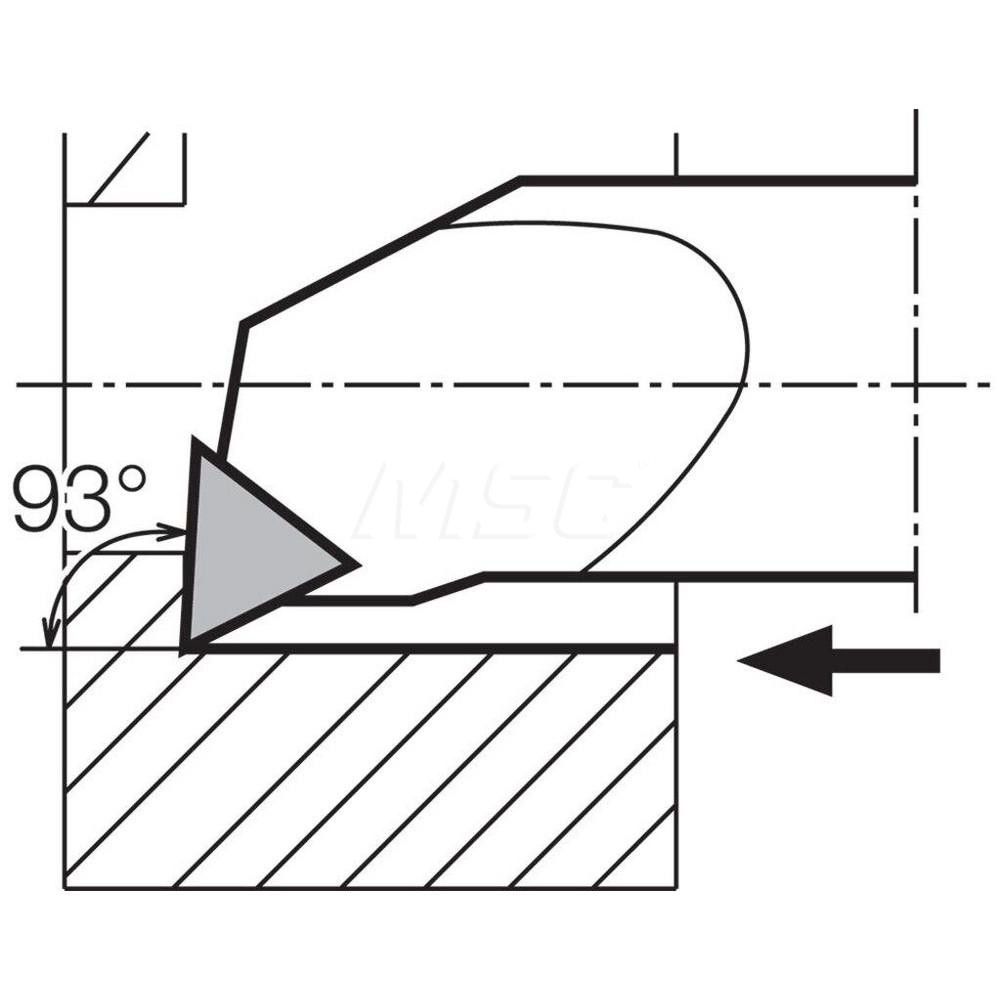

| Lead Angle | 3 |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Standards | ISO; ANSI |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 77358935 |
