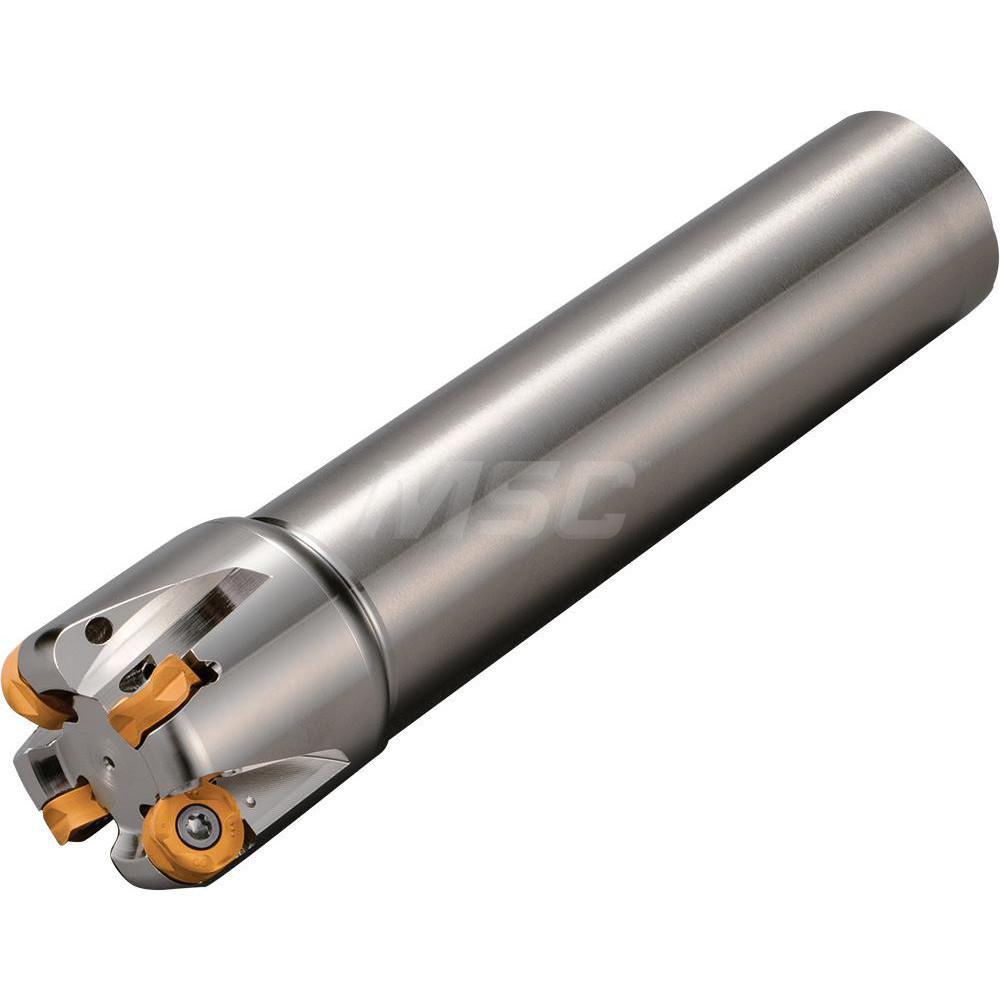

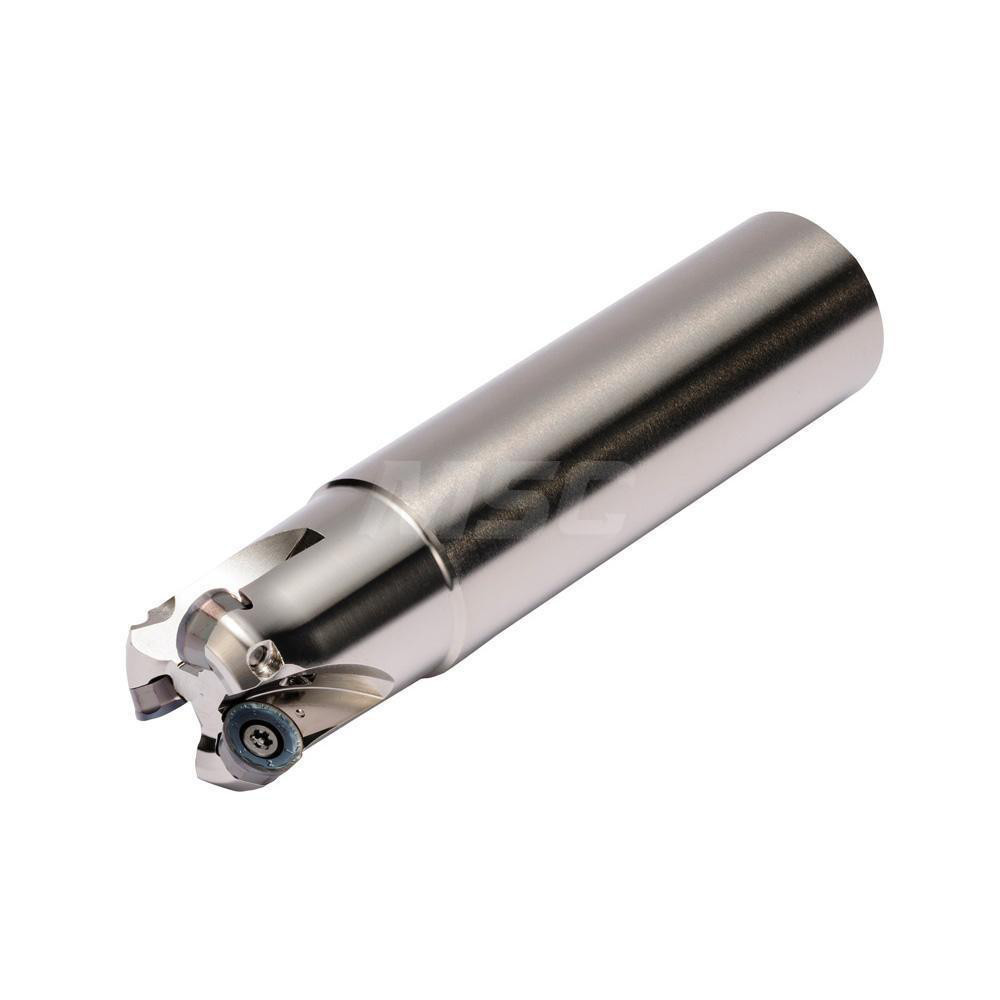

Uses 4 ROMU 12... Inserts, Cylindrical Shank
| Cutting Diameter (mm) | 40.00 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Toolholder Style | MRX; MRW |
| Shank Type | Cylindrical |
| Shank Diameter (Inch - 0 Decimals) | 1.259843 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Compatible Insert Style | ROMU 12... |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Series | RAD-8 |
| Maximum Rpm | 18800 |
| Shank Length (mm) | 120.00 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Tool Application | Milling |
| Toolholder Material | Steel |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| ISO Number | MRW40-S32-12-4T |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50392141 |
