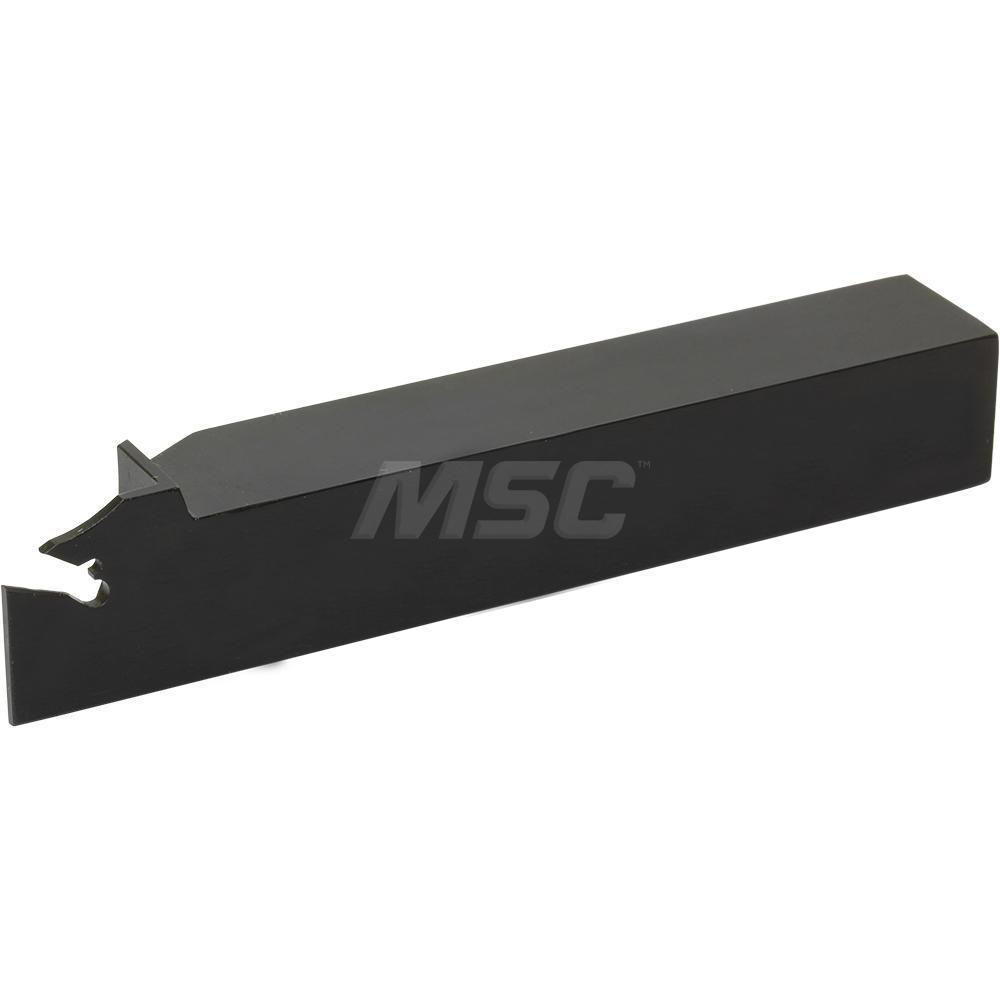

1 x 1" Shank, Uses TKN 1.6, TKN 1.6-P, TKN 2, TKN 2.4, TKN 2-P, TKN 3, TKN 3-P, TKN 4, TKN 4.8, TKN 5, TKN 6, TKN 8, TKN 9, TKR/L 1.6, TKR/L 1.6-P, TKR/L 2, TKR/L 2.4, TKR/L 2-P, TKR/L 3, TKR/L 3-P, TKR/L 4, TKR/L 5 Inserts, Series KTKH
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.5500 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1000 |
| Toolholder Style | KTKHR |
| Multi-use Tool | No |
| Compatible Insert Size Code | TKN 1.6-P; TKN 3; TKN 4; TKR/L 2; TKN 2; TKR/L 3; TKN 3-P; TKR/L 1.6; TKR/L 4; TKN 2-P; TKN 8; TKR/L 2.4; TKR/L 5; TKN 2.4; TKN 5; TKN 6; TKR/L 2-P; TKN 1.6; TKN 9; TKR/L 3-P; TKN 4.8; TKR/L 1.6-P |

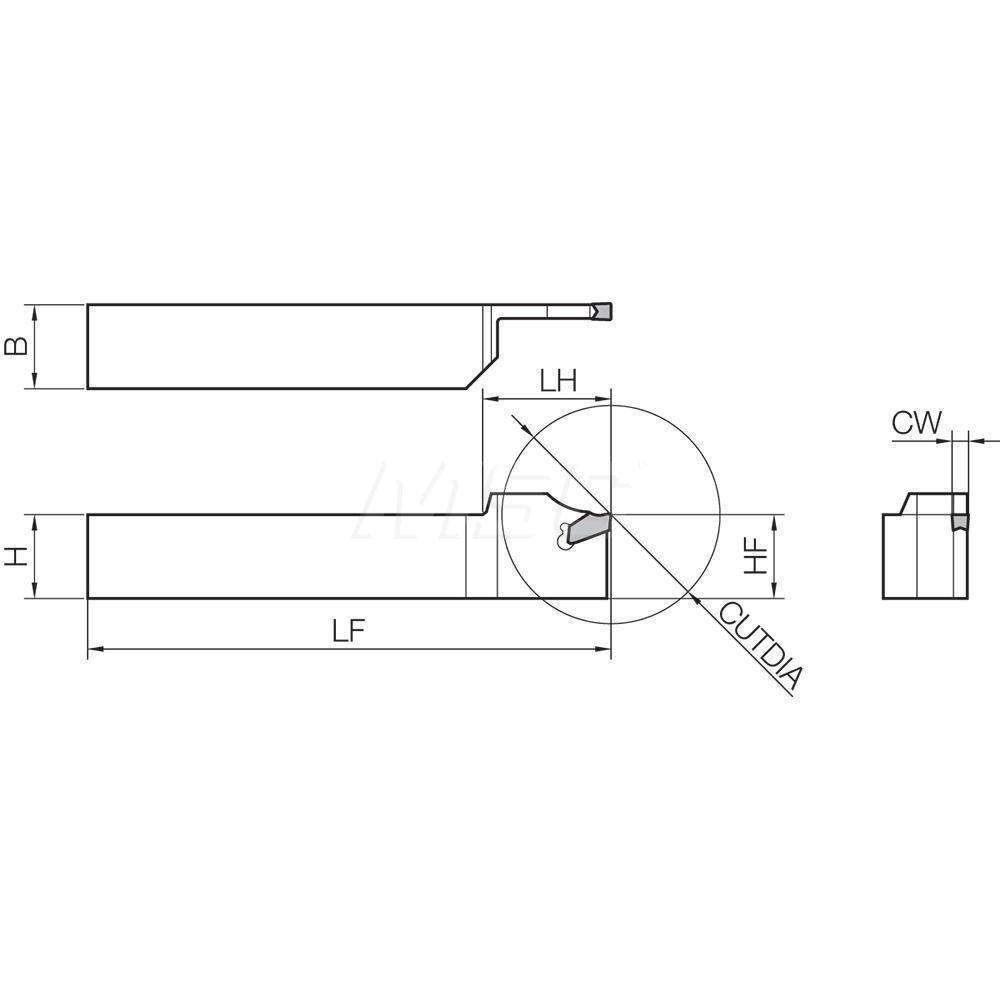

| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.4400 |
| Series | KTKH |

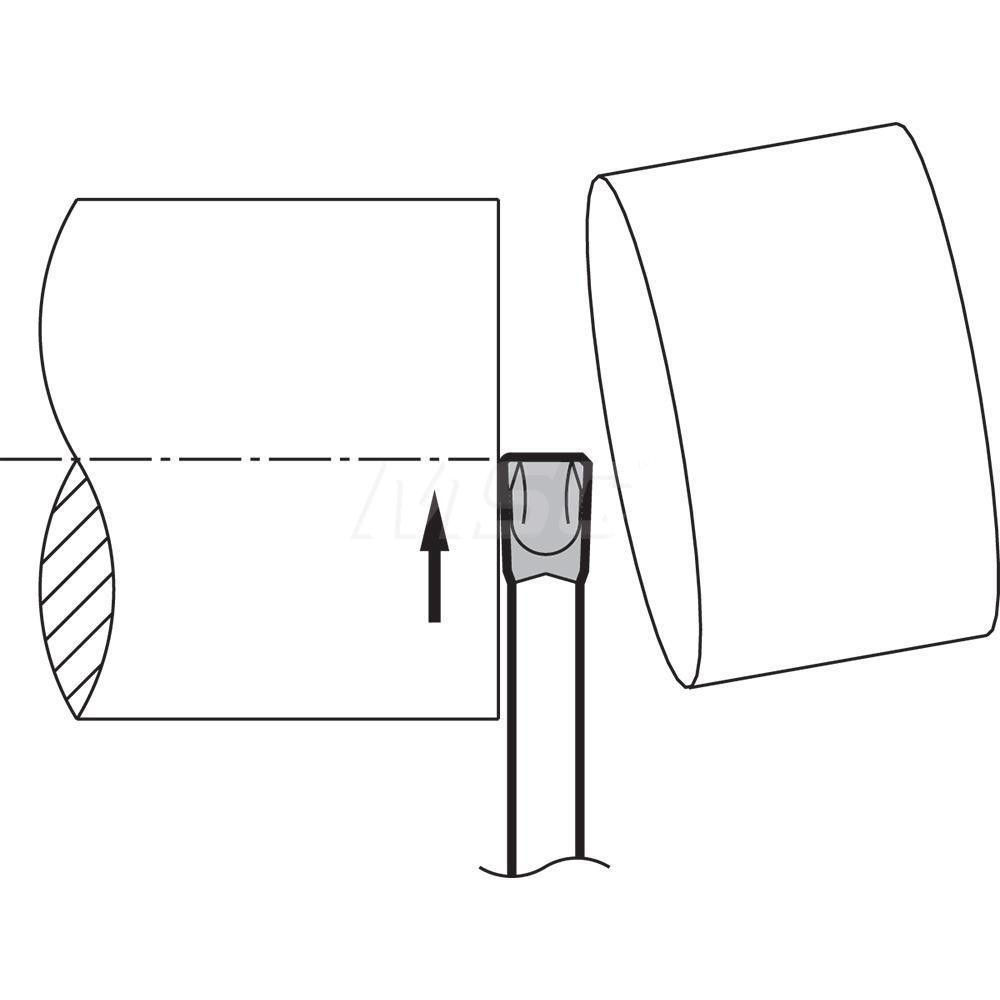

| Cutting Tool Application | Cut-Off |
| Head Height (Decimal Inch) | 1.2000 |
| Head Length (Decimal Inch) | 1.5600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Minimum Insert Width (Decimal Inch) | 0.1890 |
| Maximum Insert Width (Decimal Inch) | 0.2010 |
| Height to Shank Top (Decimal Inch) | 1.0000 |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | TKN 1.6-P; TKN 3; TKN 4; TKR/L 2; TKN 2; TKR/L 3; TKN 3-P; TKR/L 1.6; TKR/L 4; TKN 2-P; TKN 8; TKR/L 2.4; TKR/L 5; TKN 2.4; TKN 5; TKN 6; TKR/L 2-P; TKN 1.6; TKN 9; TKR/L 3-P; TKN 4.8; TKR/L 1.6-P |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 50417104 |
