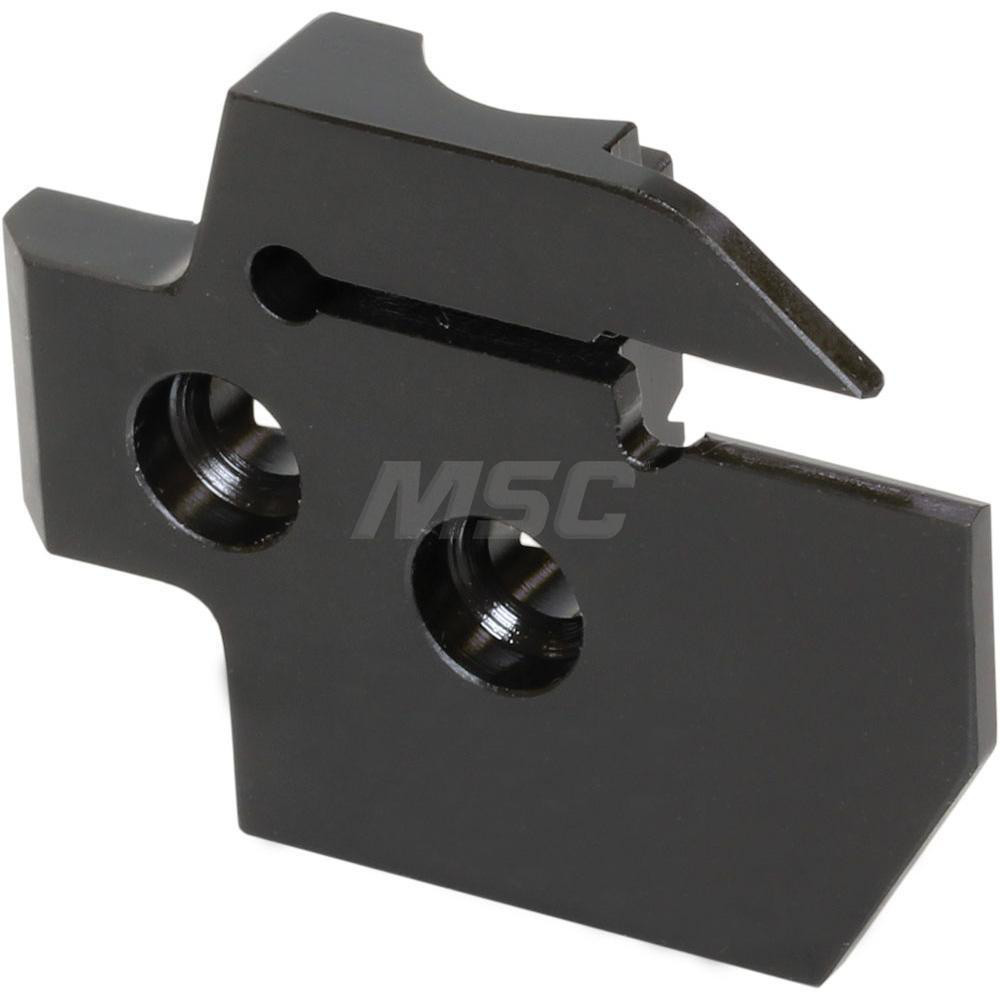

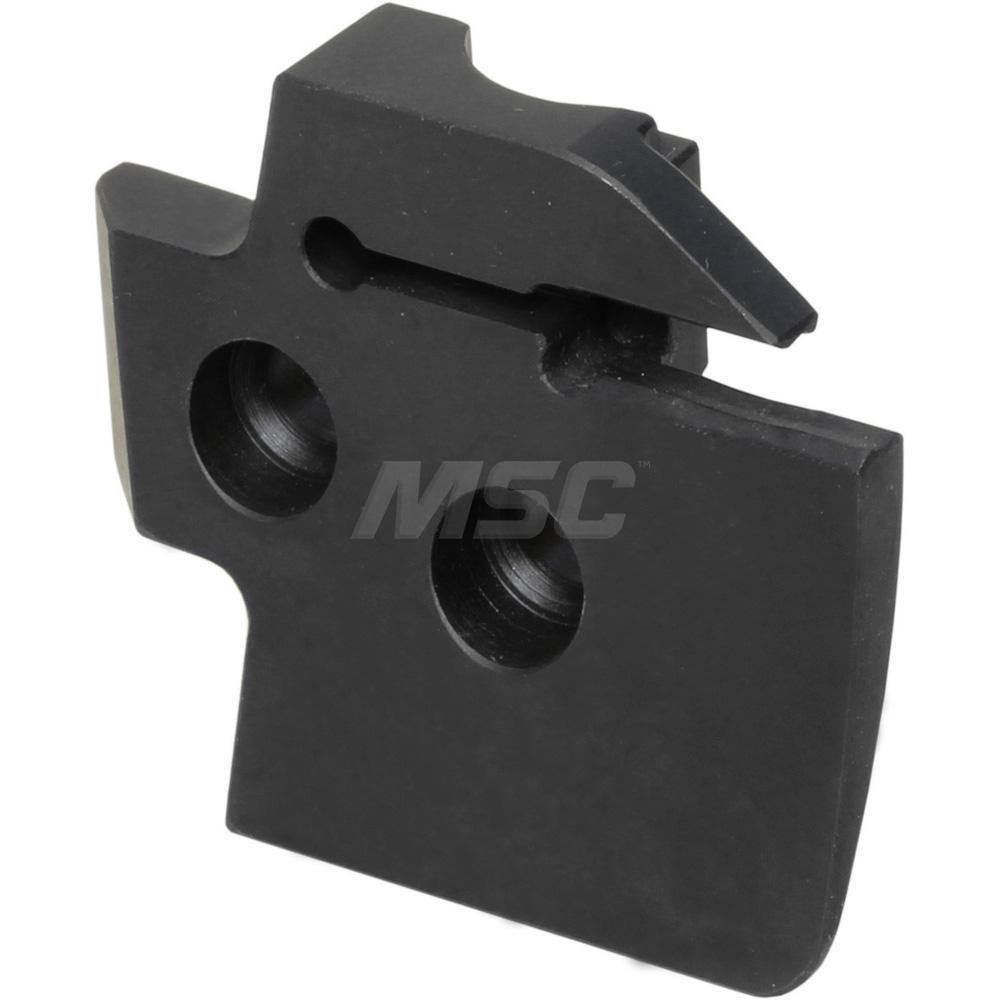

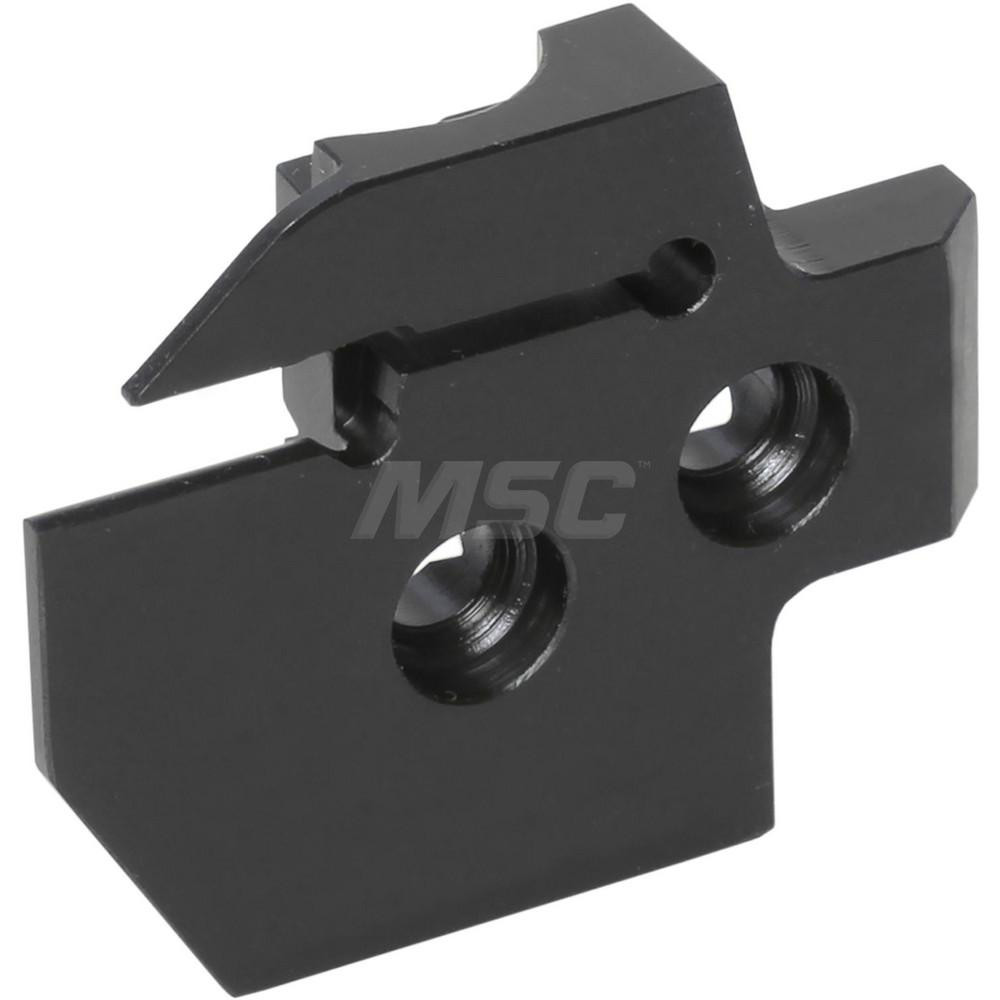

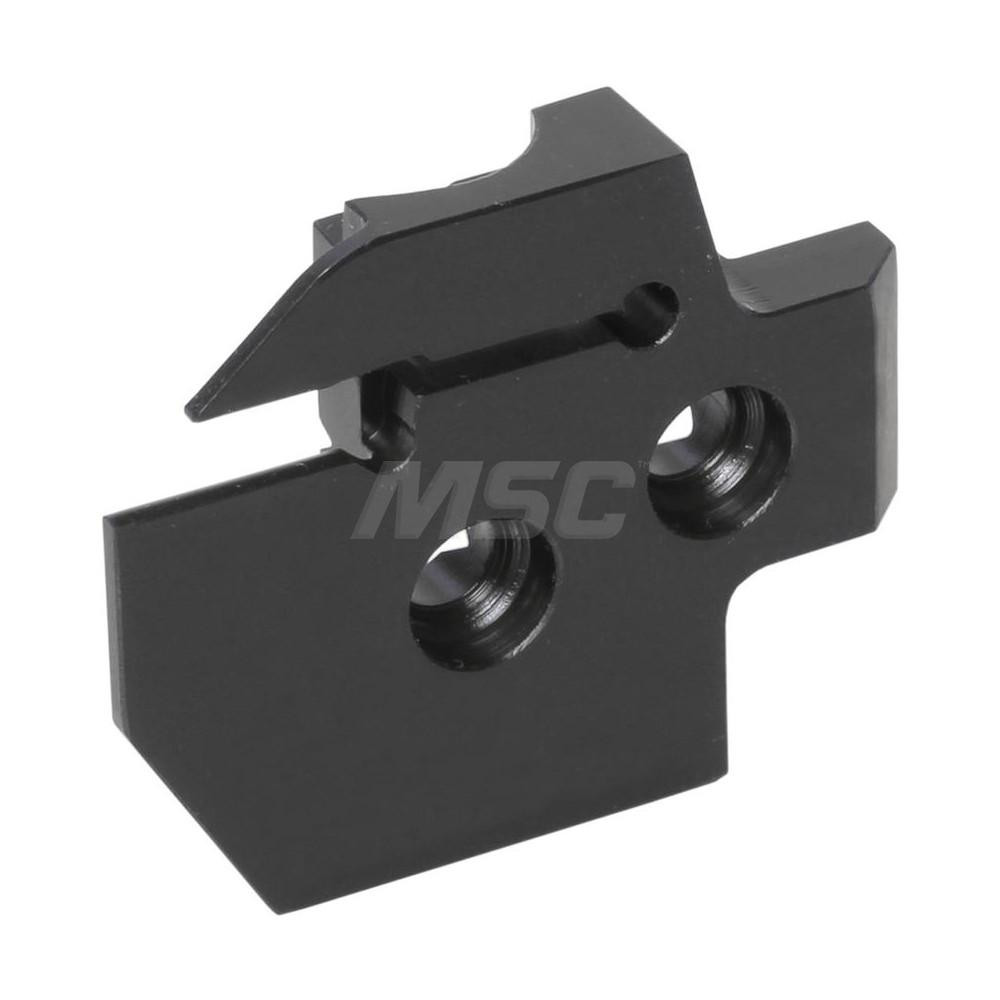

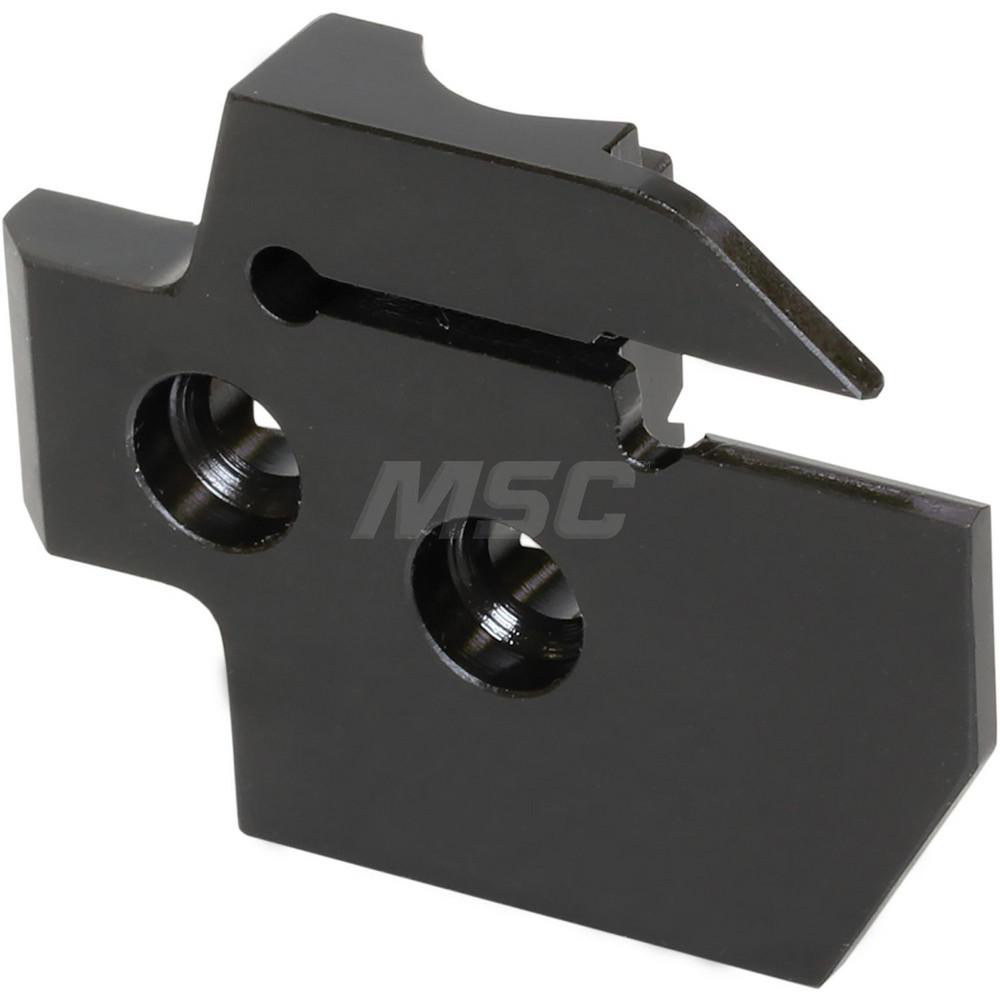

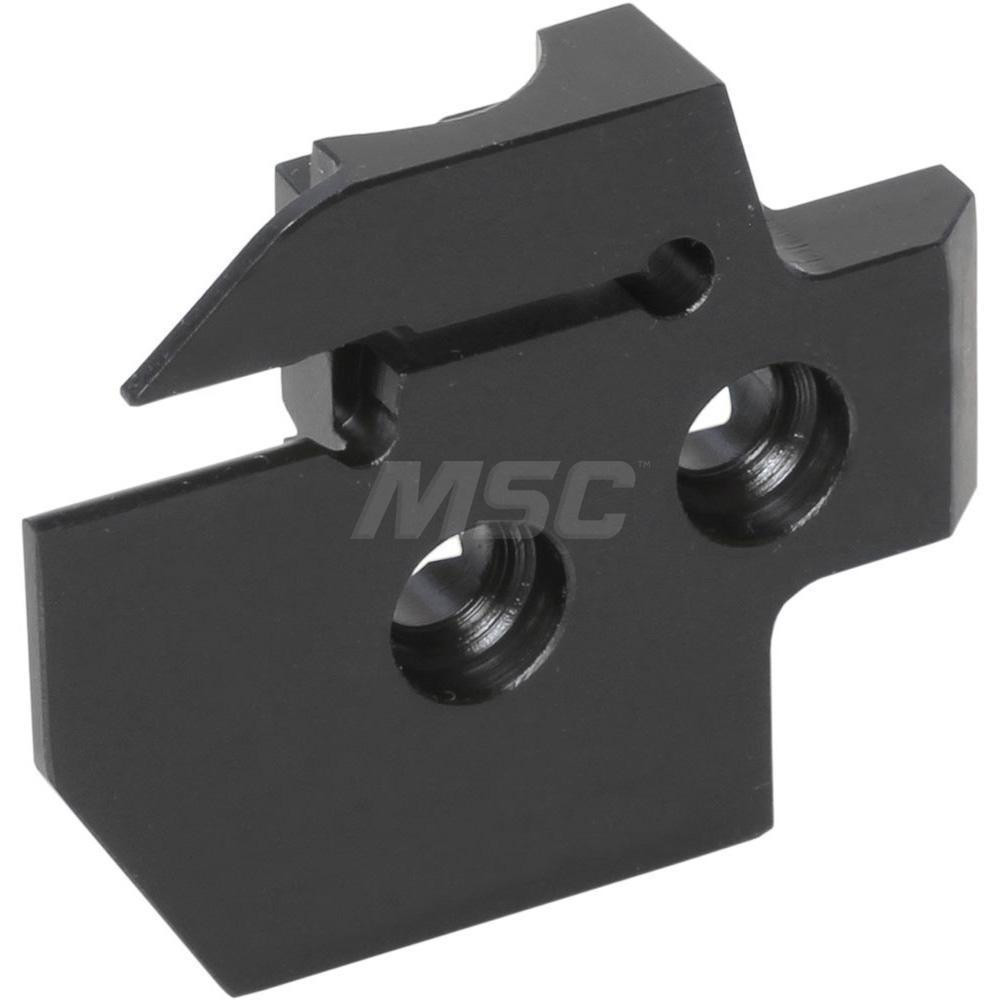

0.795" Max Depth of Cut, Uses GD..20N-030.. & GD..20N-040.. Inserts
| Cutting Direction | Left Hand |
|---|---|
| Minimum Groove Width (Decimal Inch) | 0.0900 |
| Blade Style | KGD |

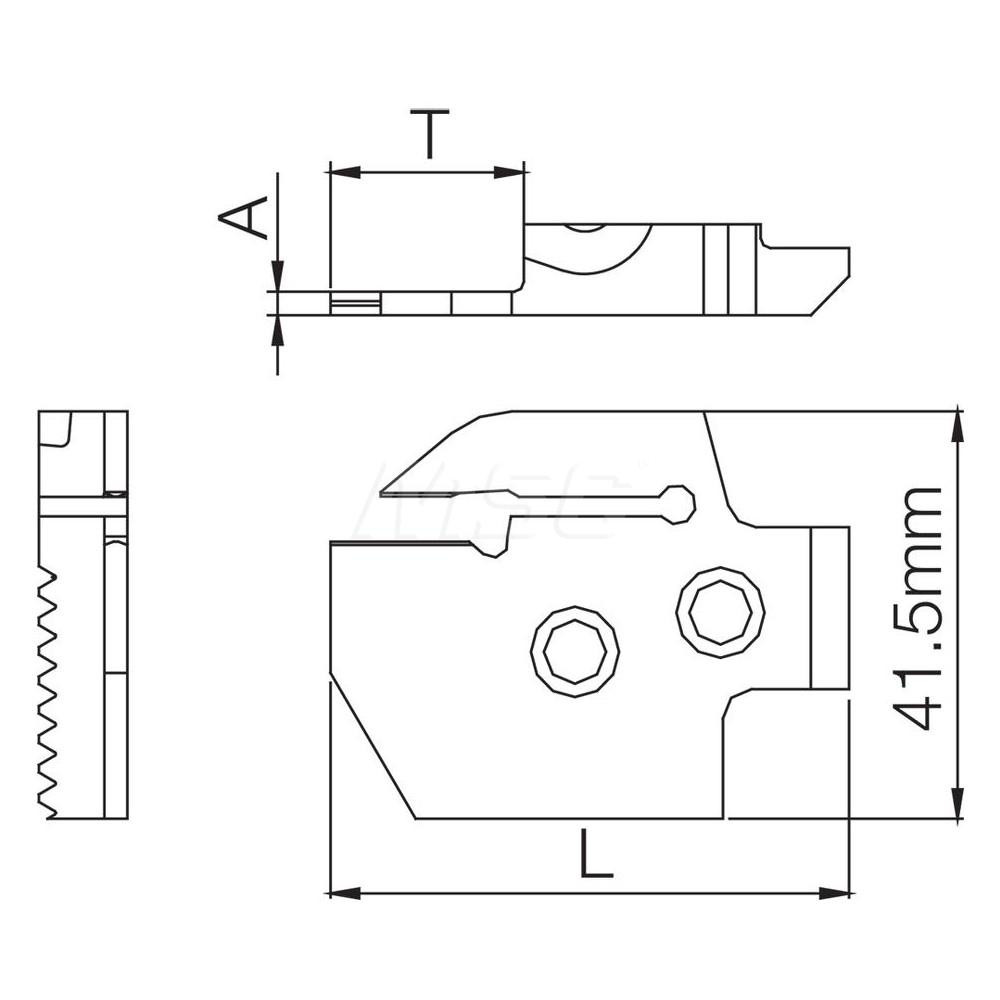

| Blade Height (mm) | 41.50 |
| Blade Height (Decimal Inch) | 1.6339 |
| Maximum Depth of Cut (Decimal Inch) | 0.7950 |

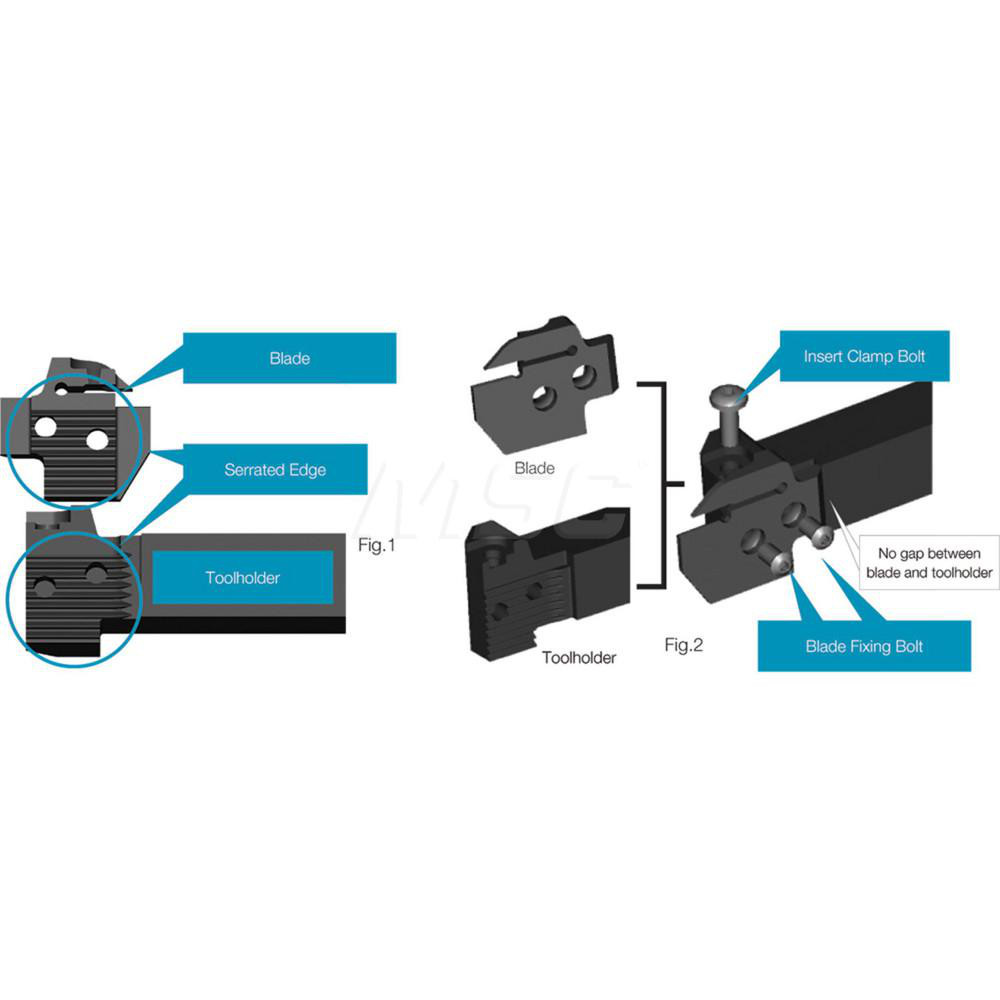

| Insert Holding Method | Screw |
| Maximum Insert Width (Decimal Inch) | 0.1570 |
| Compatible Insert Style | GD..20N-030..; GD..20N-040.. |
| Series | KGD |
| Overall Length (mm) | 53.20 |
| Overall Length (Decimal Inch) | 2.0945 |

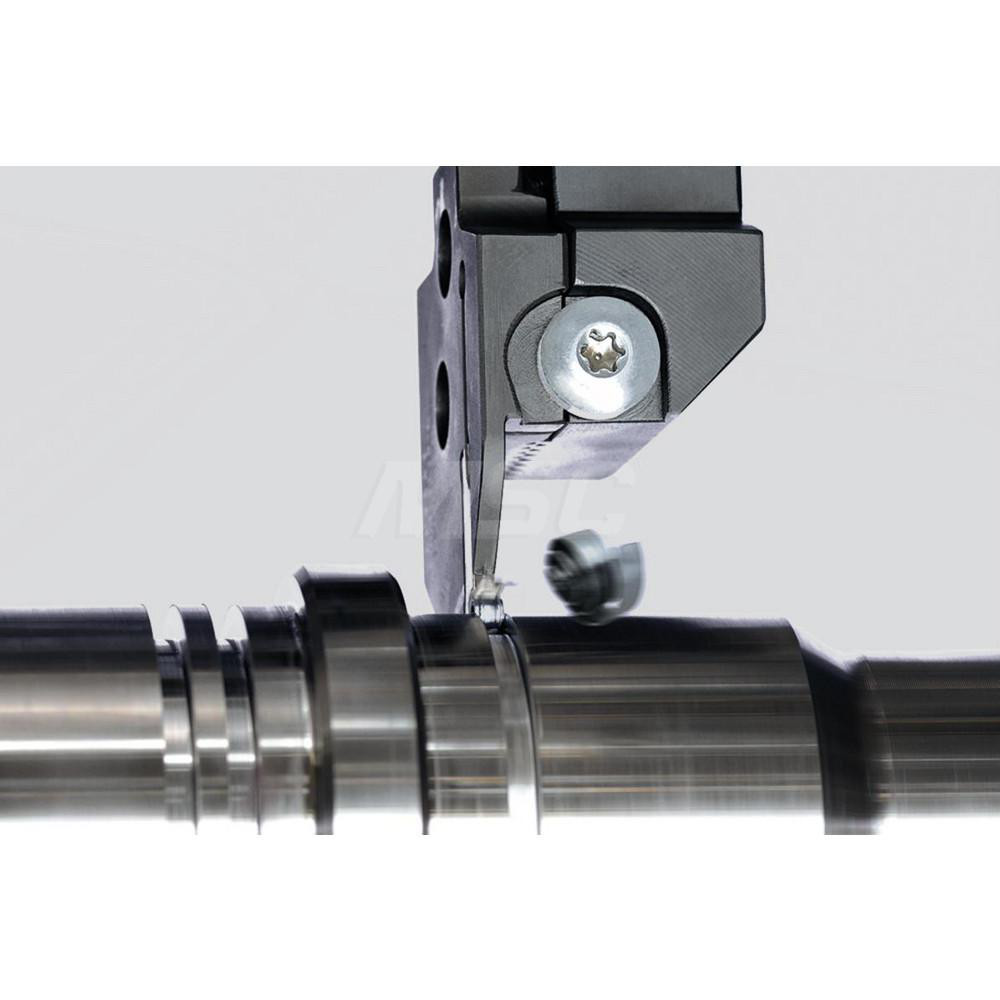

| Cutting Tool Application | Grooving; Cut-Off |
| Blade Overall Length (Decimal Inch) | 2.0900 |
| Manufacturers Catalog Number | KGDL3T20C |
| Complete Insert Compatibility | GDFM 4020N-040GM; GDFM 5020N-040DM; GDFM 3020N-030DM; GDFM 6020N-040DM; GDFMS 4020N-040DM; GDFMS 6020N-040DM; GDFM 6020N-040GM; GDFM 3020N-030GM; GDFM 4020N-040DM; GDFMS 3020N-030DM; GDFMS 5020N-040DM; GDFM 5020N-040GM |
| MSC/Manufacturer Number | 8834776 |
| Blade Material | Steel |
| UNSPSC Code | 23241600 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 50479880 |
