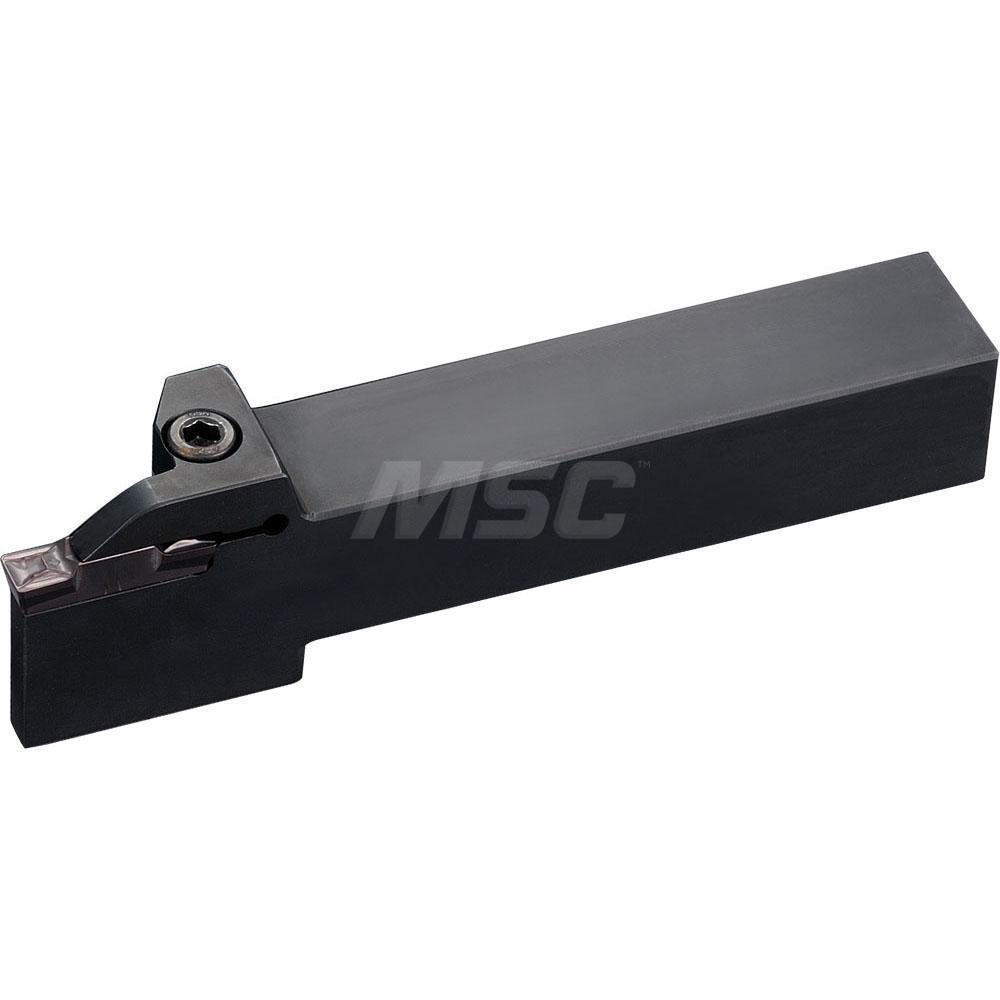

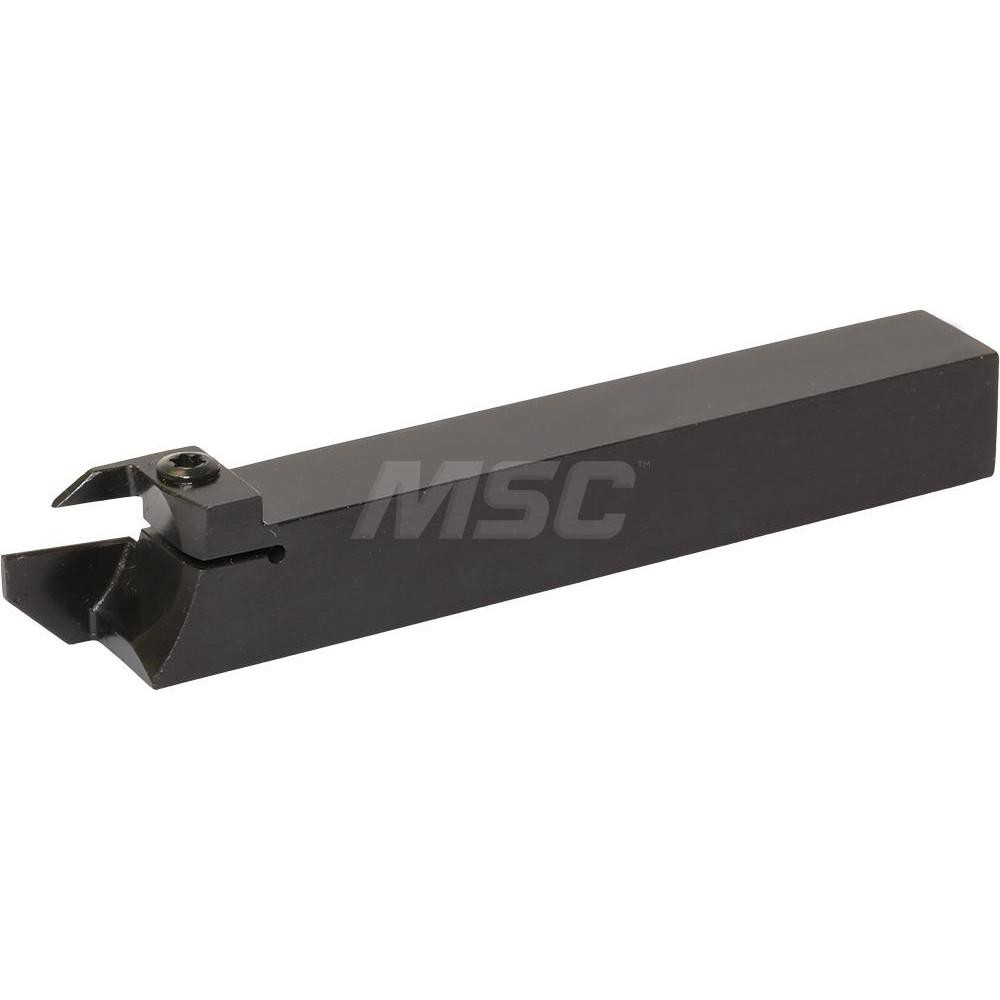

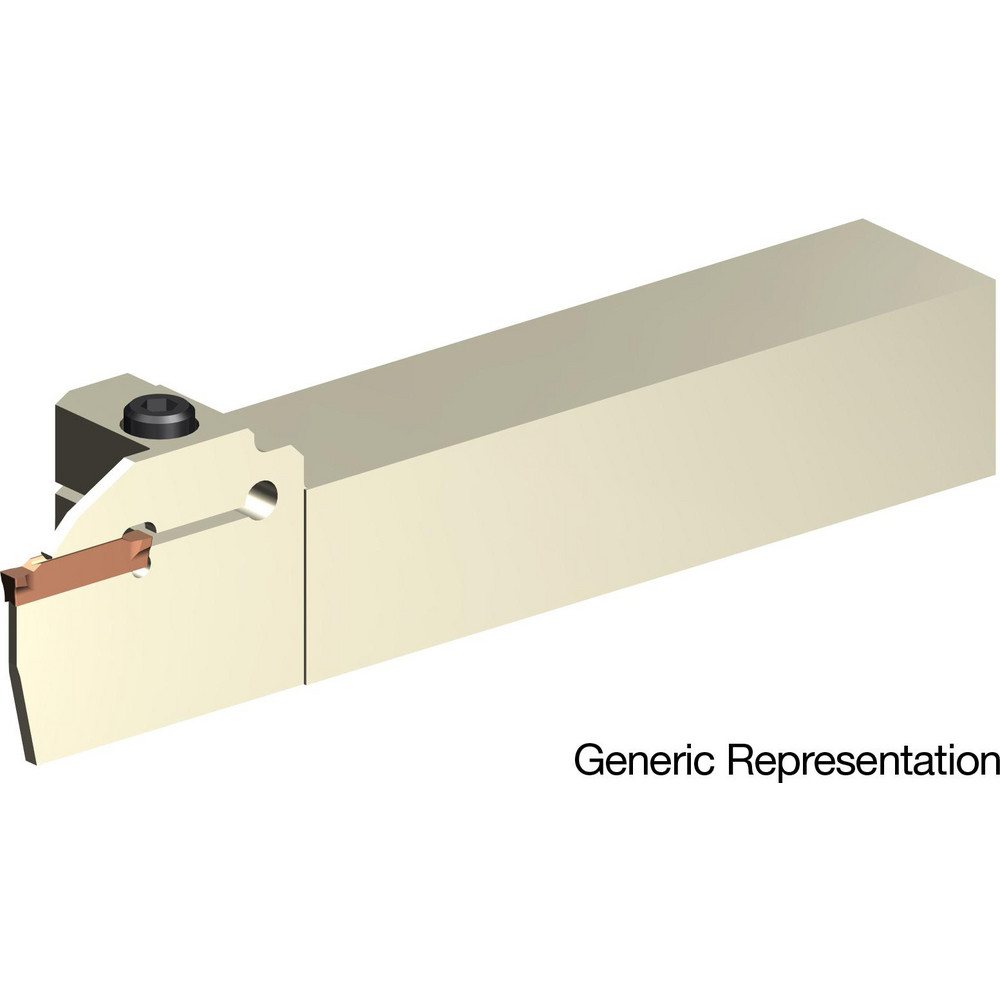

16.99 mm Max Depth of Cut, 3/4 x 3/4" Shank, Uses GDG2..., GDG3..., GDGS2..., GDGS3..., GDM2..., GDM3..., GDMS2..., GDMS3... Inserts

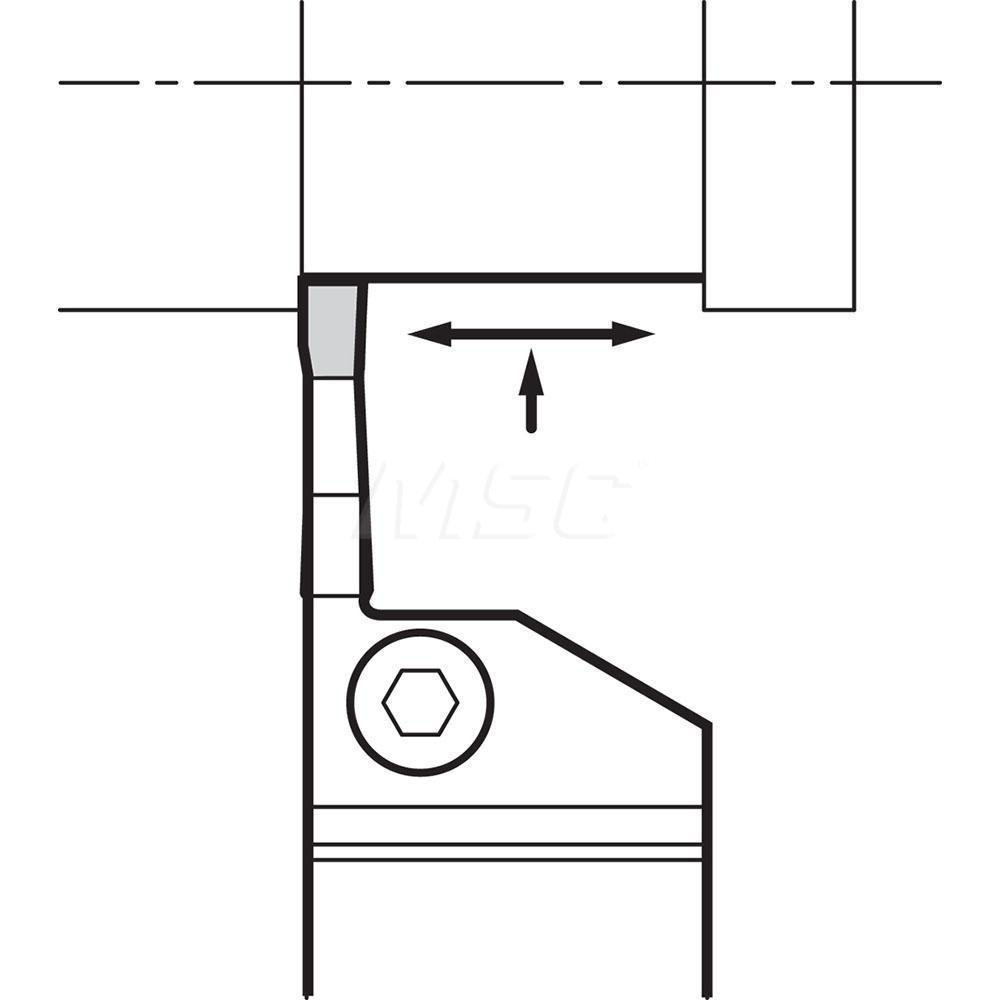

| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Maximum Depth of Cut (mm) | 16.99 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | KGD |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Insert Compatibility | GD.. 5020N..; GD.. 2520N..; GD.. 2220N..; GD.. 3520N..; GD.. 8030N..; GD.. 2520R..; GD.. 6020N..; GD.. 2020N..; GD.. 3020R..; GD.. 2020R..; GD.. 3020N..; GD.. 2420N..; GD.. 4020R..; GD.. 4020N.. |
| Compatible Insert Size Code | GDG3...; GDM3...; GDM2...; GDG2...; GDMS2...; GDMS3...; GDGS3...; GDGS2... |

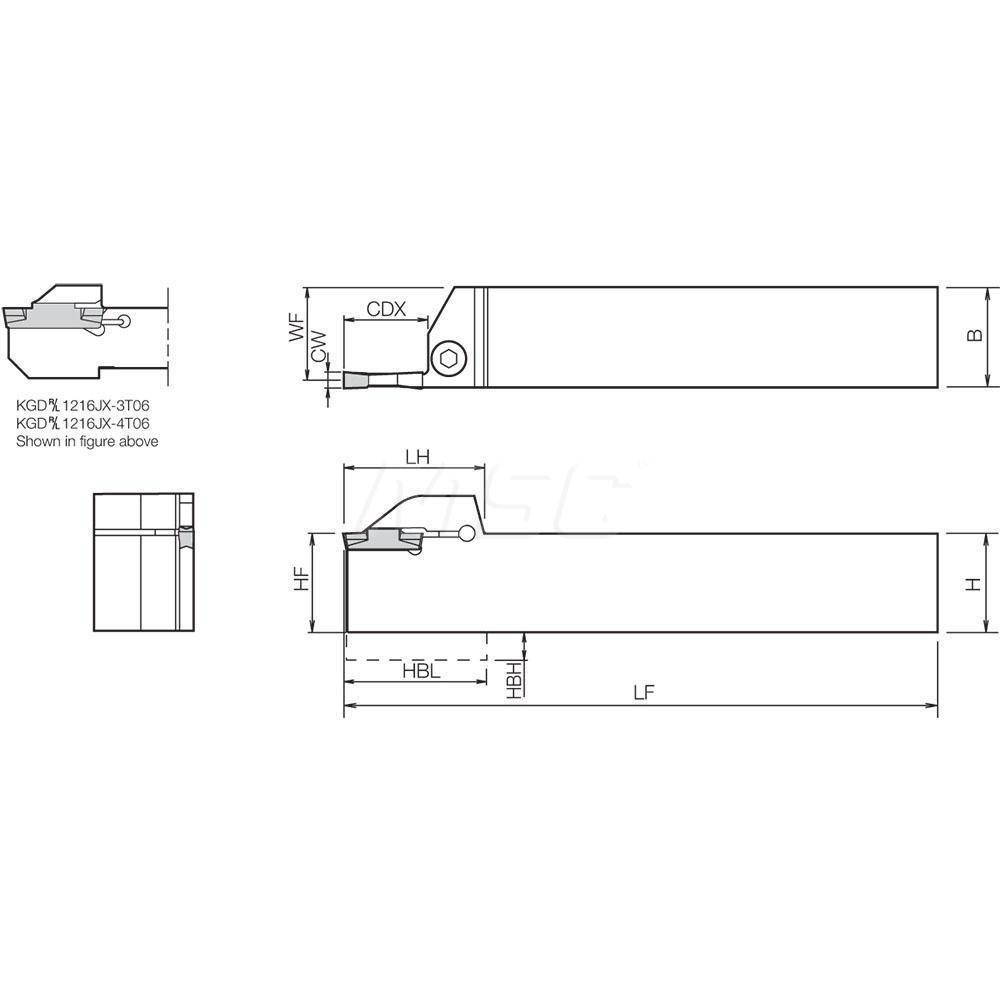

| Shank Height (Decimal Inch) | 0.7500 |
| Series | KGD |
| Shank Length (Decimal Inch) | 3.6400 |
| Overall Length (Decimal Inch) | 4.92 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7100 |
| Head Height (Decimal Inch) | 1.1240 |
| Head Length (Decimal Inch) | 1.28 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 1.2800 |
| Manufacturers Catalog Number | KGDR122T17 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GDM 3020N-030PH; GDG 4020N-040GS; GDM 2020N-020PH; GDG 3020N-020GS; GDM 3020N-150R-CM; GDG 3520N-020GS; GDM 3020N-020GL; GDM 3020N-040GM; GDM 3020N-020GM; GDG 2520N-020GS; GDG 5020N-040GS; GDM 2420N-020GM; GDM 2420N-020GL; GDG 6020N-040GS; GDM 3020N-040GL |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50394279 |
