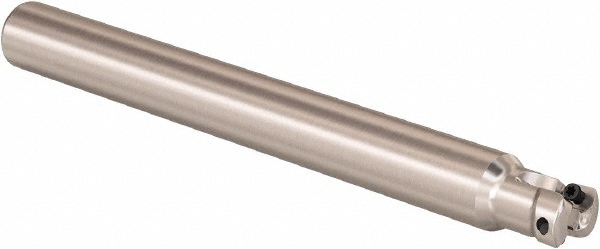

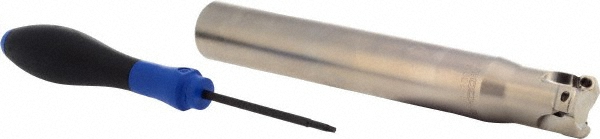

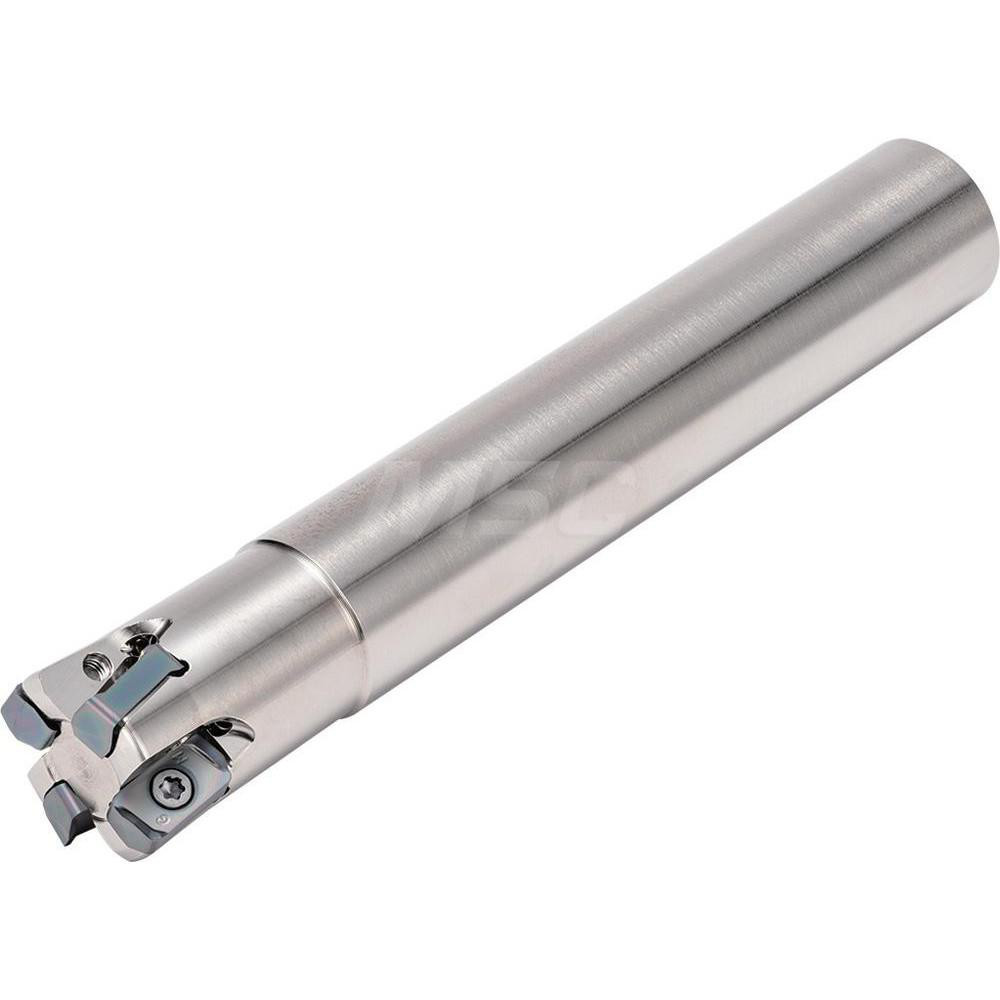

Uses 3 LPGT01… Inserts, Coolant Through
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Maximum Cutting Diameter (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Toolholder Style | MFH |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Maximum Ramping Angle | 10.00 |
| Compatible Insert Style | LPGT01… |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.20 |
| Series | MFH-Micro |
| Maximum RPM | 14000 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Lead Angle | 10 |

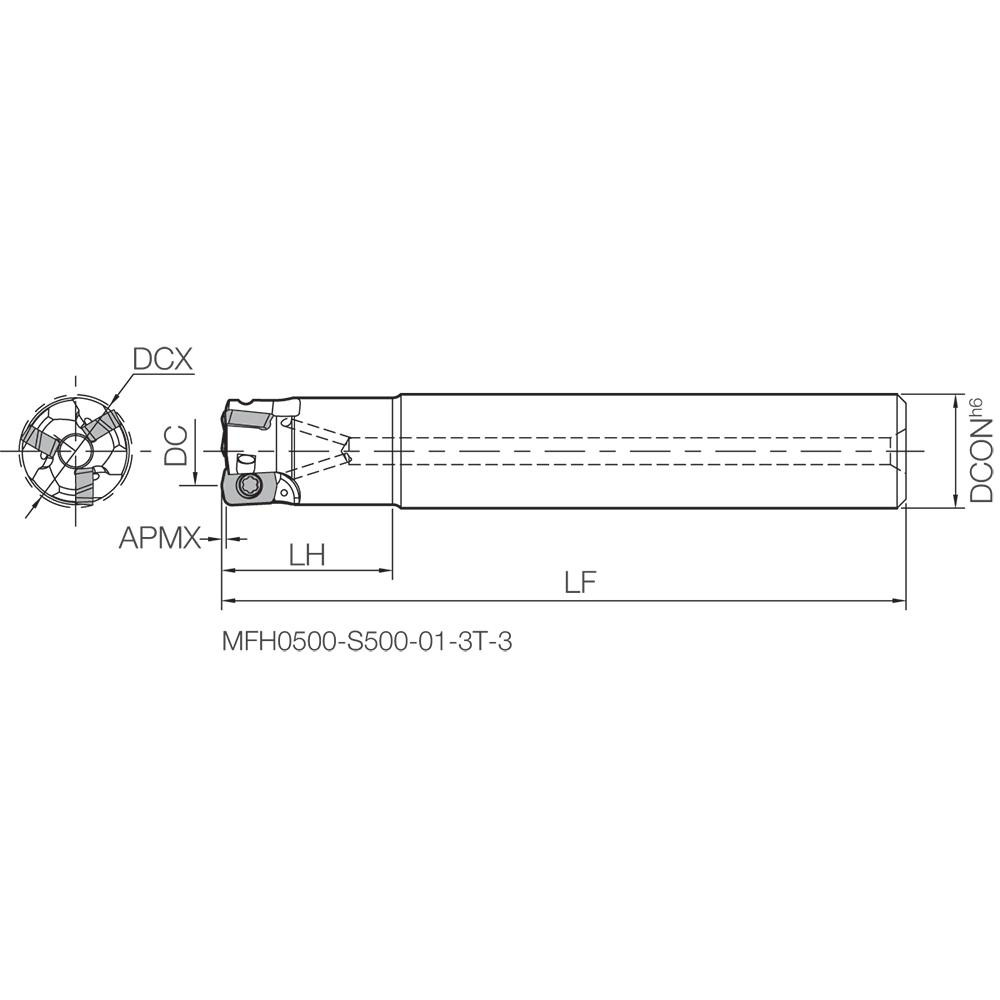

| Manufacturers Catalog Number | MFH0500S500013T3 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 16390932 |
