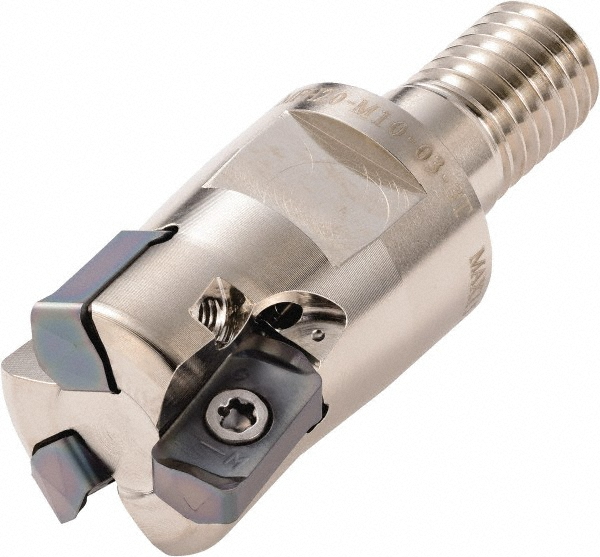

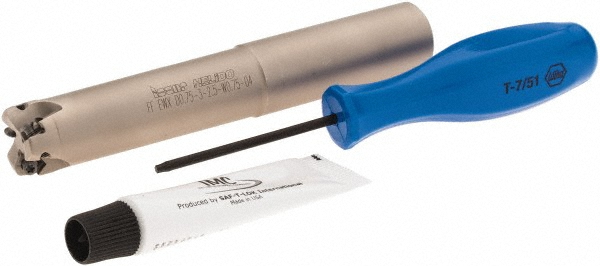

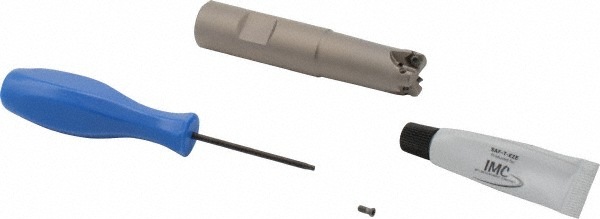

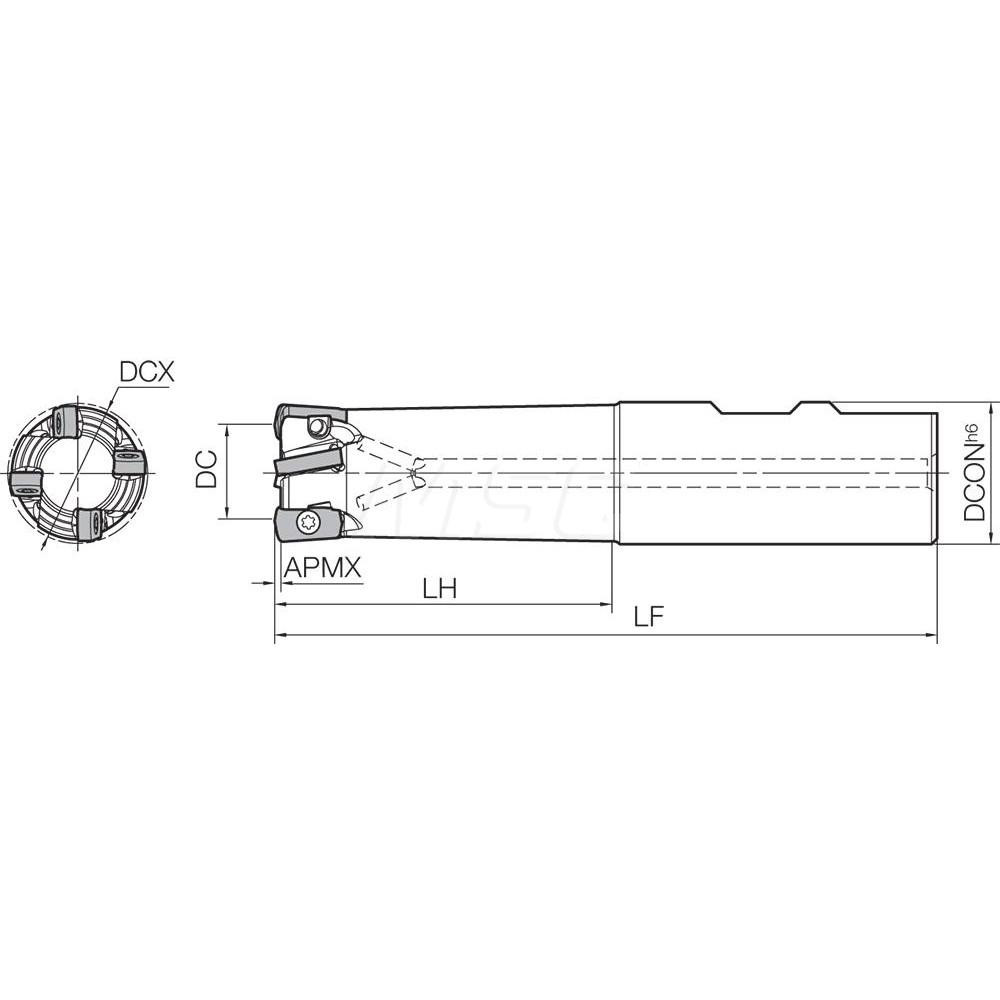

Uses 3 LOGU 030310ER-GM Inserts, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4350 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (mm) | 19.05 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | MFH |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 1.20 |

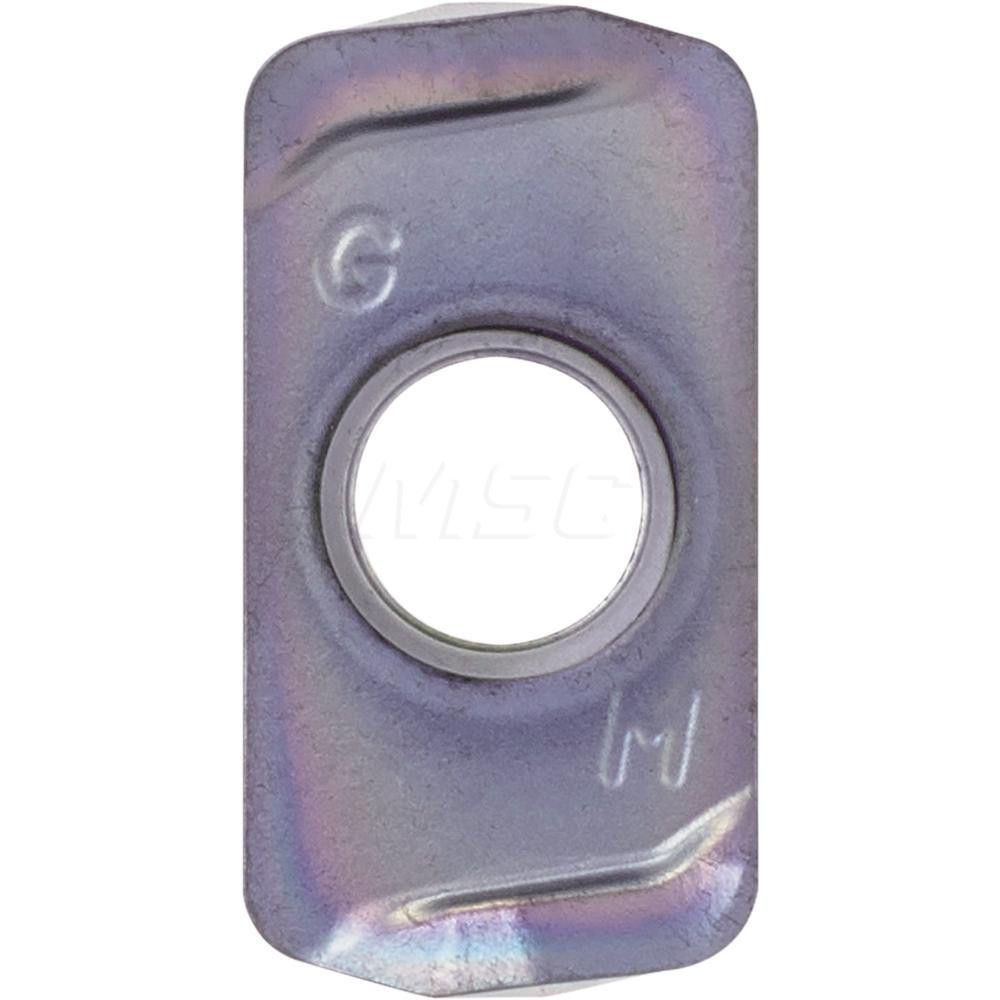

| Compatible Insert Style | LOGU 030310ER-GM |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 6.5000 |
| Maximum RPM | 15700 |
| Head Length (Decimal Inch) | 3.0000 |
| Functional Length (Decimal Inch) | 6.5000 |

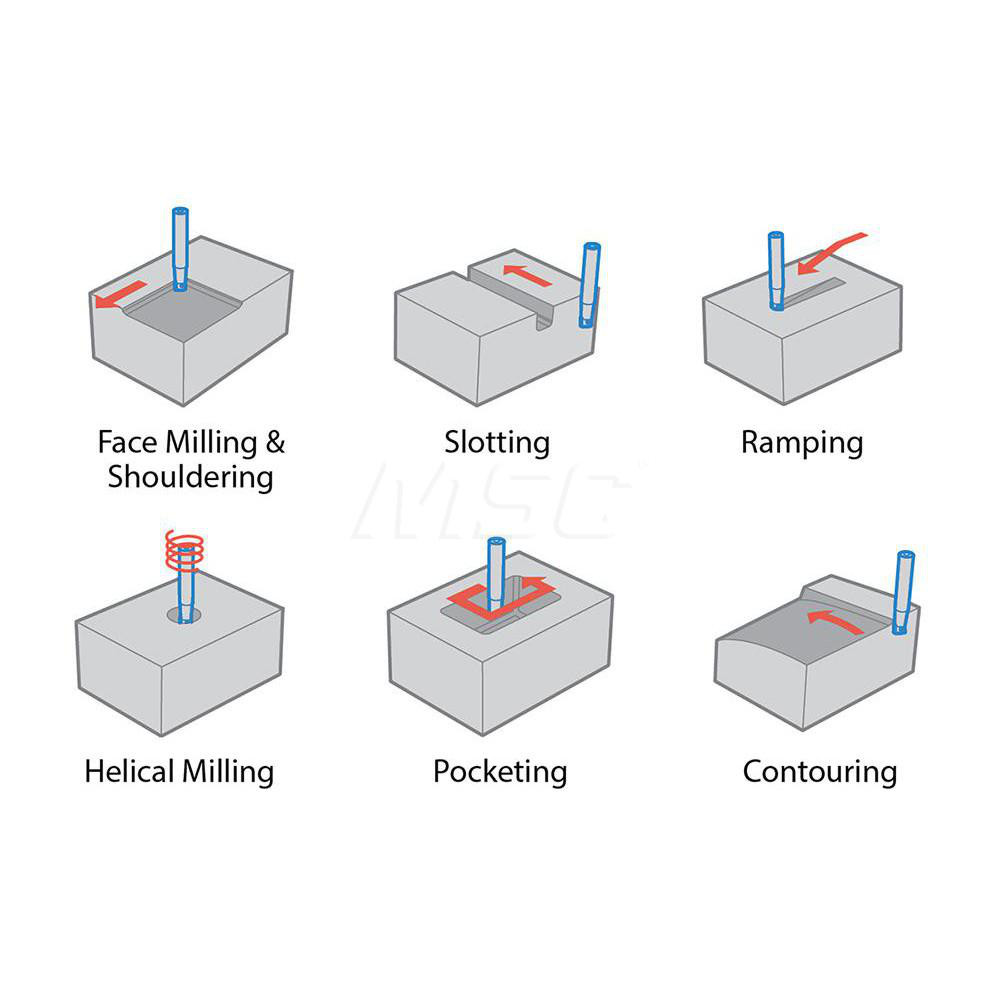

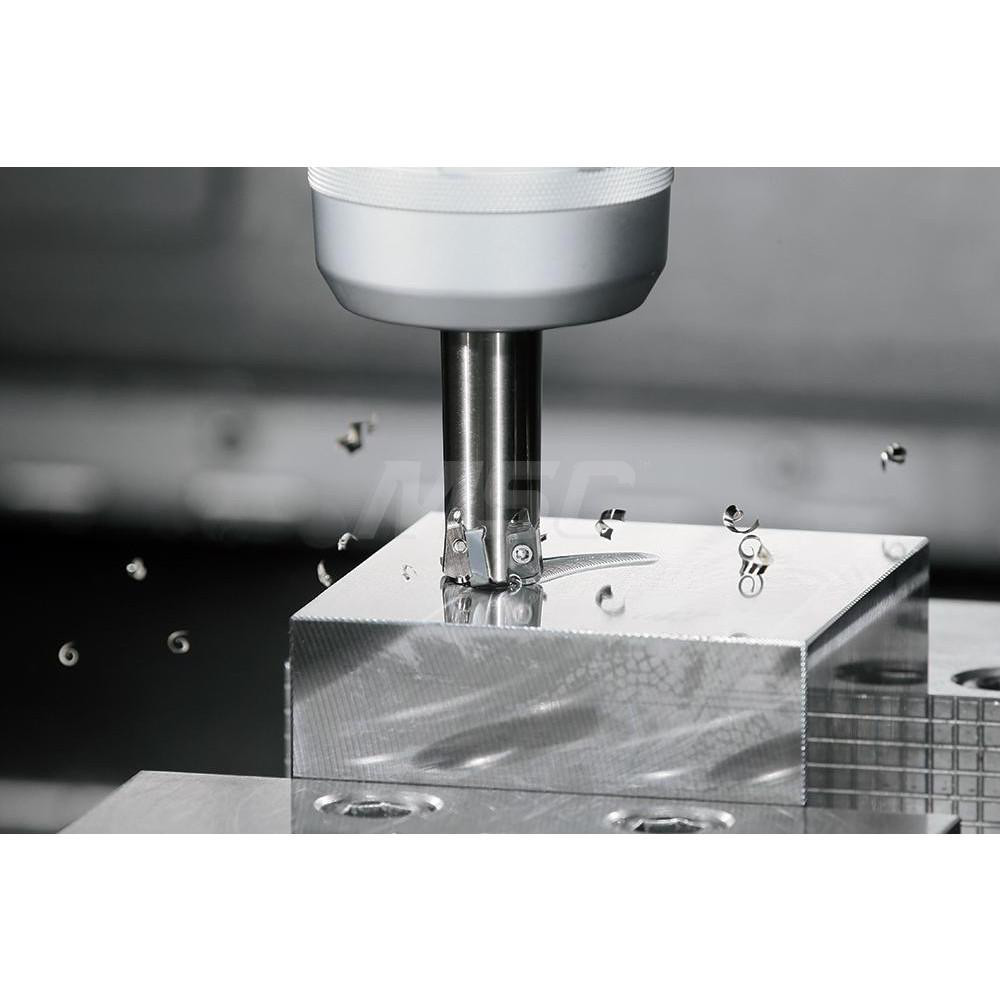

| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Weldon Flat | No |
| Manufacturers Catalog Number | MFH 0750-S750-03-3T65 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50421999 |
