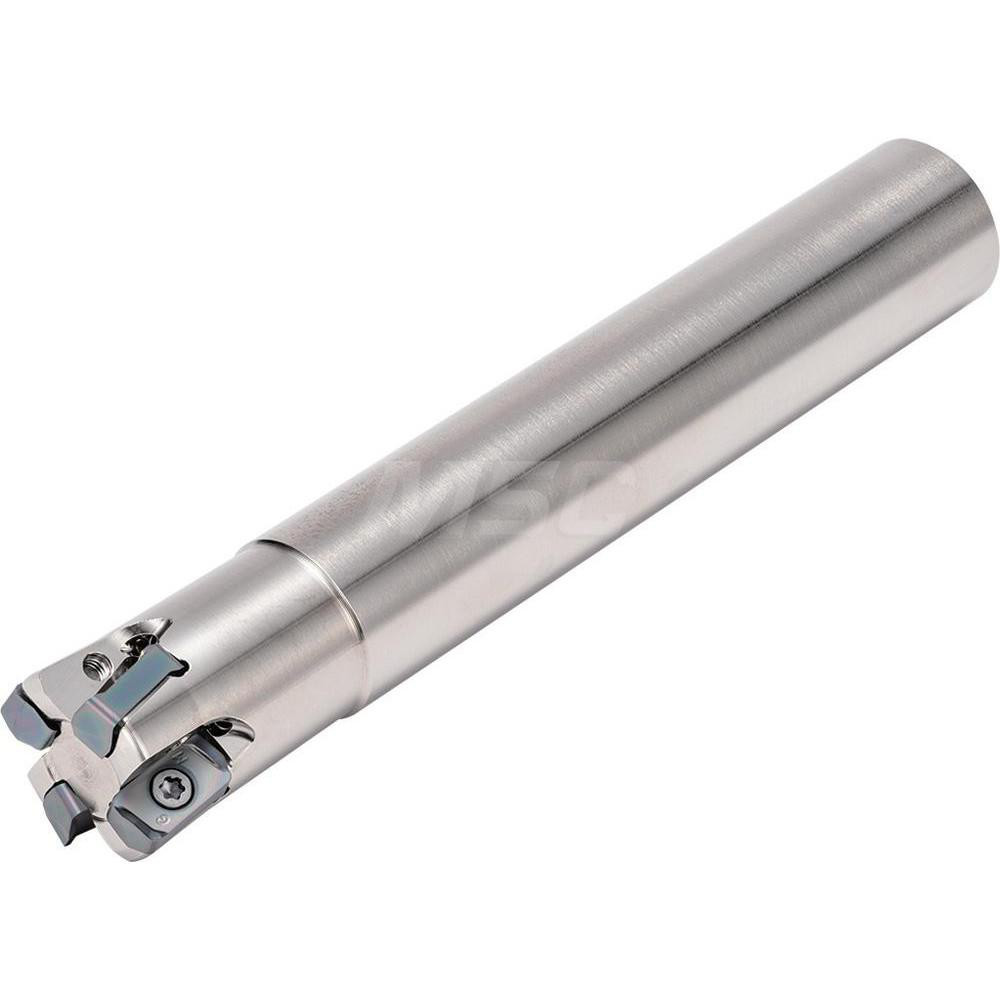

Uses 5 LOGU 030310ER-GM Inserts, 0.0390" Max Depth, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.6850 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (mm) | 25.40 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | MFH |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.4921 |

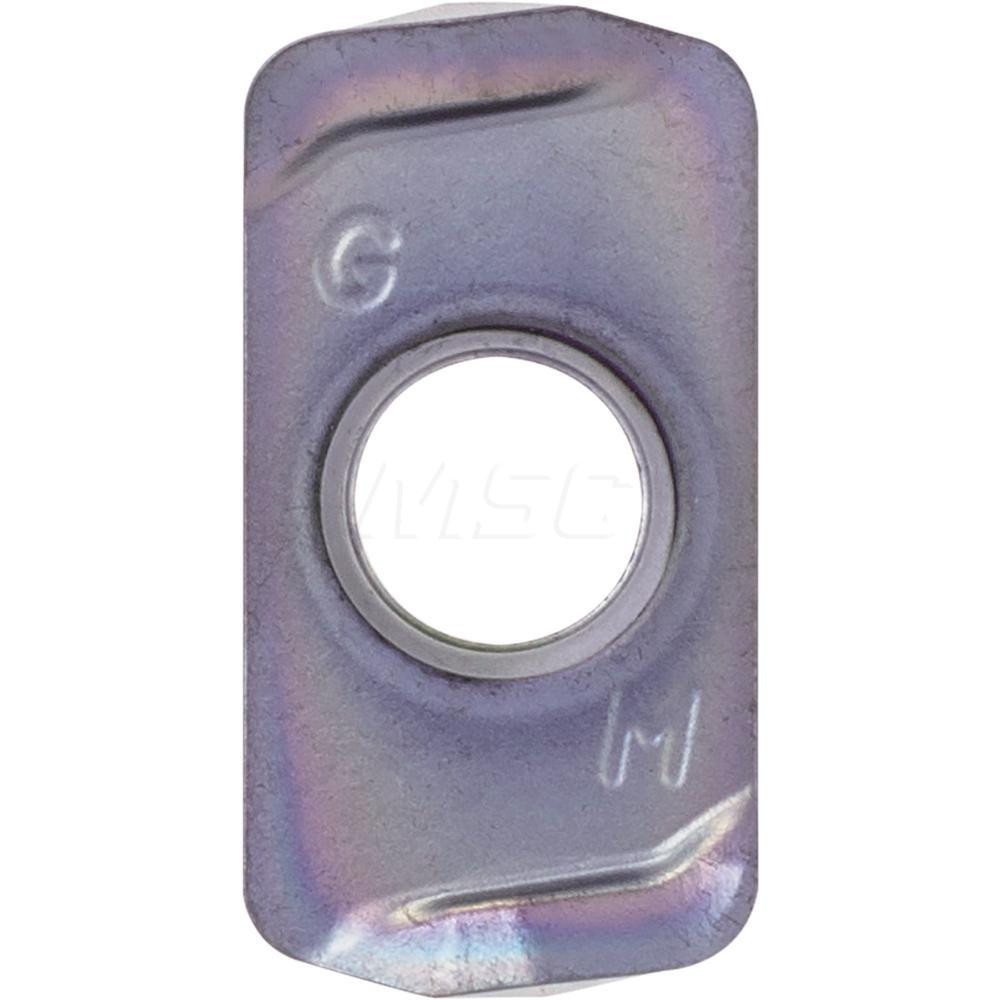

| Compatible Insert Style | LOGU 030310ER-GM |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 4.8200 |
| Maximum RPM | 13400 |
| Modular Connection Size | M12 |
| Head Length (Decimal Inch) | 2.5000 |
| Functional Length (Decimal Inch) | 1.3780 |
| Weldon Flat | No |
| Manufacturers Catalog Number | MFH 1000-M12-03-5T |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50390228 |
