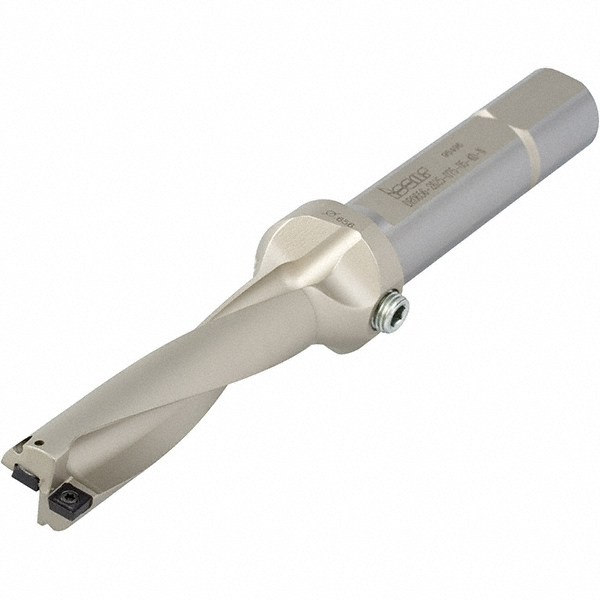

Weldon Flat & Flange Shank, Uses WCMX 06T308 Inserts, Series HD
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 1-15/32 |
| Maximum Drill Diameter (Decimal Inch) | 1.4689 |
| Maximum Drill Depth (Inch) | 2-3/4 |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WCMX |
| Compatible Insert Size Code | 06T308 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

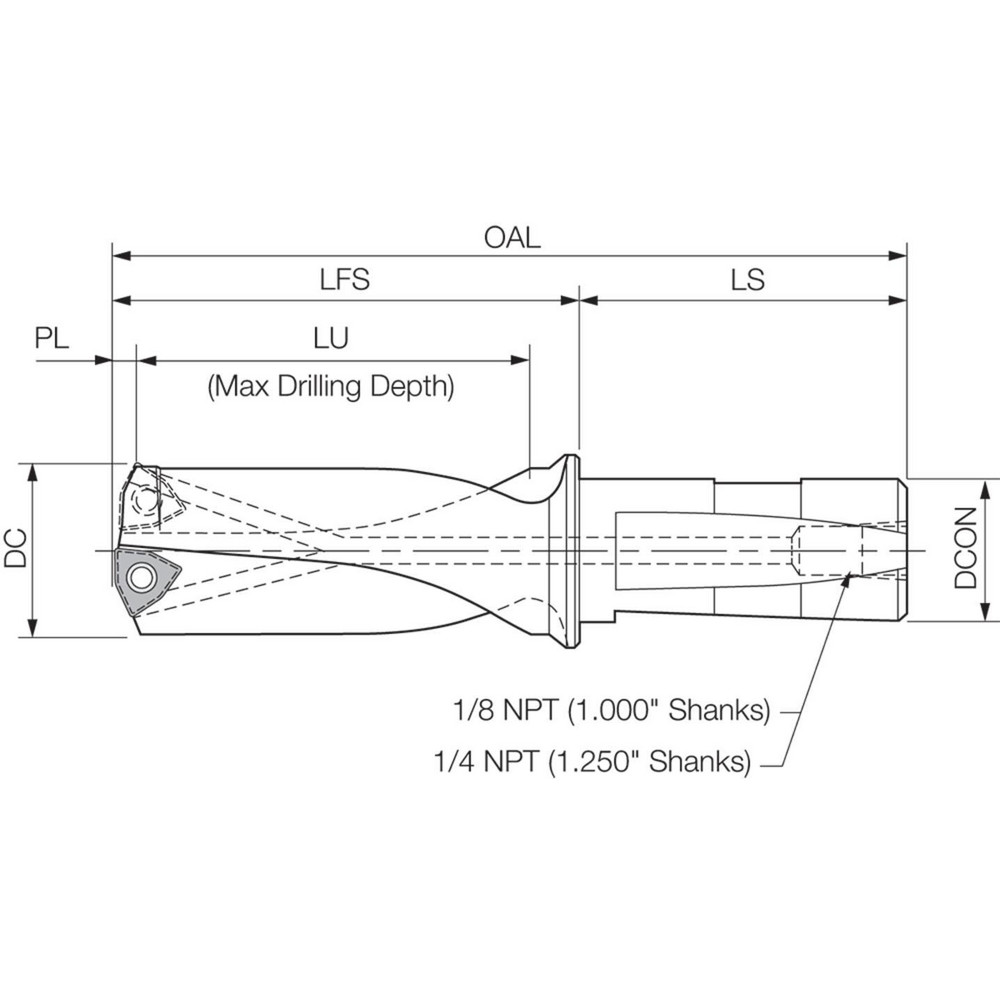

| Overall Length (Decimal Inch) | 5.7799 |
| Series | HD |
| Flute Length (Decimal Inch) | 2.7500 |
| Body Length (Decimal Inch) | 3.5000 |
| Shank Length (Decimal Inch) | 2.2799 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WCMX06T308-M1A; WCMX06T308-M1 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
| Insert Lock Screw | SCR-30 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 70586680 |
