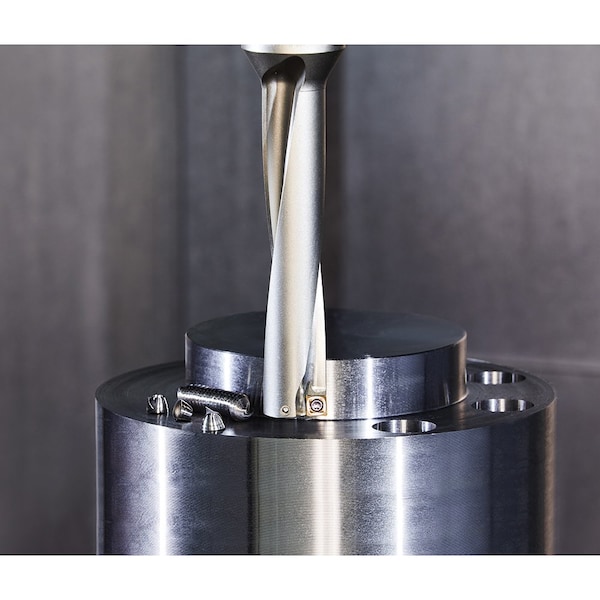

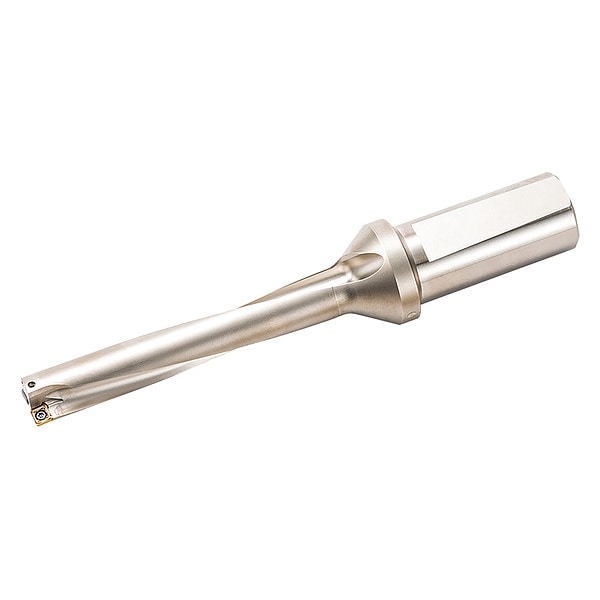

Indexable Insert Drill, S075DRV0562604, 0.5620" Drill Dia, 6xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Overall Length | 5.909 in |
| Shank Dia. | 3/4 in |
| Cutting Direction | Right Hand |
| Standards | +0.018/-0.000 in Cutting Dia. Tolerance |
| Number of Inserts | 2 |
| Toolholder Style | Magic Drill |
| Max. Drilling Depth | 3-3/8 in |
| ISO Number | S075-DRV0562-6-04 |
| Shank Type - Machining | Weldon Flat |
| ANSI Code | S075DRV0562604 |
| Coolant Fed | Coolant Through |
| Central Insert Style | SCMT040209 |
| Depth x Dia. Ratio | 6 xD |
| Package Quantity | 1 |
