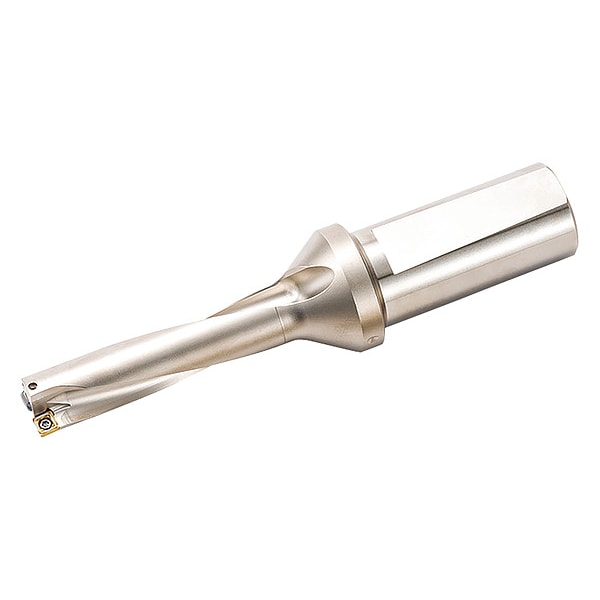

Indexable Insert Drill, S075DRV0625405, 0.6250" Drill Dia, 4xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Shank Dia. | 3/4 in |
| Cutting Direction | Right Hand |
| Overall Length | 5.118 in |
| Standards | +0.014/-0.000 in Cutting Dia. Tolerance |
| Depth x Dia. Ratio | 4 xD |
| Toolholder Style | Magic Drill |
| Number of Inserts | 2 |
| Central Insert Style | SCMT050210 |
| ANSI Code | S075DRV0625405 |
| Max. Drilling Depth | 2-1/2 in |
| ISO Number | S075-DRV0625-4-05 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Weldon Flat |
| Package Quantity | 1 |
