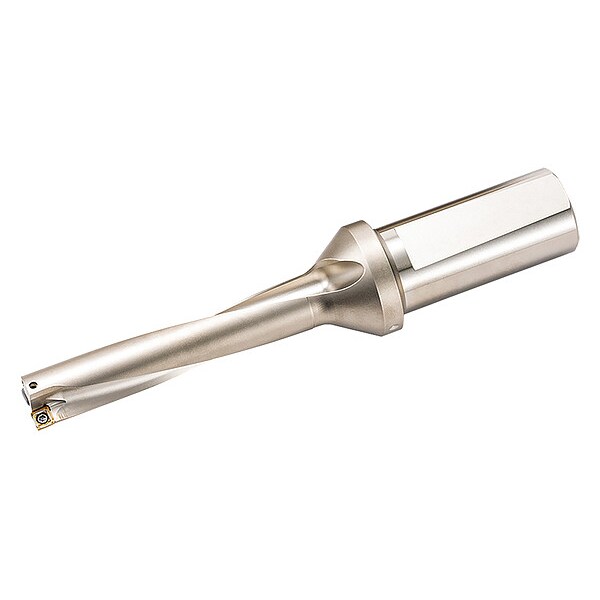

Indexable Insert Drill, S075DRV0625505, 0.6250" Drill Dia, 5xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Overall Length | 5.744 in |
| Shank Dia. | 3/4 in |
| Cutting Direction | Right Hand |
| Standards | +0.014/-0.000 in Cutting Dia. Tolerance |
| Shank Type - Machining | Weldon Flat |
| ANSI Code | S075DRV0625505 |
| Max. Drilling Depth | 3-1/8 in |
| ISO Number | S075-DRV0625-5-05 |
| Central Insert Style | SCMT050210 |
| Coolant Fed | Coolant Through |
| Depth x Dia. Ratio | 5 xD |
| Toolholder Style | Magic Drill |
| Number of Inserts | 2 |
| Package Quantity | 1 |
