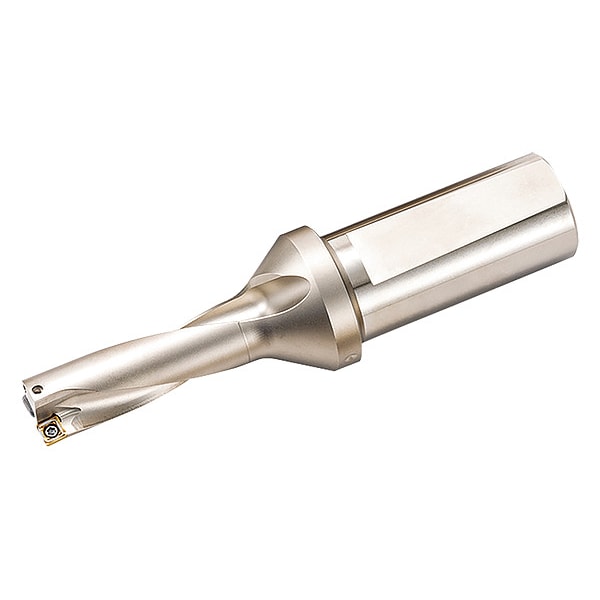

Indexable Insert Drill, S075DRV0656305, 0.6560" Drill Dia, 3xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Cutting Direction | Right Hand |
| Shank Dia. | 3/4 in |
| Overall Length | 4.587 in |
| Standards | +0.012/-0.000 in Cutting Dia. Tolerance |
| Number of Inserts | 2 |
| ISO Number | S075-DRV0656-3-05 |
| Shank Type - Machining | Weldon Flat |
| Toolholder Style | Magic Drill |
| Depth x Dia. Ratio | 3 xD |
| Max. Drilling Depth | 1.969 in |
| Central Insert Style | SCMT050210 |
| ANSI Code | S075DRV0656305 |
| Coolant Fed | Coolant Through |
| Package Quantity | 1 |
