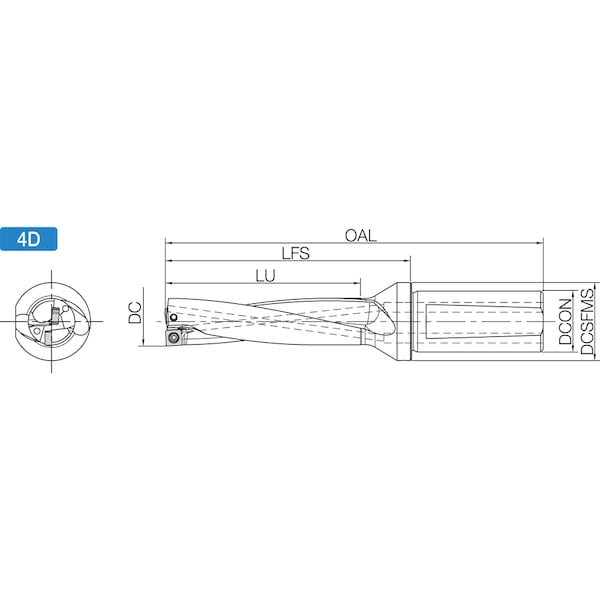

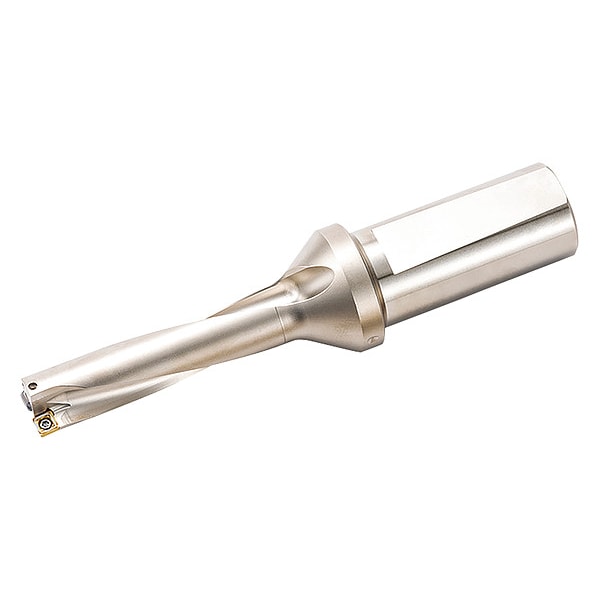

Indexable Insert Drill, S100DRV0875406, 0.8750" Drill Dia, 4xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Shank Dia. | 1 in |
| Overall Length | 6.469 in |
| Cutting Direction | Right Hand |
| Standards | +0.014/-0.000 in Cutting Dia. Tolerance |
| Coolant Fed | Coolant Through |
| Number of Inserts | 2 |
| Shank Type - Machining | Weldon Flat |
| Toolholder Style | Magic Drill |
| ANSI Code | S100DRV0875406 |
| Max. Drilling Depth | 3-1/2 in |
| Depth x Dia. Ratio | 4 xD |
| ISO Number | S100-DRV0875-4-06 |
| Central Insert Style | SCMT060210 |
| Package Quantity | 1 |
