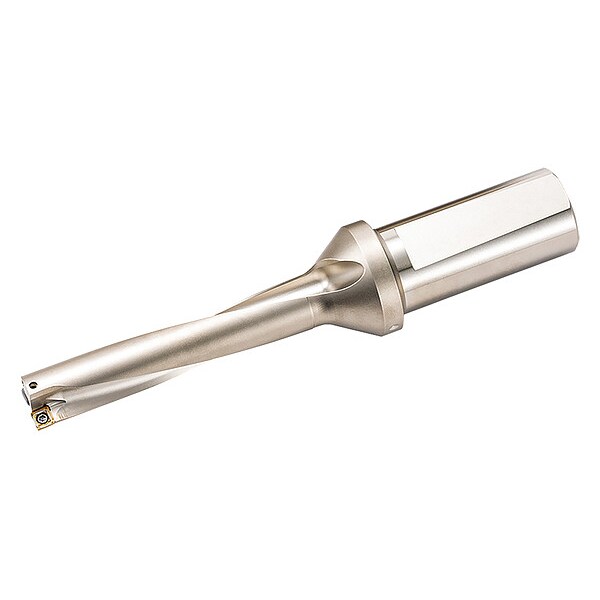

Indexable Insert Drill, S100DRV0938507, 0.9380" Drill Dia, 5xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Overall Length | 7.638 in |
| Shank Dia. | 1 in |
| Cutting Direction | Right Hand |
| Standards | +0.014/-0.000 in Cutting Dia. Tolerance |
| Number of Inserts | 2 |
| ISO Number | S100-DRV0938-5-07 |
| Max. Drilling Depth | 4.688 in |
| Shank Type - Machining | Weldon Flat |
| Depth x Dia. Ratio | 5 xD |
| ANSI Code | S100DRV0938507 |
| Toolholder Style | Magic Drill |
| Central Insert Style | SCMT070310 |
| Coolant Fed | Coolant Through |
| Package Quantity | 1 |
