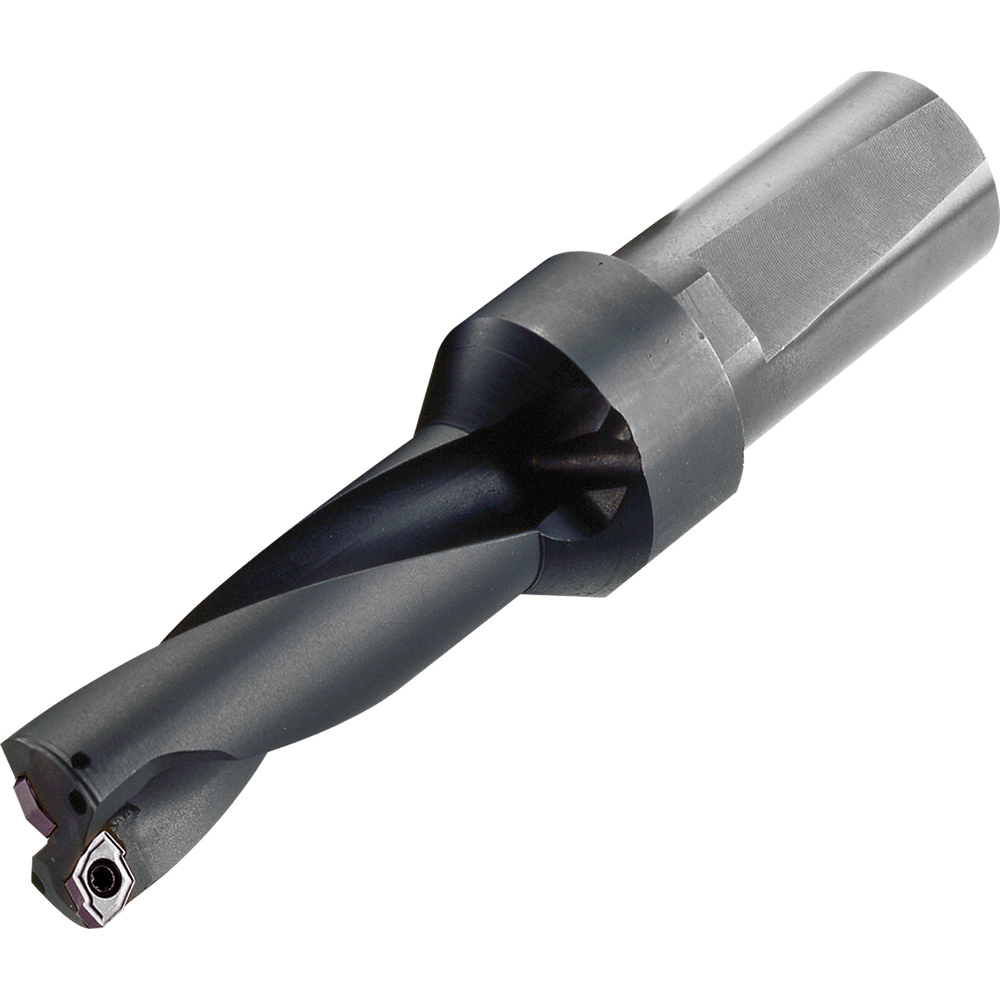

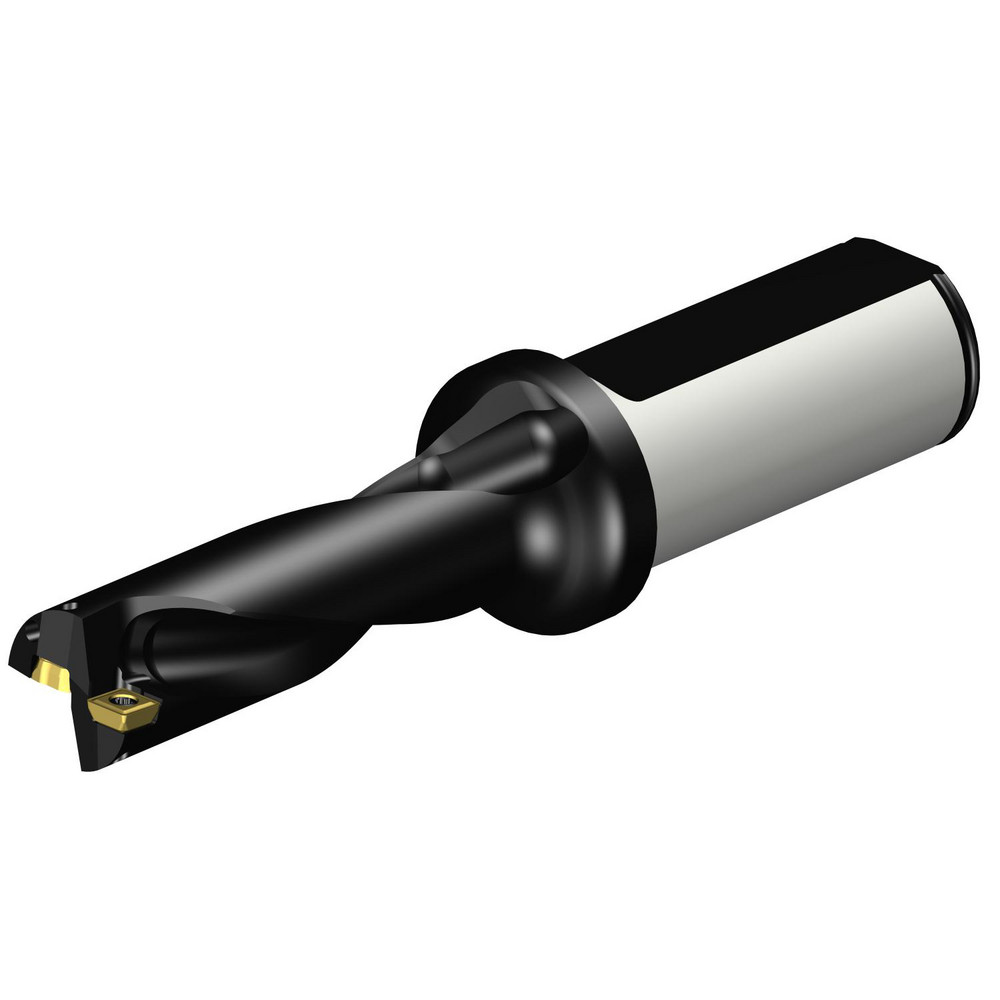

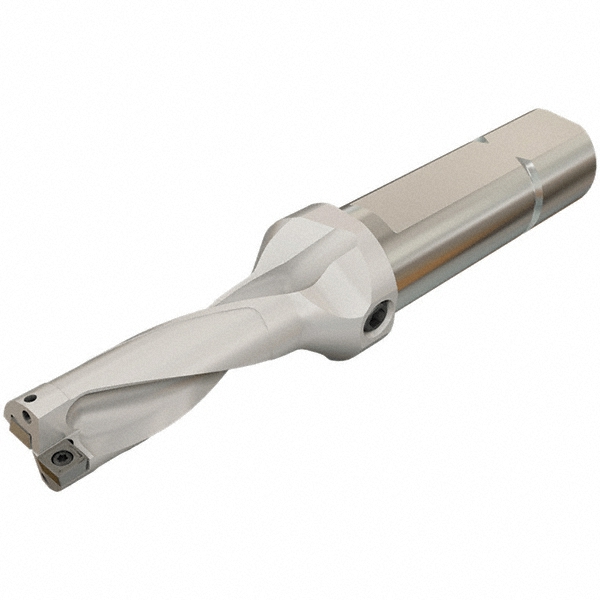

Whistle Notch & Flange Shank, Uses ZCMT 10T304 Inserts, Series DRZ
| Compatible Drill Style | DRZ |
|---|---|
| Maximum Drill Diameter (mm) | 29.01 |
| Maximum Drill Diameter (Decimal Inch) | 1.1421 |
| Maximum Drill Depth (Decimal Inch) | 3.4299 |
| Maximum Drill Depth (mm) | 87.12 |
| Shank Type | Flange; Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZCMT |
| Compatible Insert Size Code | 10T304 |

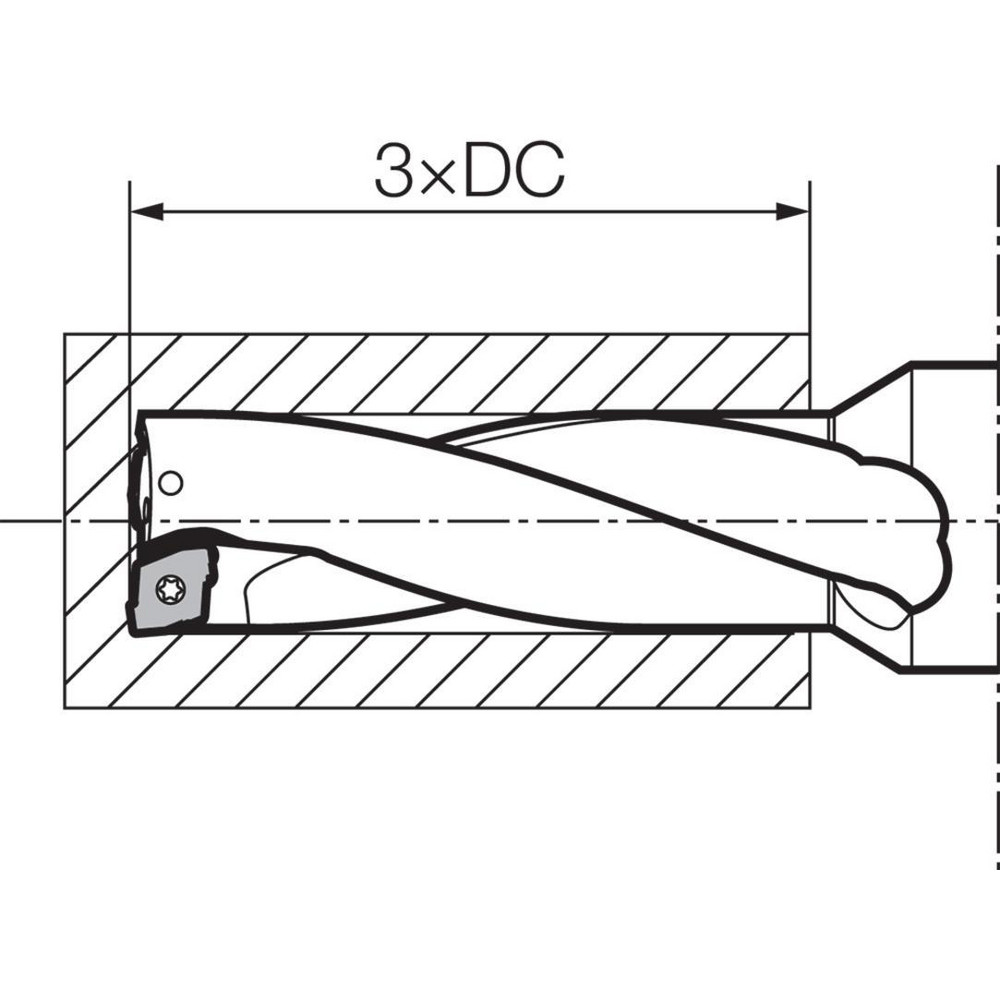

| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |

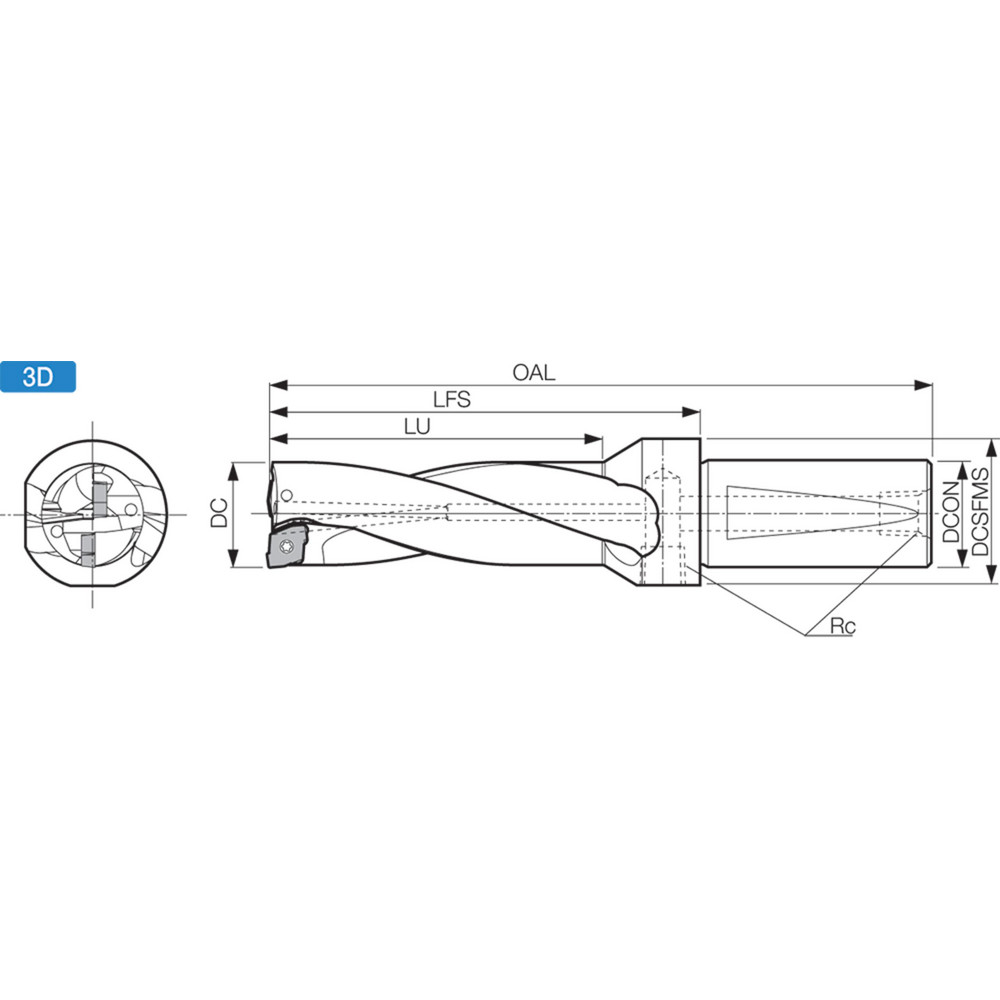

| Overall Length (Decimal Inch) | 7.0402 |
| Series | DRZ |
| Flute Length (Decimal Inch) | 3.4299 |
| Flute Length (mm) | 87.12 |
| Body Length (mm) | 119.89 |
| Body Length (Decimal Inch) | 4.7201 |
| Shank Length (Decimal Inch) | 2.3201 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4095 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZCMT10T304 |
| Collar Diameter (Decimal Inch) | 1.6500 |
| Collar Diameter (mm) | 41.91 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | SB-4085TR |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 39341110 |
