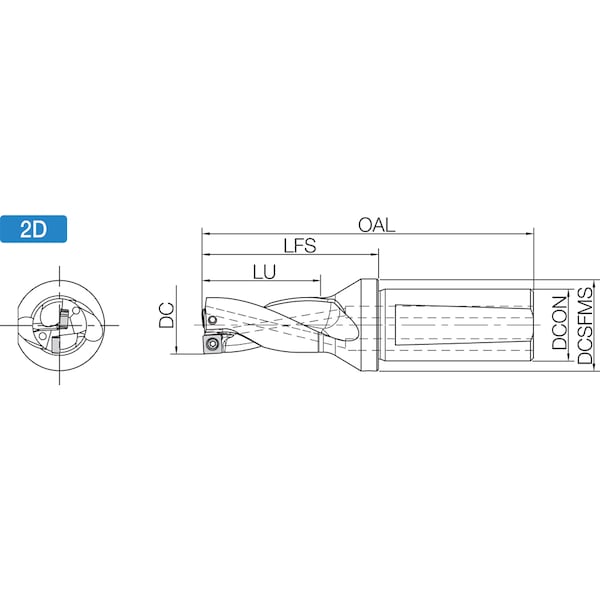

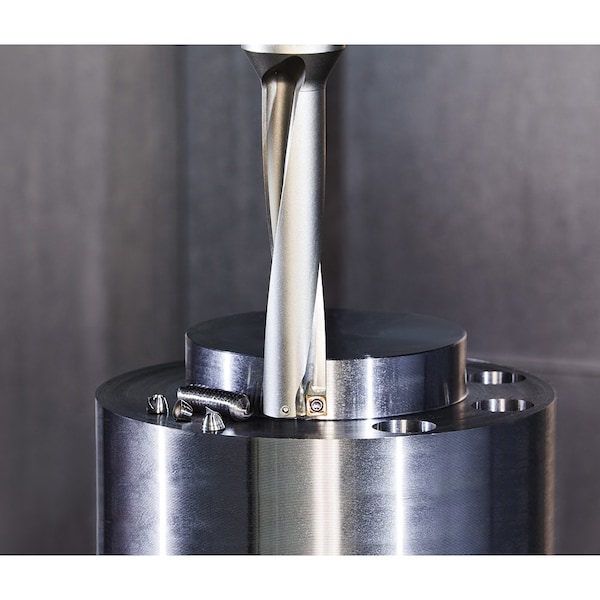

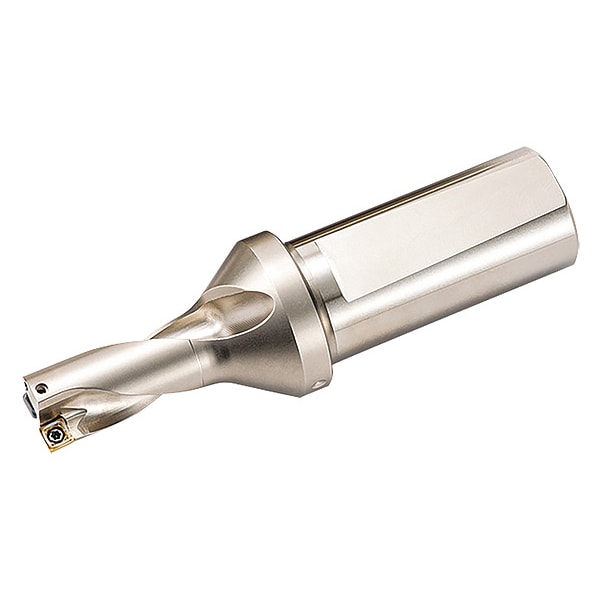

Indexable Insert Drill, S125DRV1125209, 1.1250" Drill Dia, 2xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Cutting Direction | Right Hand |
| Shank Dia. | 1-1/4 in |
| Overall Length | 5.467 in |
| Standards | +0.012/-0.000 in Cutting Dia. Tolerance |
| Central Insert Style | SCMT090410 |
| Number of Inserts | 2 |
| Depth x Dia. Ratio | 2 xD |
| Shank Type - Machining | Weldon Flat |
| ISO Number | S125-DRV1125-2-09 |
| Toolholder Style | Magic Drill |
| Max. Drilling Depth | 2-1/4 in |
| ANSI Code | S125DRV1125209 |
| Coolant Fed | Coolant Through |
| Package Quantity | 1 |
