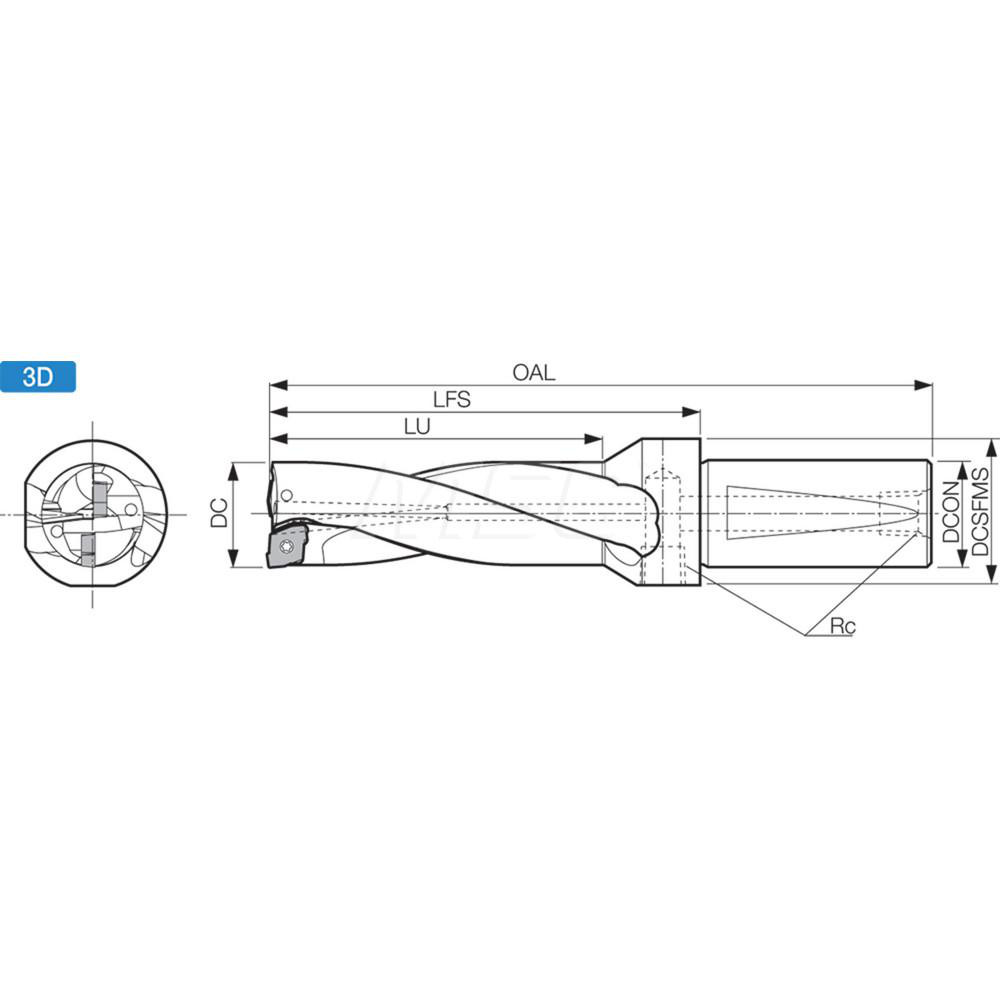

Weldon Flat & Flange Shank, Uses ZCMT 12T306 & 12T304 Inserts, Series DRZ
| Compatible Drill Style | DRZ |
|---|---|
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3752 |
| Maximum Drill Depth (Decimal Inch) | 6.8799 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | ZCMT |
| Compatible Insert Size Code | 12T304; 12T306 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 11.2799 |
| Series | DRZ |
| Flute Length (Decimal Inch) | 6.8799 |
| Flute Length (mm) | 174.75 |
| Body Length (Decimal Inch) | 8.2799 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 2.1700 |
| Coolant Hole Thread Size | "1/4-18 NPT" |

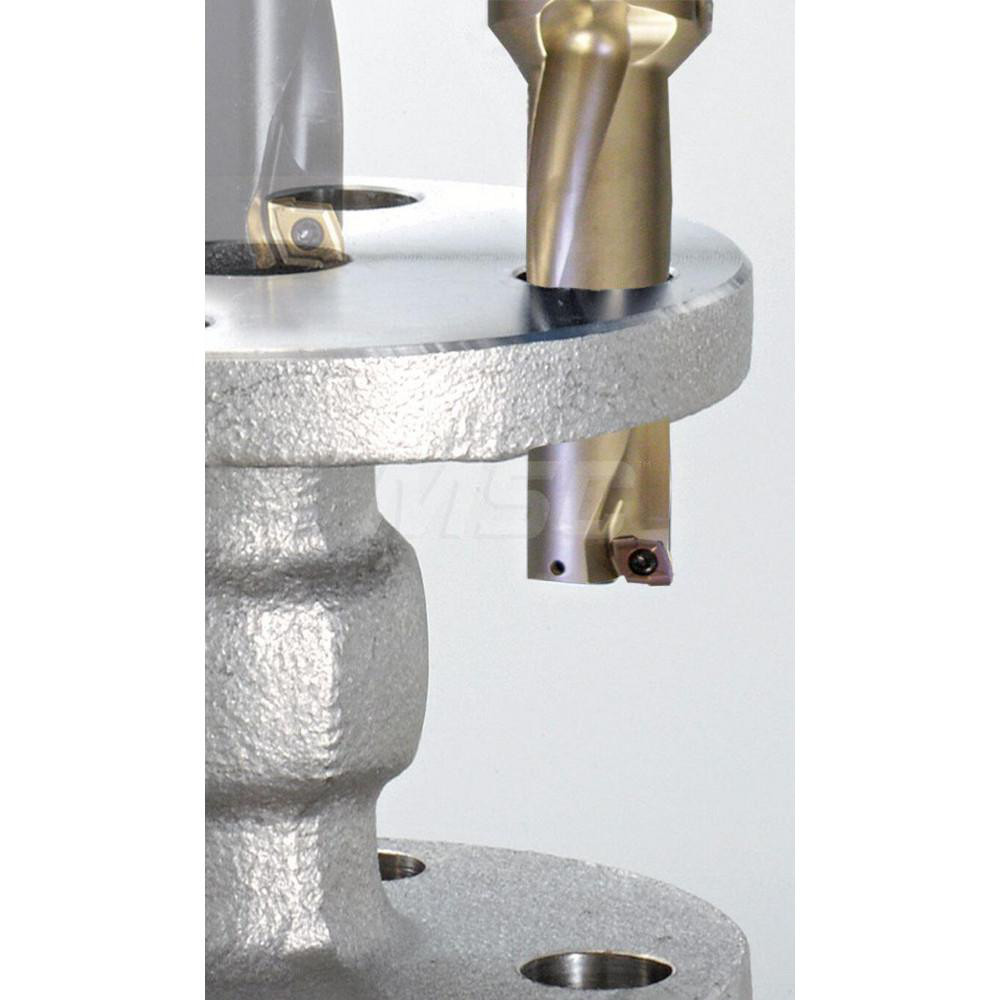

| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5039 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZCMT12T304; ZCMT12T306 |
| Collar Diameter (Decimal Inch) | 2.1701 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | SB-5085TR |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 92683010 |
