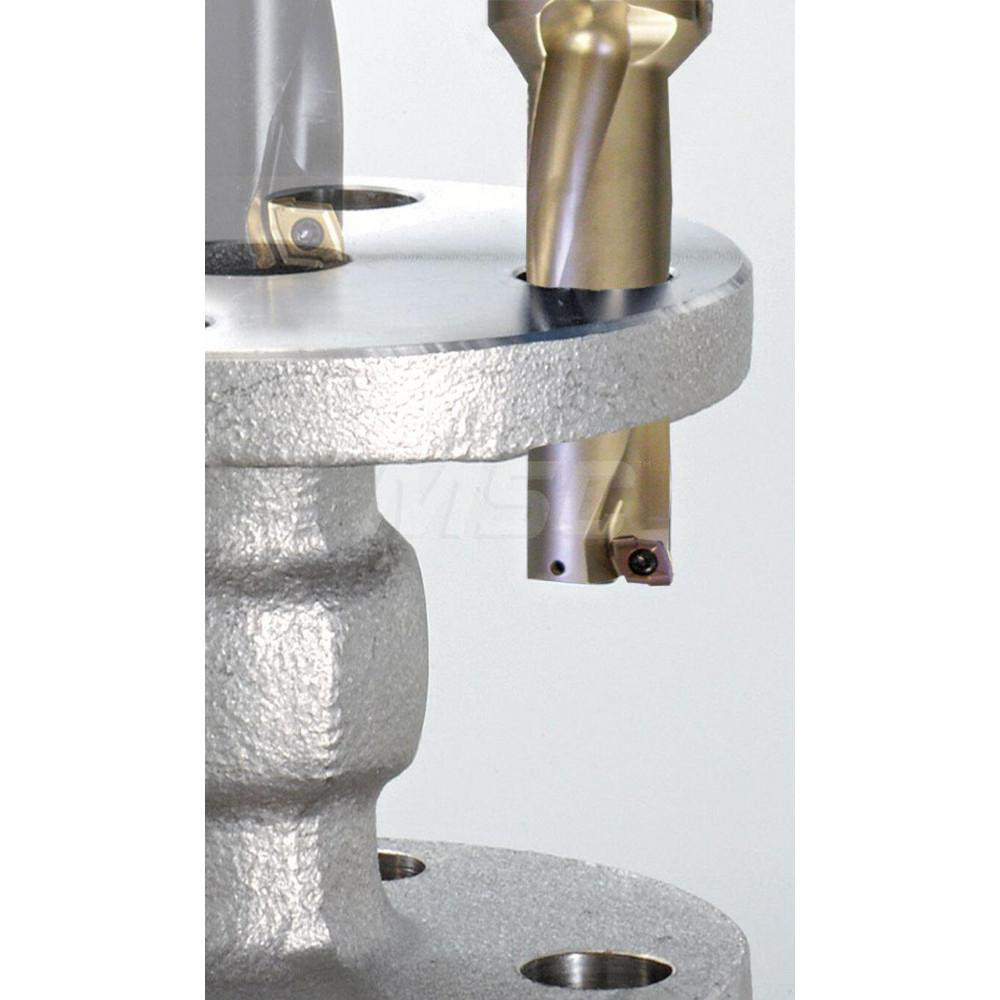

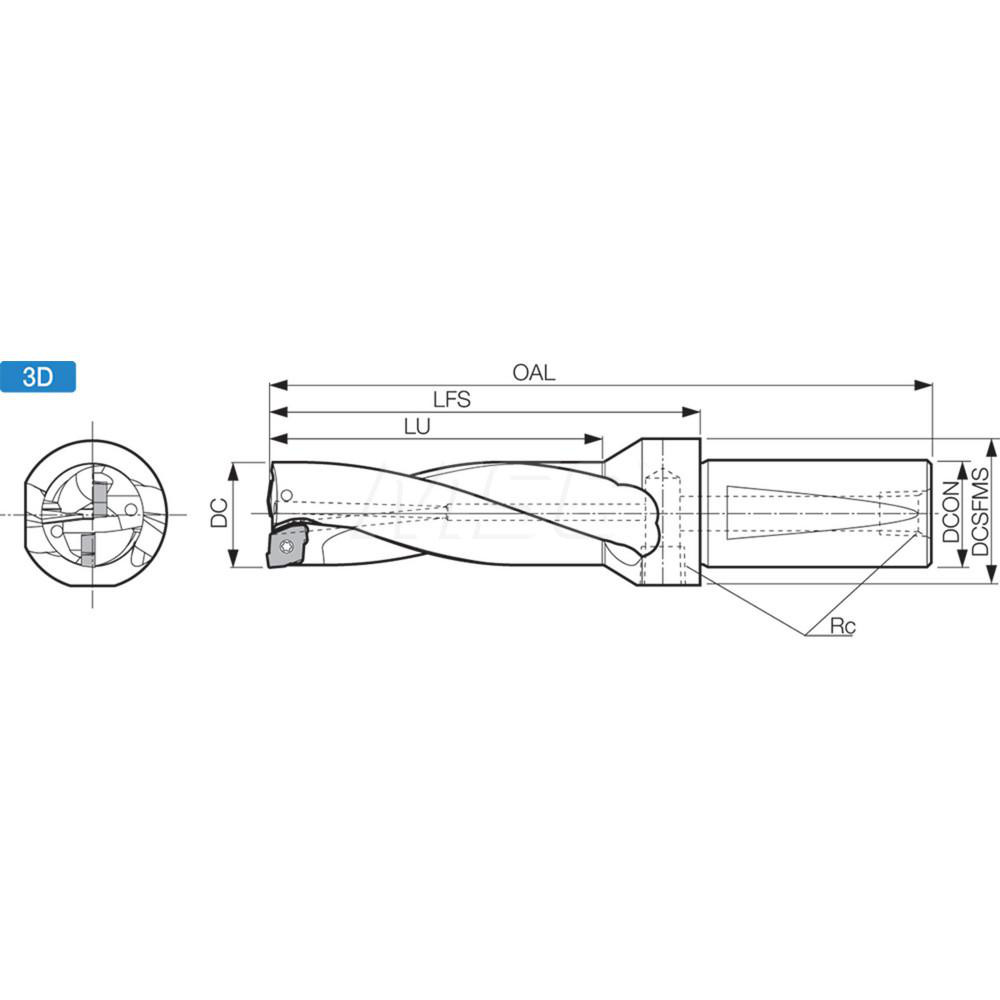

Whistle Notch & Flange Shank, Uses ZCMT 150408 & 150406 Inserts, Series DRZ
| Compatible Drill Style | DRZ |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.9382 |
| Maximum Drill Depth (Decimal Inch) | 5.8118 |
| Shank Type | Flange; Whistle Notch |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | ZCMT |
| Compatible Insert Size Code | 150406; 150408 |

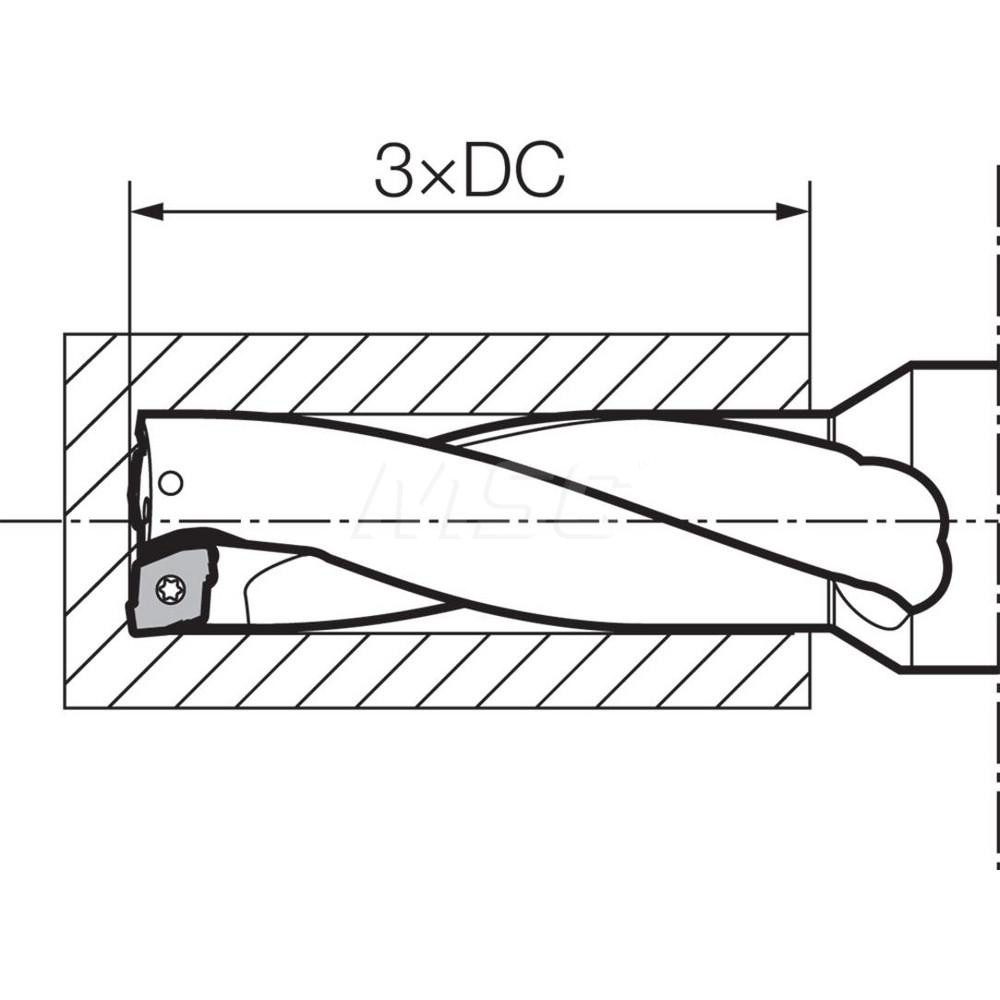

| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 9.8599 |
| Series | DRZ |
| Flute Length (Decimal Inch) | 5.8118 |
| Flute Length (mm) | 147.62 |
| Body Length (Decimal Inch) | 7.1500 |
| Shank Length (Decimal Inch) | 2.7099 |
| Neck Diameter (Inch) | 2.3600 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.7008 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZCMT150406; ZCMT150408 |
| Collar Diameter (Decimal Inch) | 2.3598 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | SB-5085TR |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 56148315 |
