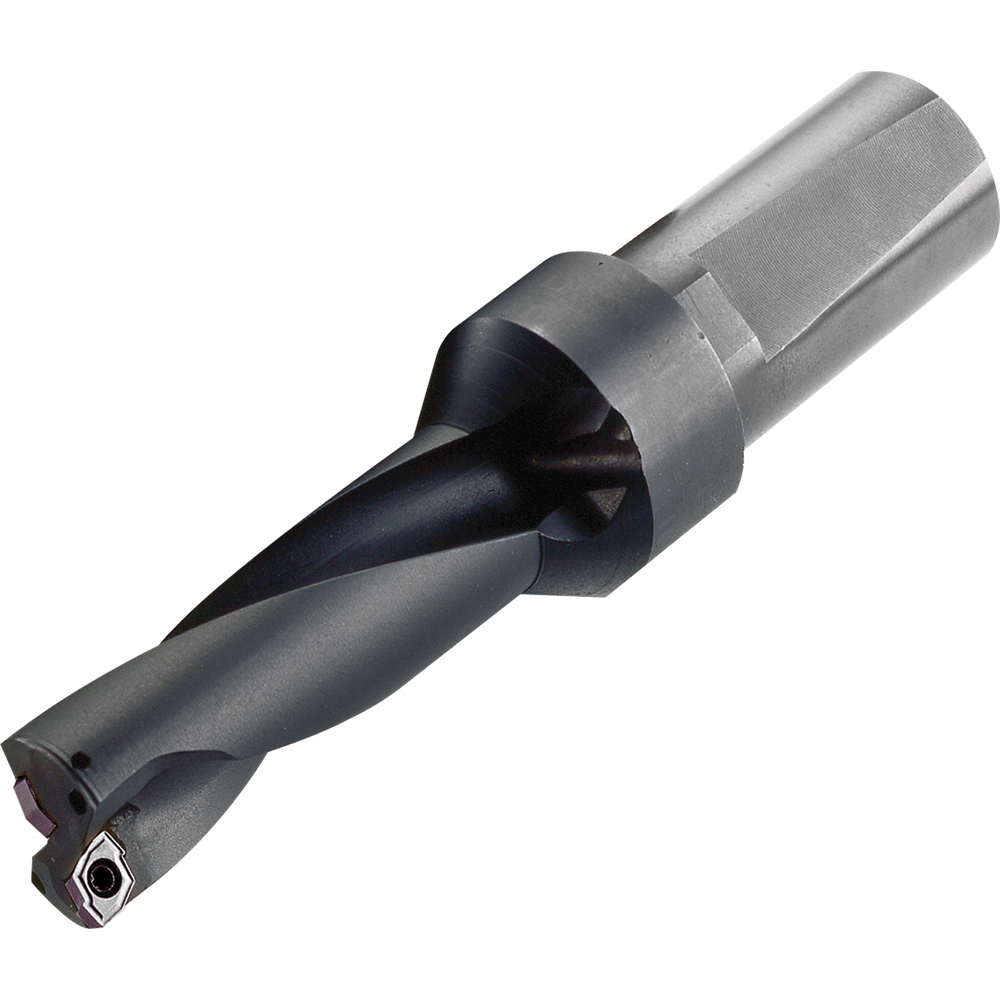

Whistle Notch & Flange Shank, Uses ZCMT 12T306 & 12T304 Inserts, Series DRZ
| Compatible Drill Style | DRZ |
|---|---|
| Maximum Drill Diameter (mm) | 32.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.2988 |
| Maximum Drill Depth (Decimal Inch) | 3.9000 |
| Maximum Drill Depth (mm) | 99.06 |
| Shank Type | Flange; Whistle Notch |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZCMT |
| Compatible Insert Size Code | 12T304; 12T306 |

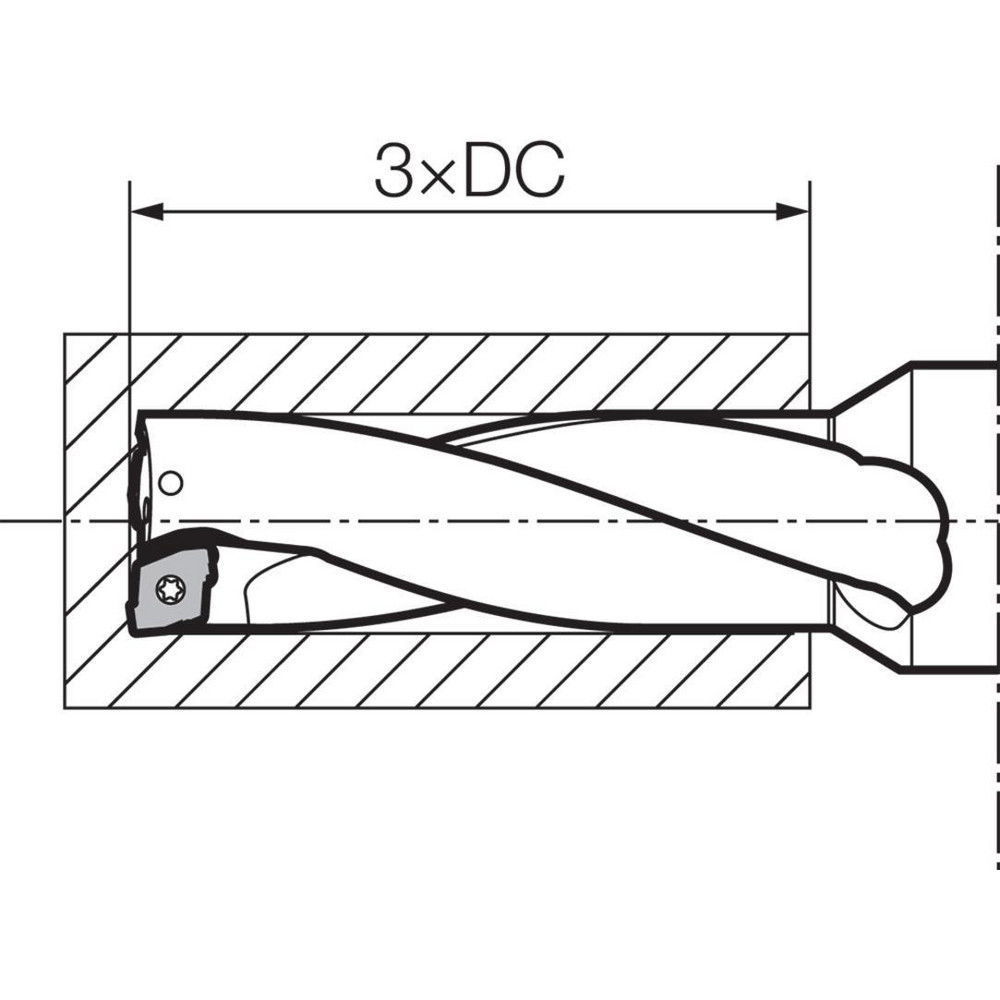

| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |

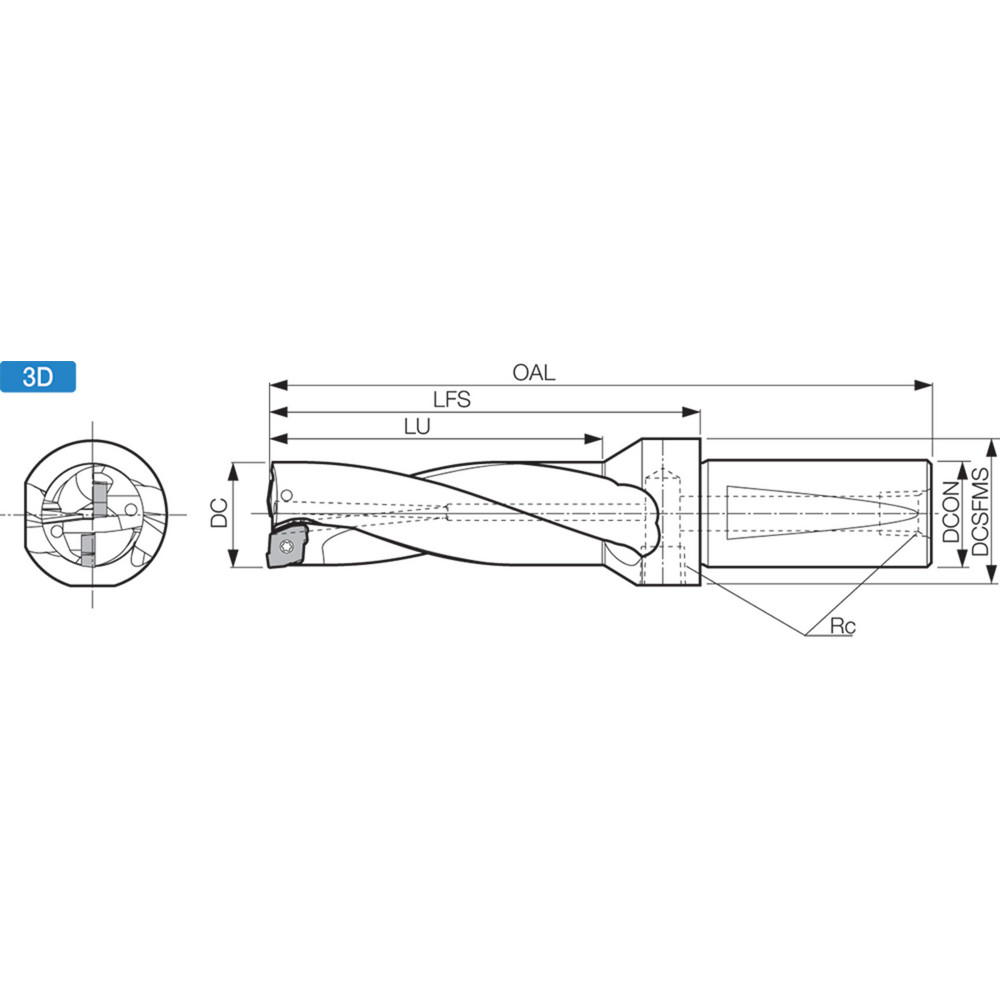

| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Series | DRZ |
| Flute Length (Decimal Inch) | 3.9000 |
| Flute Length (mm) | 99.06 |
| Body Length (mm) | 134.11 |
| Body Length (Decimal Inch) | 5.2799 |
| Shank Length (Decimal Inch) | 2.7201 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5039 |
| UNSPSC Code | 23291503 |

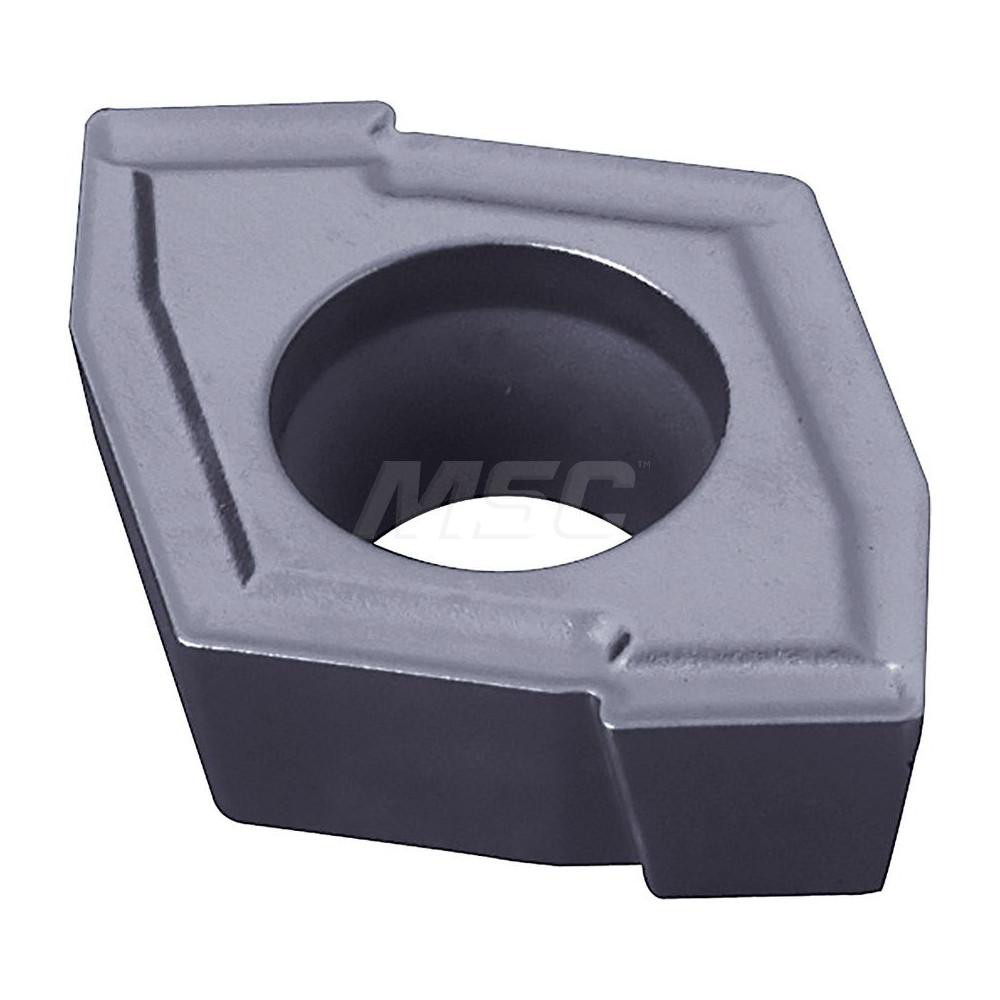

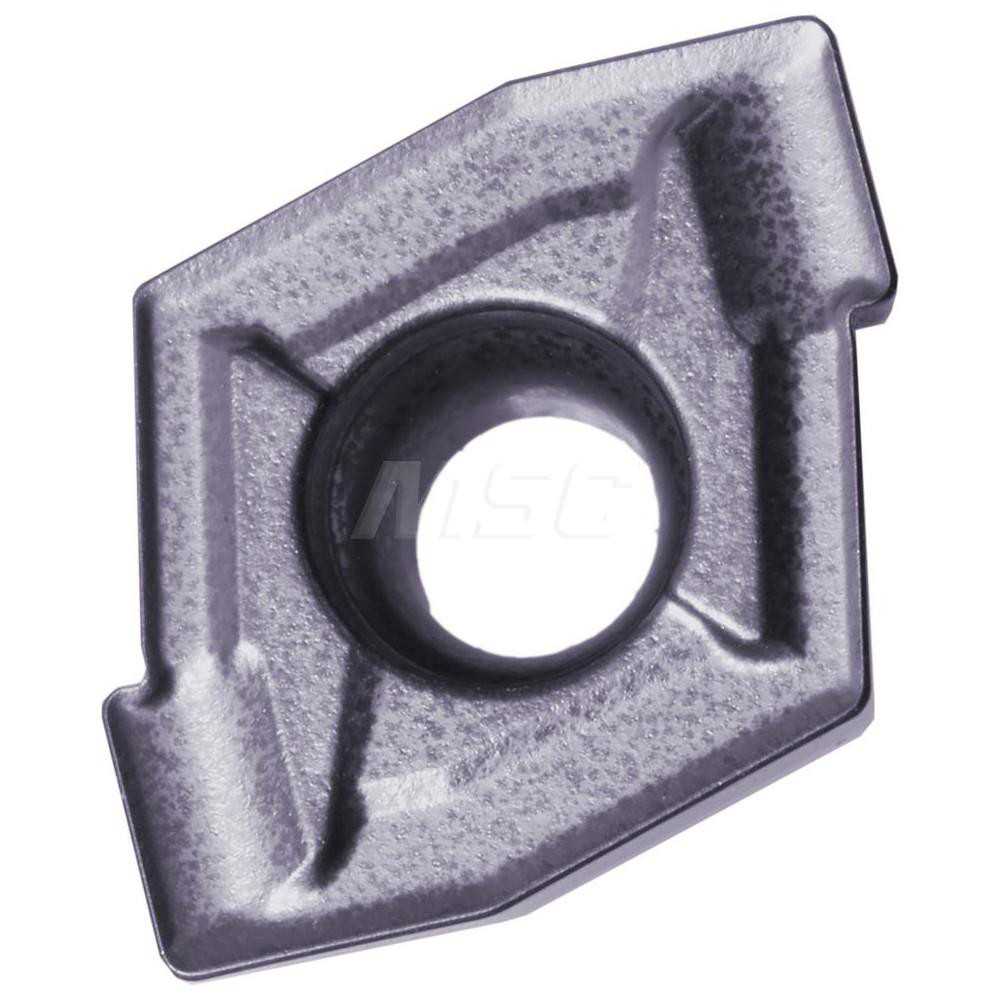

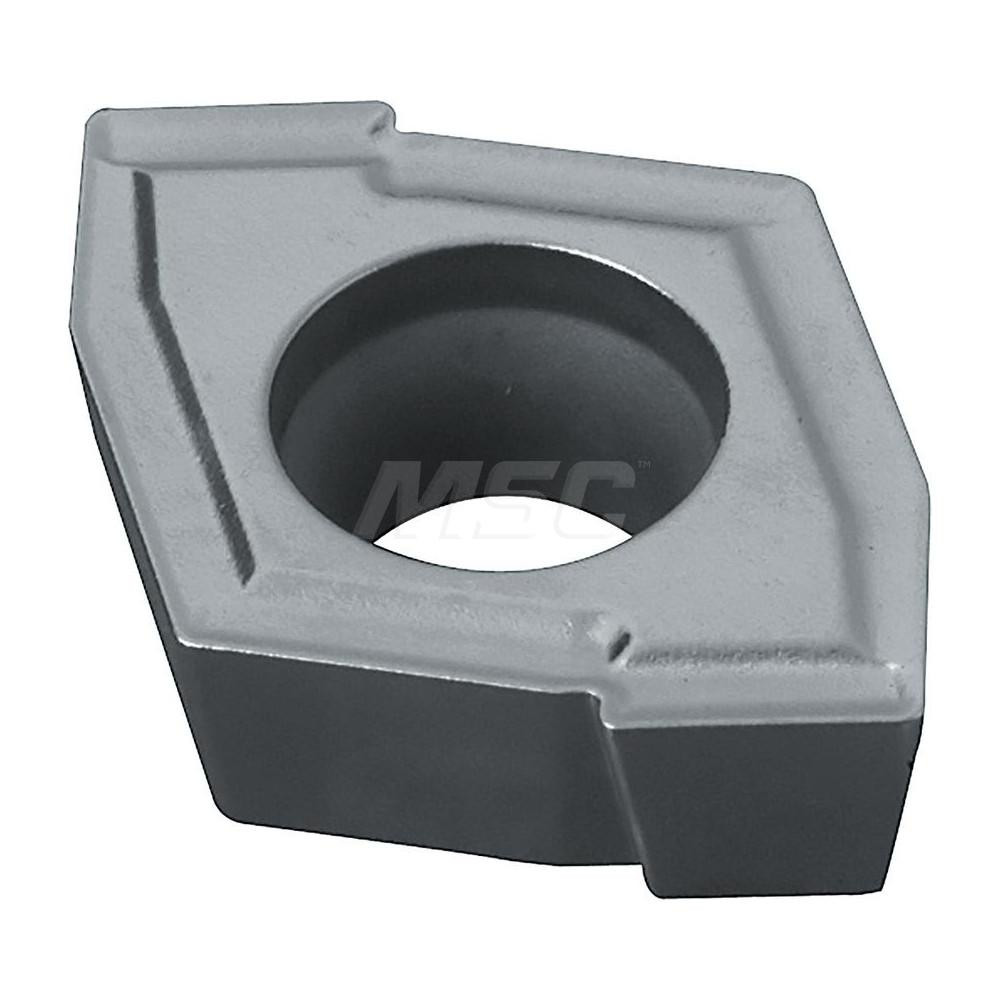

| Insert Compatibility | ZCMT12T304; ZCMT12T306 |
| Collar Diameter (Decimal Inch) | 2.1701 |
| Collar Diameter (mm) | 55.12 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | SB-5085TR |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 49229404 |
