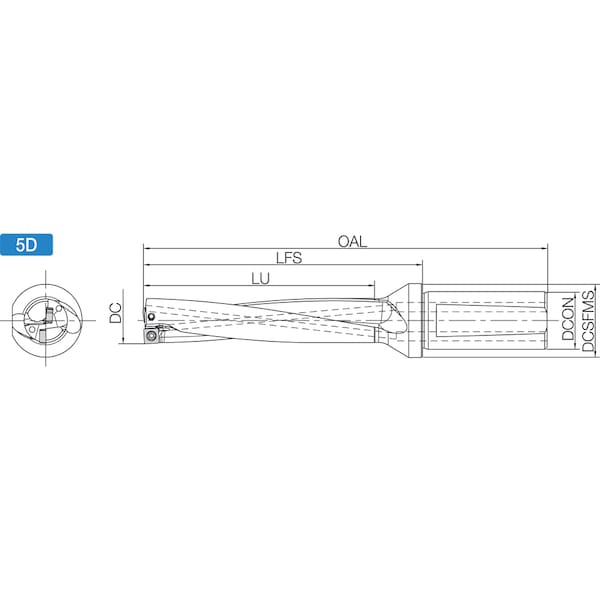

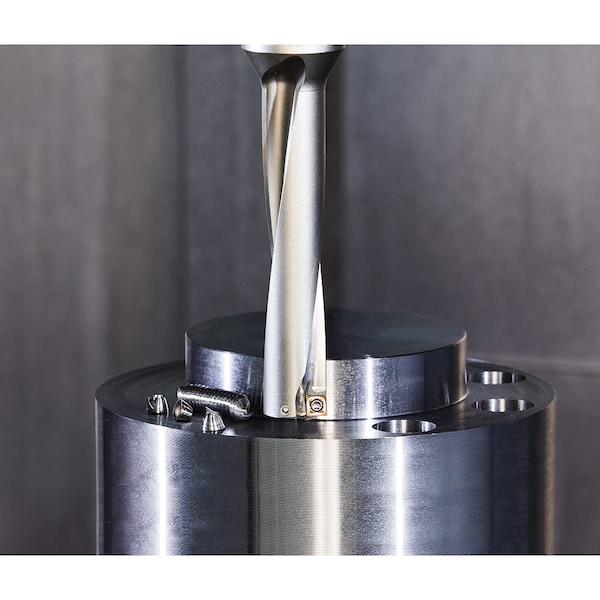

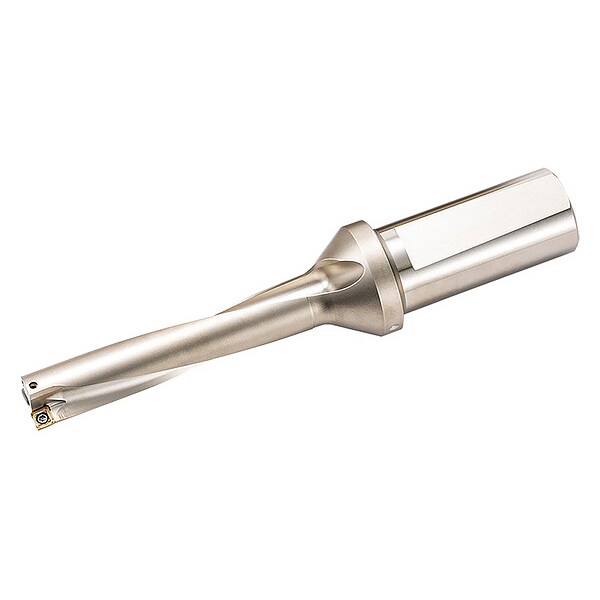

Indexable Insert Drill, S150DRV1250509, 1.2500" Drill Dia, 5xD
| Item | Indexable Drill Bit for Small Holes |
|---|---|
| Overall Length | 10.008 in |
| Shank Dia. | 1-1/2 in |
| Cutting Direction | Right Hand |
| Standards | +0.014/-0.000 in Cutting Dia. Tolerance |
| ISO Number | S150-DRV1250-5-09 |
| ANSI Code | S150DRV1250509 |
| Max. Drilling Depth | 6-1/4 in |
| Toolholder Style | Magic Drill |
| Number of Inserts | 2 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Weldon Flat |
| Central Insert Style | SCMT090410 |
| Depth x Dia. Ratio | 5 xD |
| Package Quantity | 1 |
