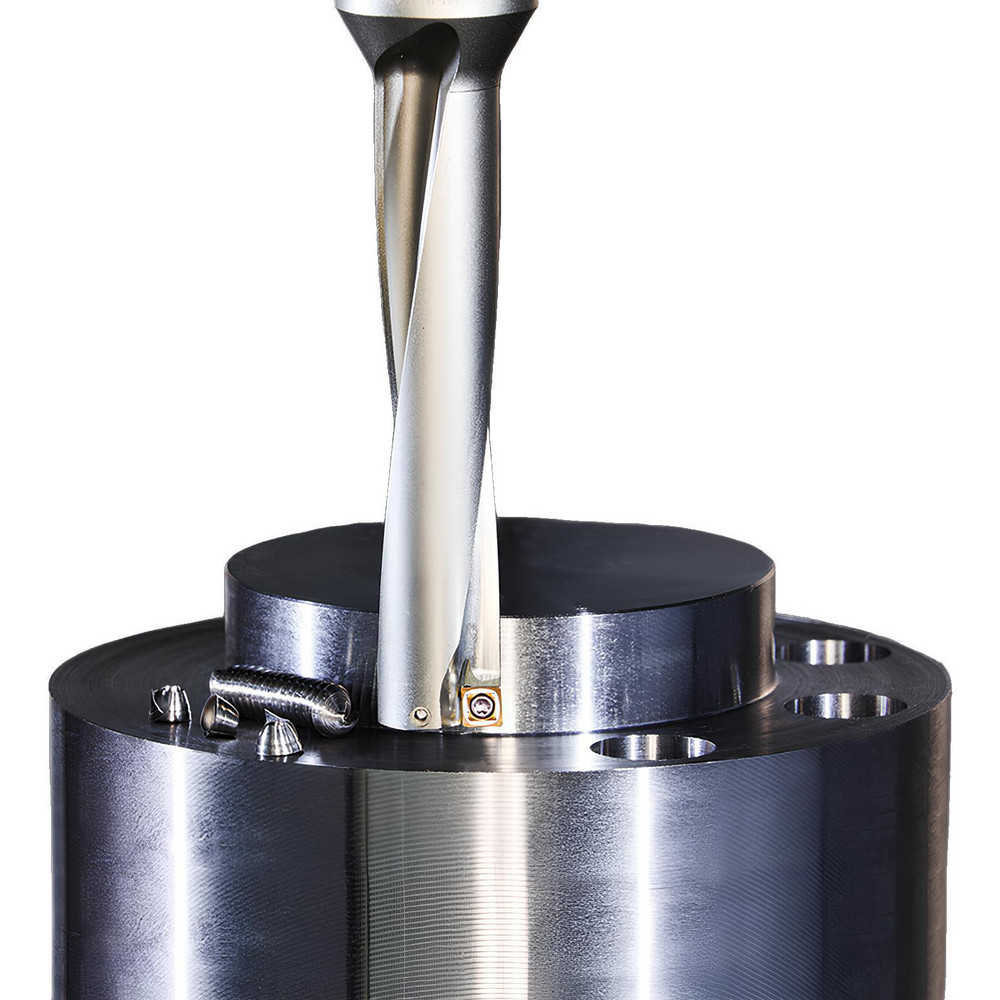

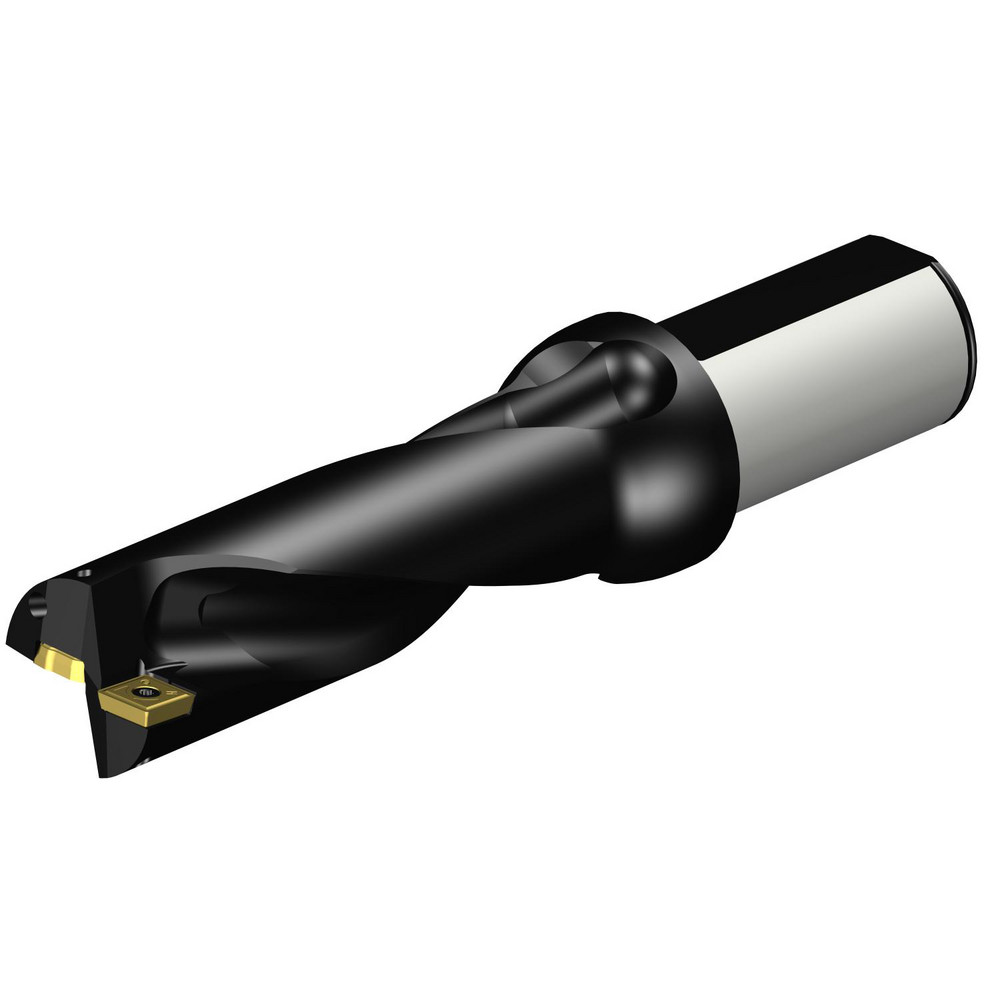

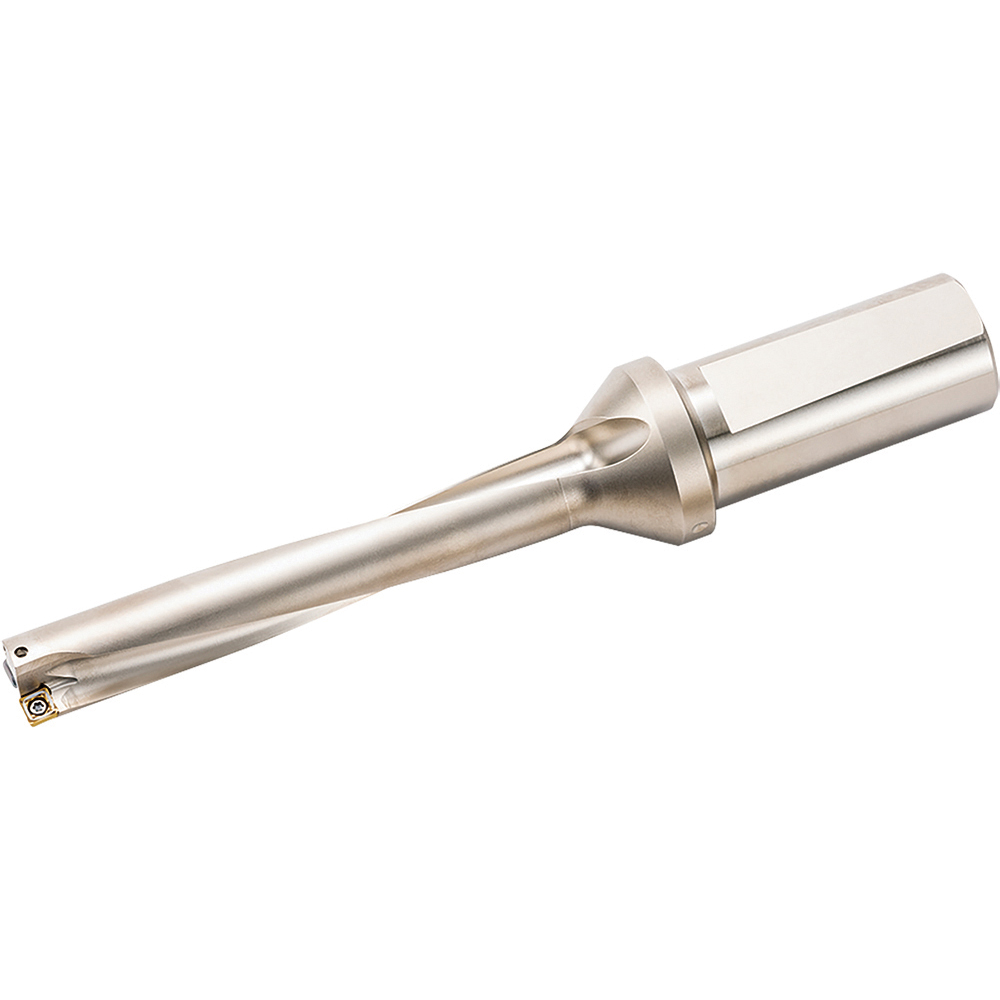

Weldon Flat & Flange Shank, Uses SCMT 140508 & 140510 Inserts, Series DRV
| Compatible Drill Style | DRV |
|---|---|
| Maximum Drill Diameter (Inch) | 1-5/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.6252 |
| Maximum Drill Depth (Inch) | 9-3/4 |
| Maximum Drill Depth (Decimal Inch) | 9.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Compatible Insert Size Code | 140508; 140510 |
| Drill Depth by Diameter Ratio | 6xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

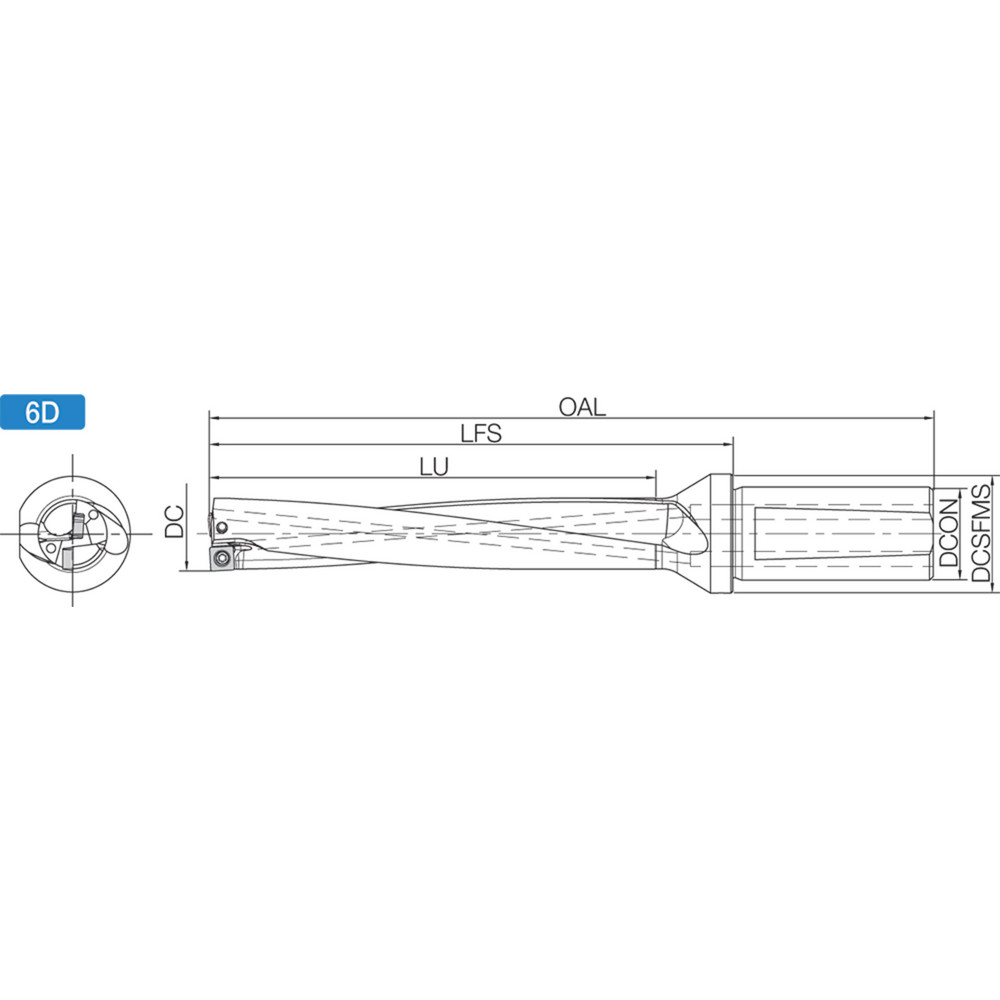

| Overall Length (Decimal Inch) | 13.7421 |
| Series | DRV |
| Flute Length (Decimal Inch) | 9.7500 |
| Body Length (mm) | 280.05 |
| Body Length (Decimal Inch) | 11.0256 |
| Shank Length (Decimal Inch) | 2.7165 |
| Shank Length (mm) | 69.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5430; 0.5870 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SCMT140510-…-I; SCMT140508-…-E |
| Collar Diameter (Decimal Inch) | 1.9291 |
| Collar Diameter (mm) | 49.00 |
| Insert Lock Screw | SB-50120TRPH |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
