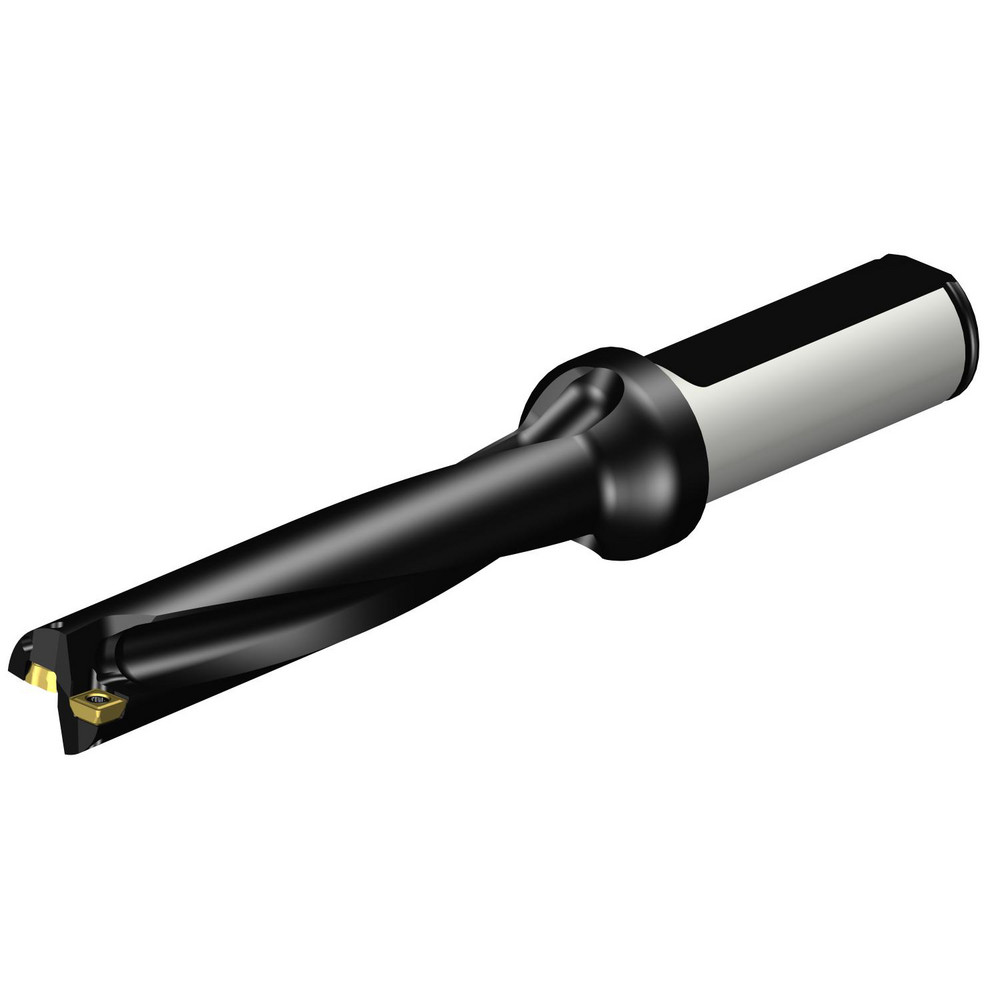

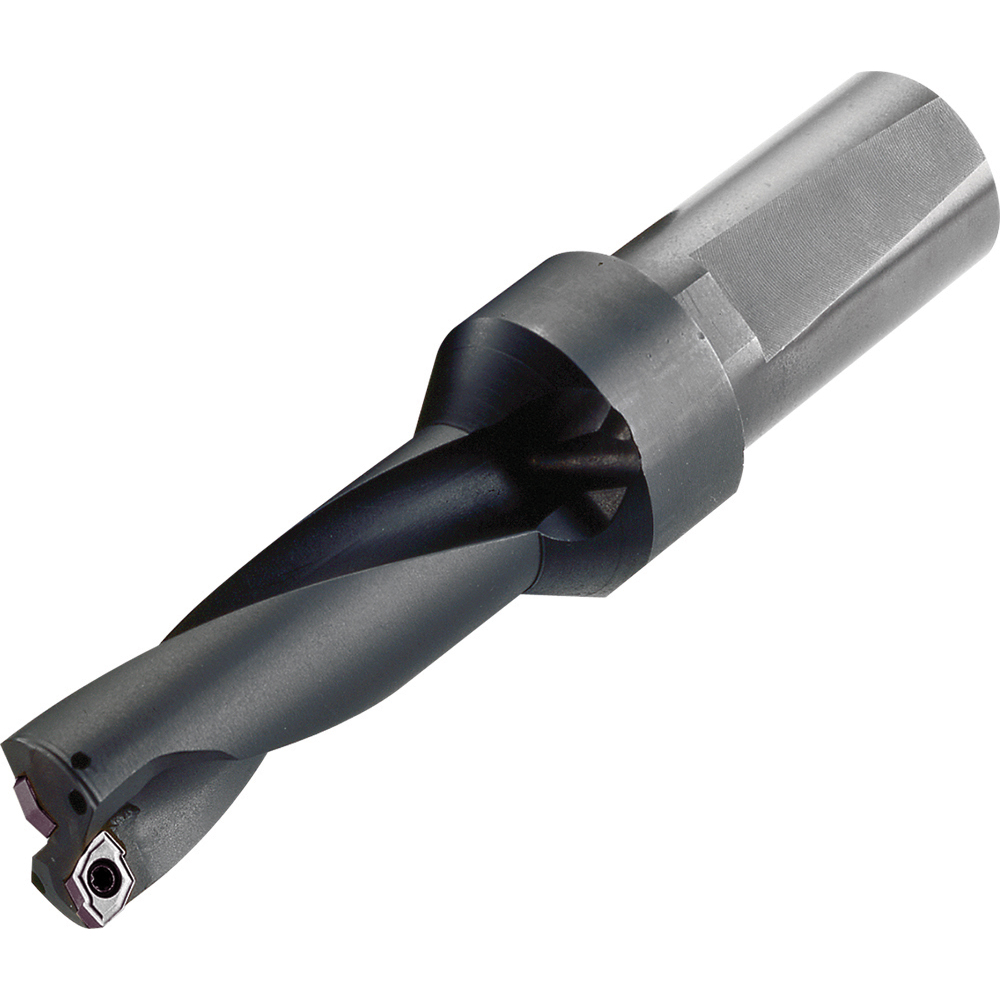

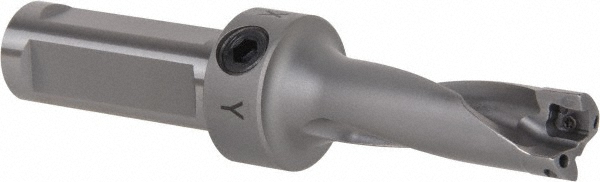

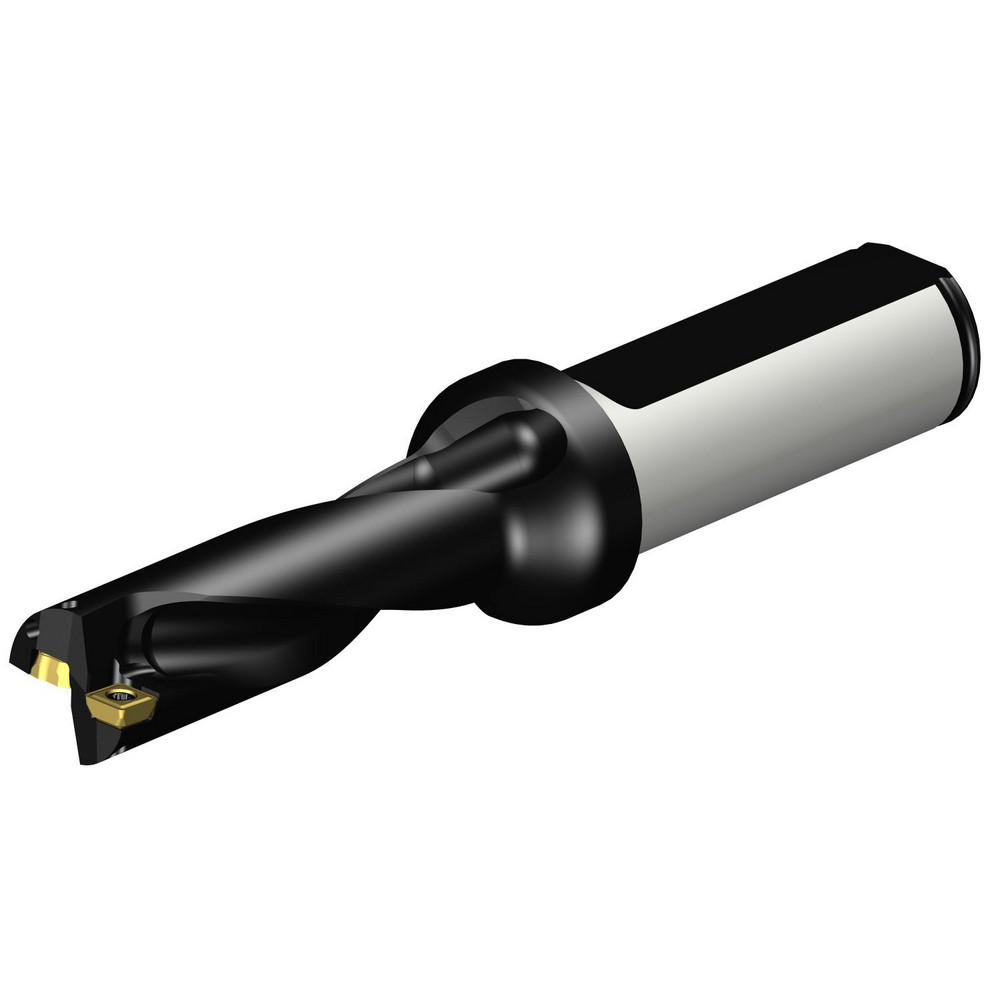

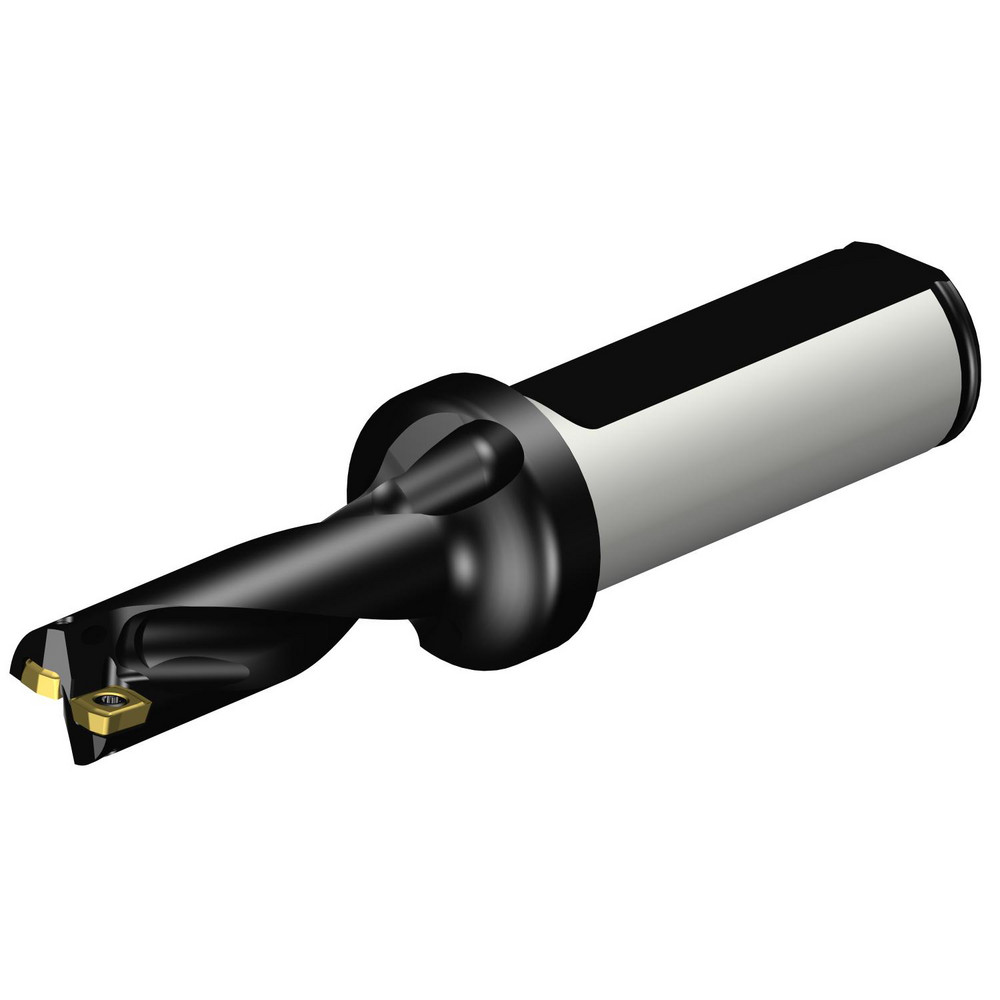

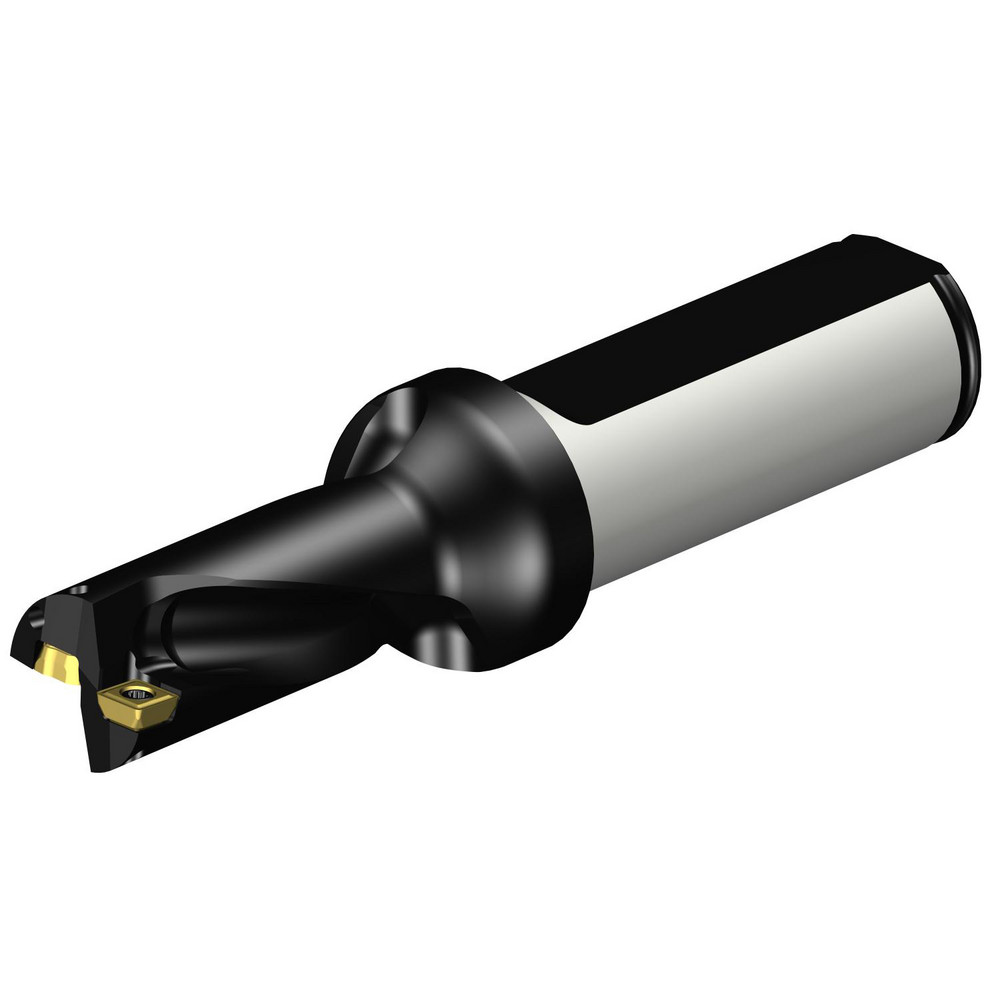

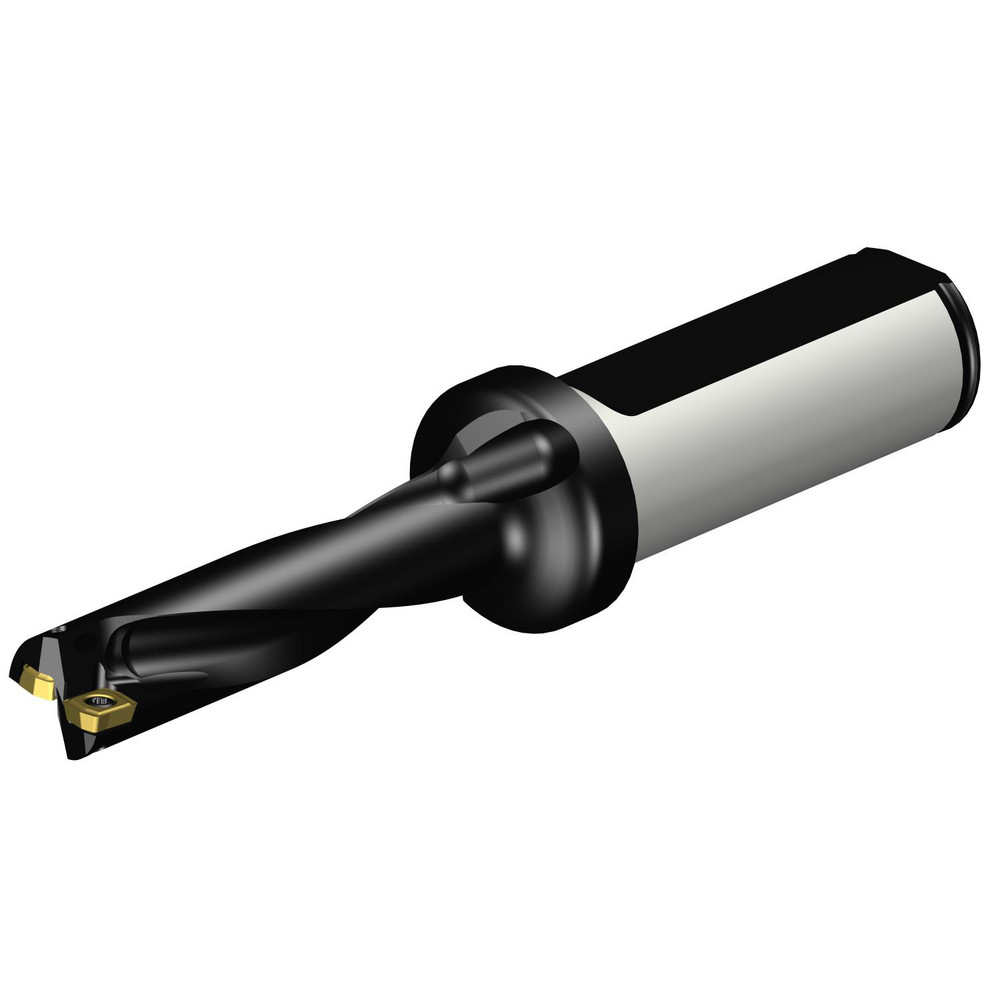

Whistle Notch & Flange Shank, Uses ZCMT 050203 Inserts, Series DRZ
| Compatible Drill Style | DRZ |
|---|---|
| Maximum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Depth (Decimal Inch) | 1.5402 |
| Maximum Drill Depth (mm) | 39.12 |
| Shank Type | Flange; Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZCMT |
| Compatible Insert Size Code | 050203 |

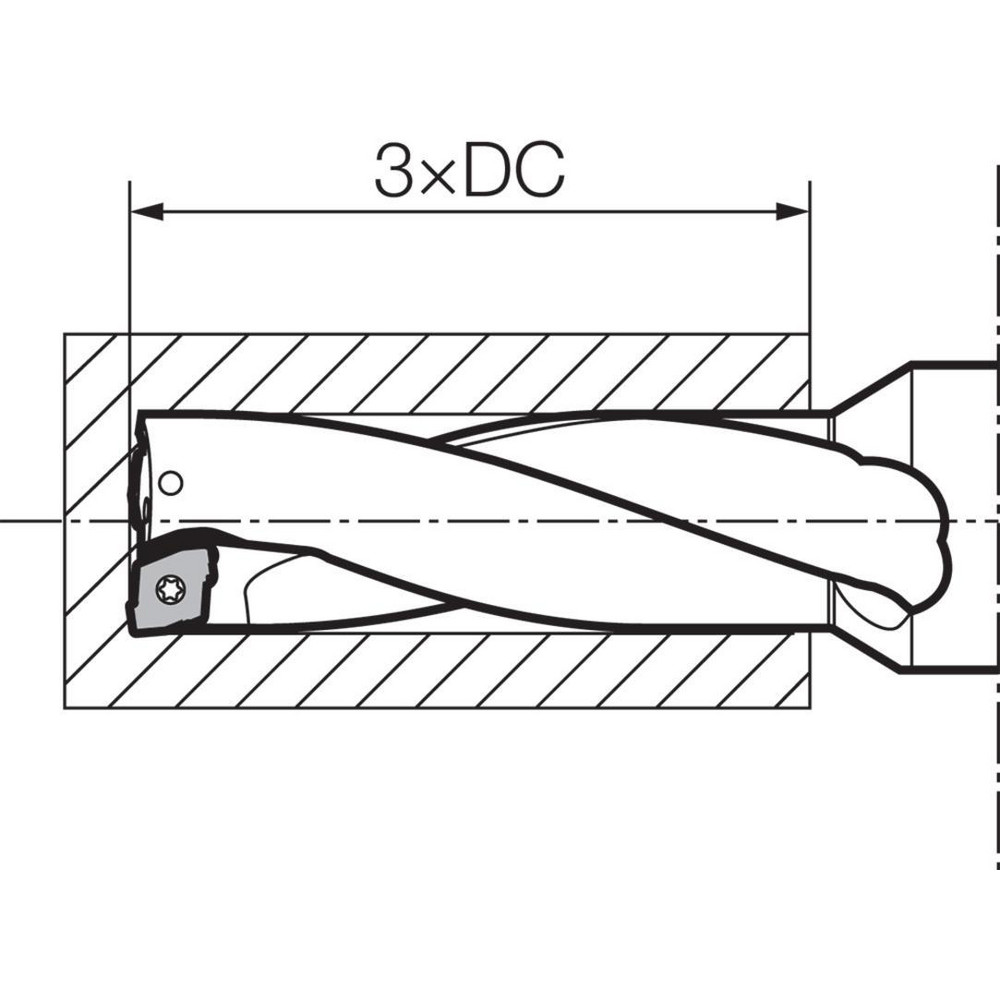

| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |

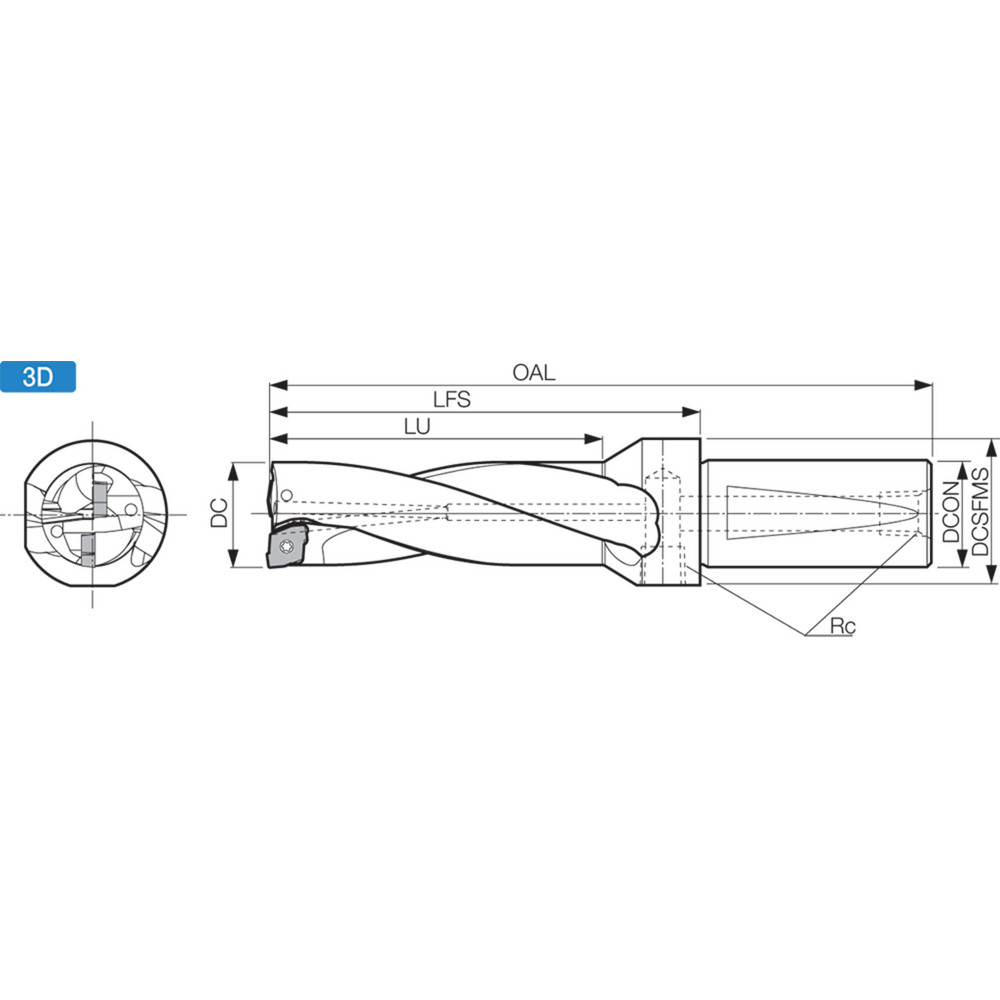

| Overall Length (Decimal Inch) | 4.2701 |
| Series | DRZ |
| Flute Length (Decimal Inch) | 1.5402 |
| Flute Length (mm) | 39.12 |
| Body Length (mm) | 65.53 |
| Body Length (Decimal Inch) | 2.5799 |
| Shank Length (Decimal Inch) | 1.6902 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1969 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | ZCMT050203 |
| Collar Diameter (Decimal Inch) | 1.0598 |
| Collar Diameter (mm) | 26.92 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
| Insert Lock Screw | SB-2045TR |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 42494534 |
