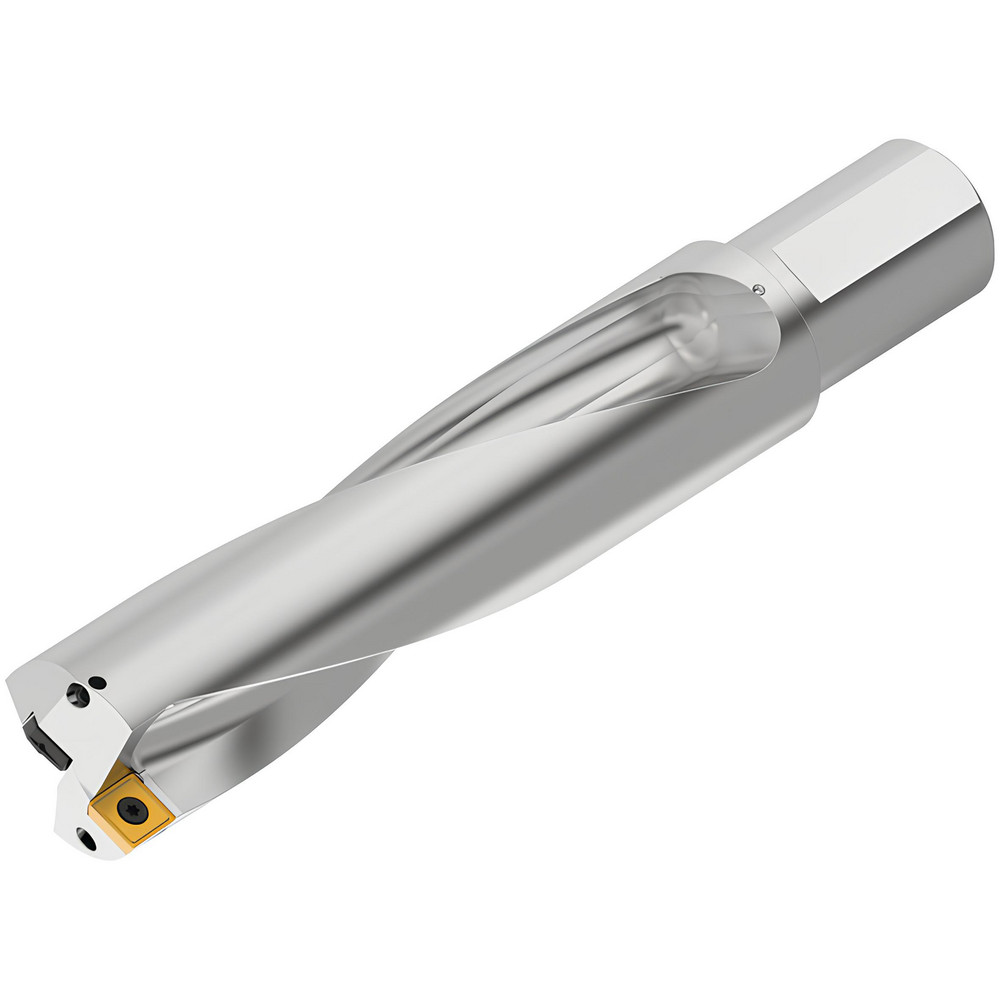

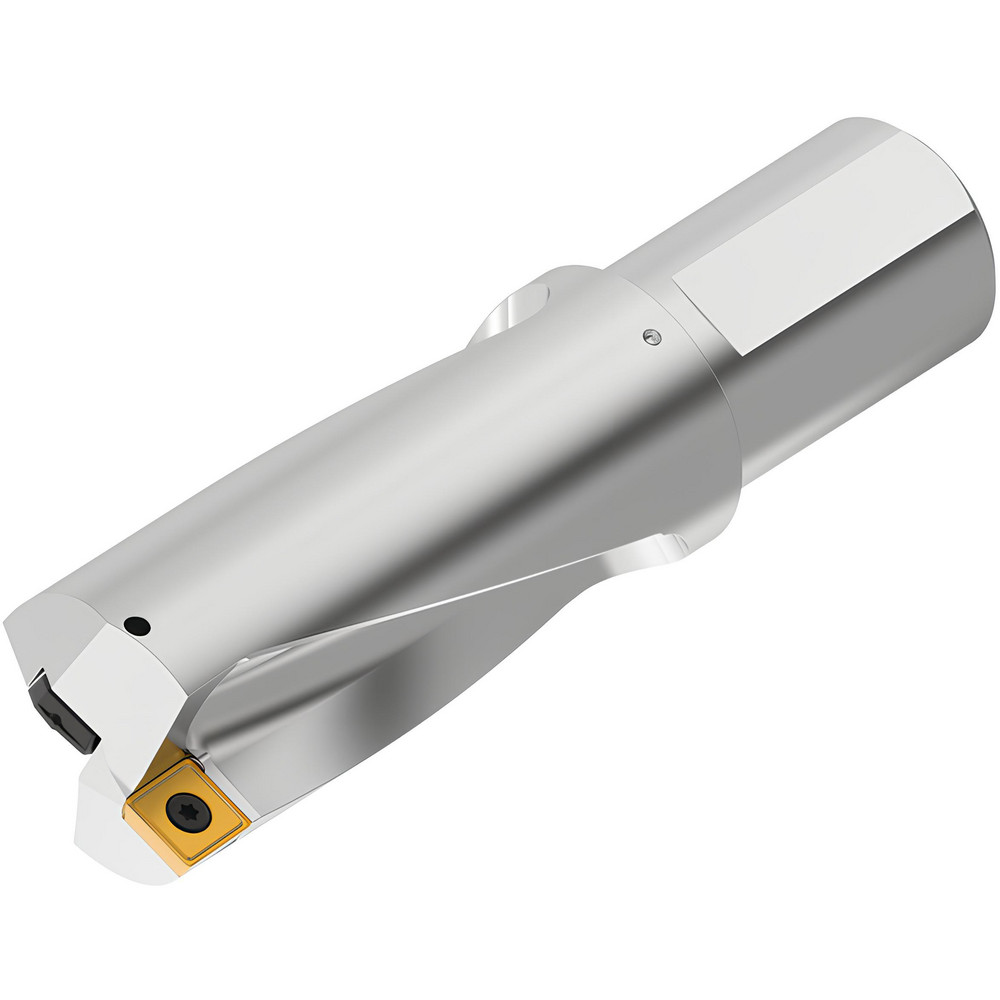

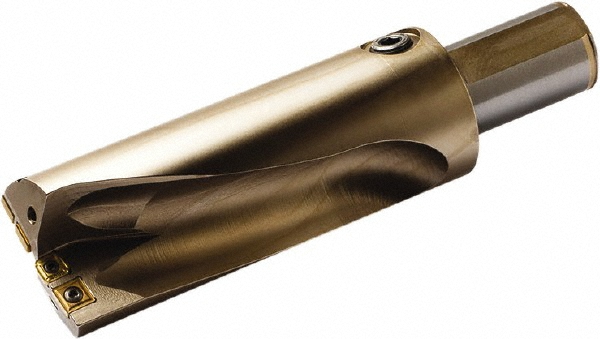

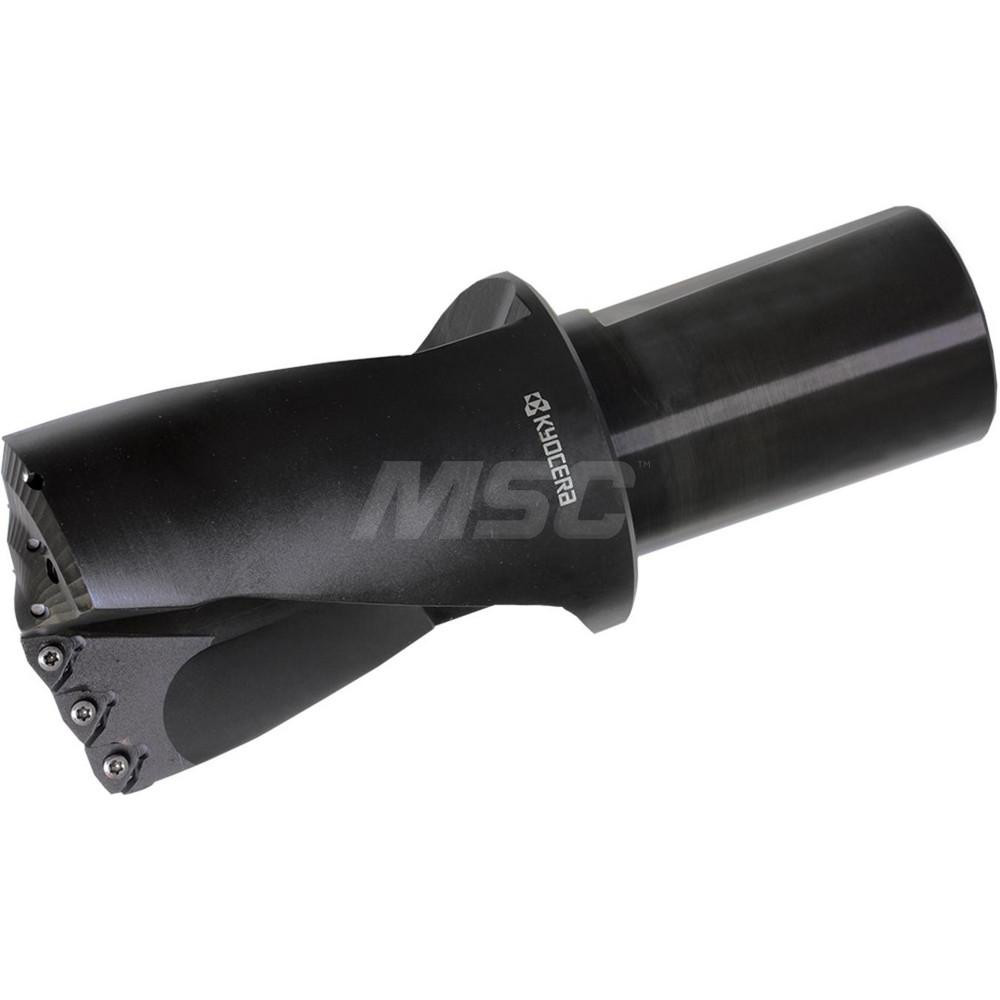

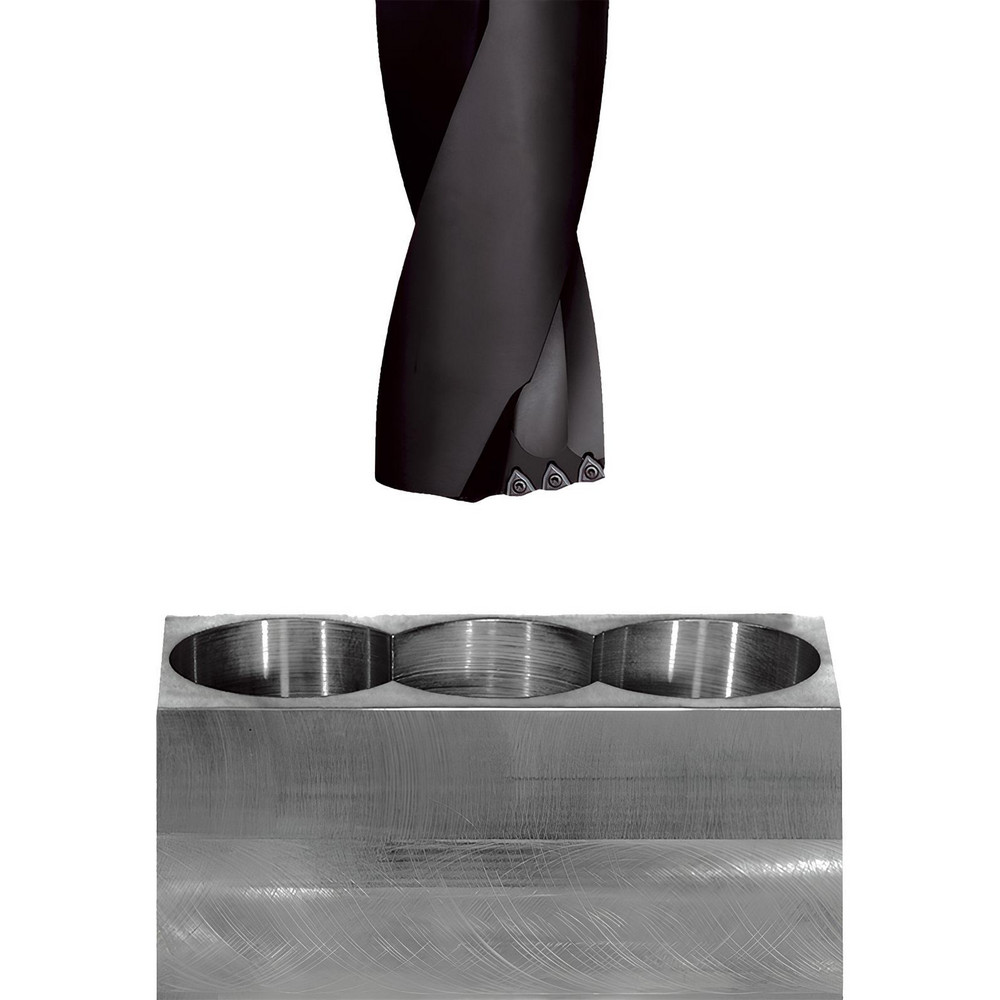

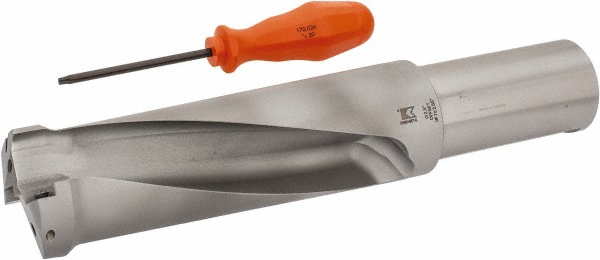

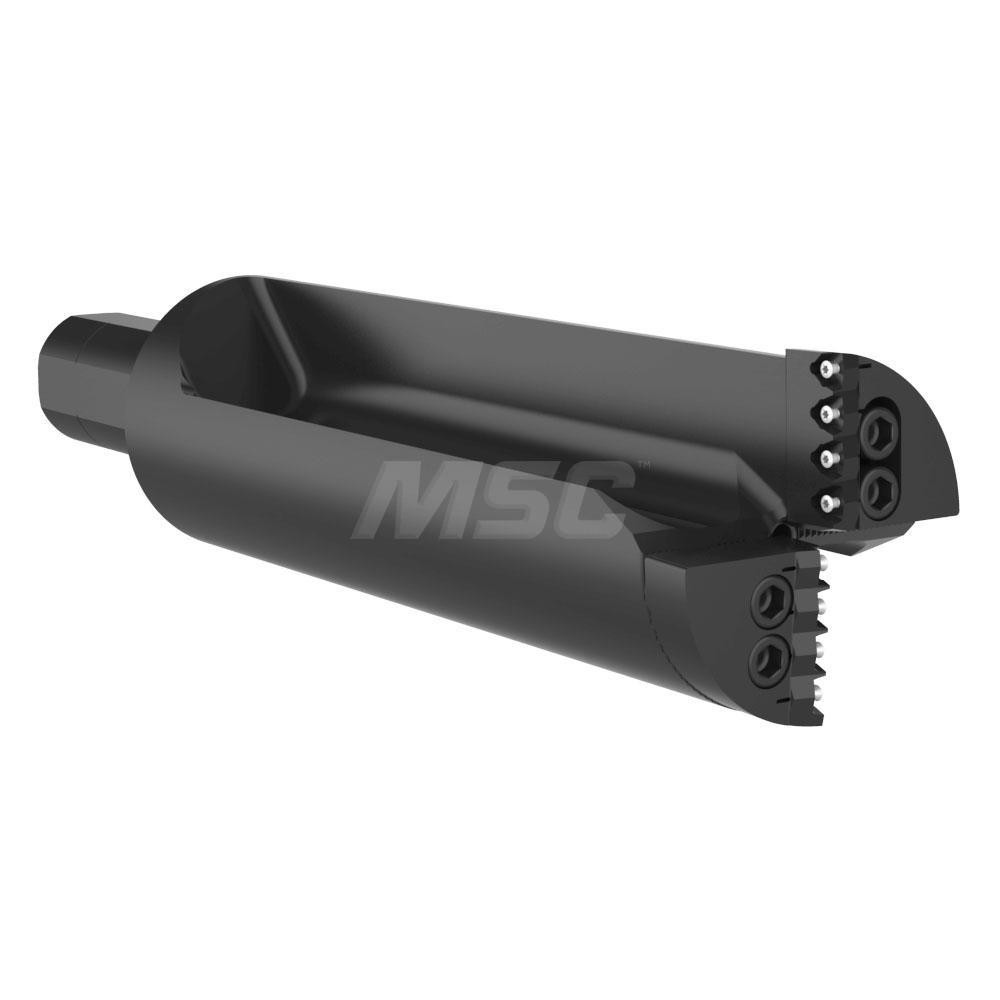

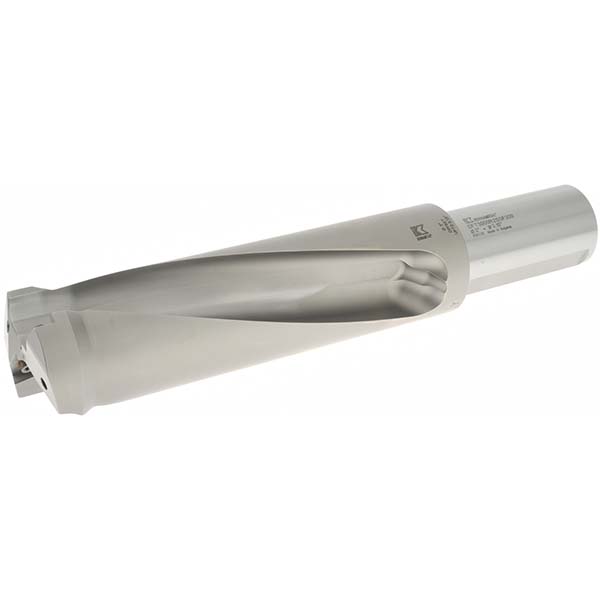

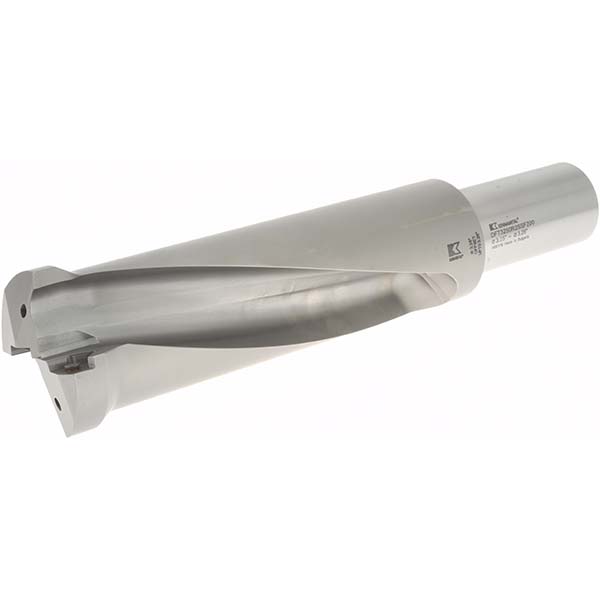

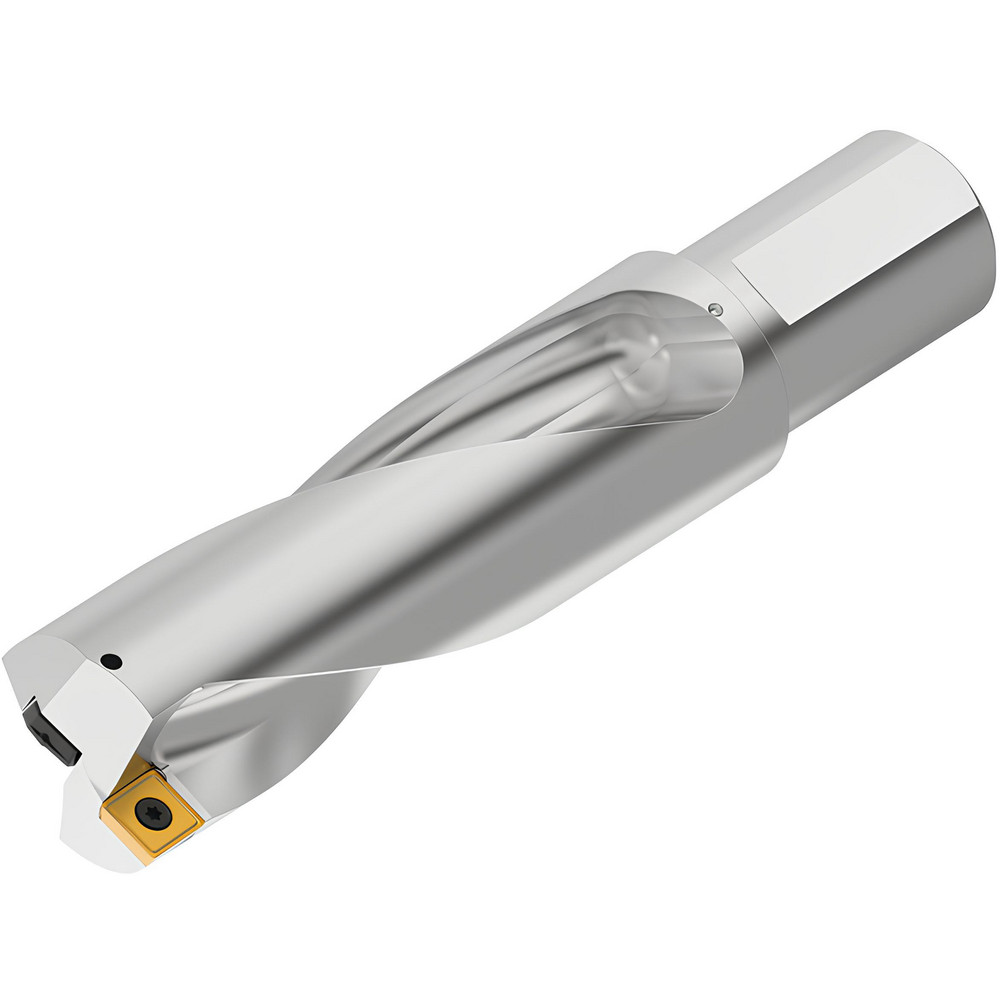

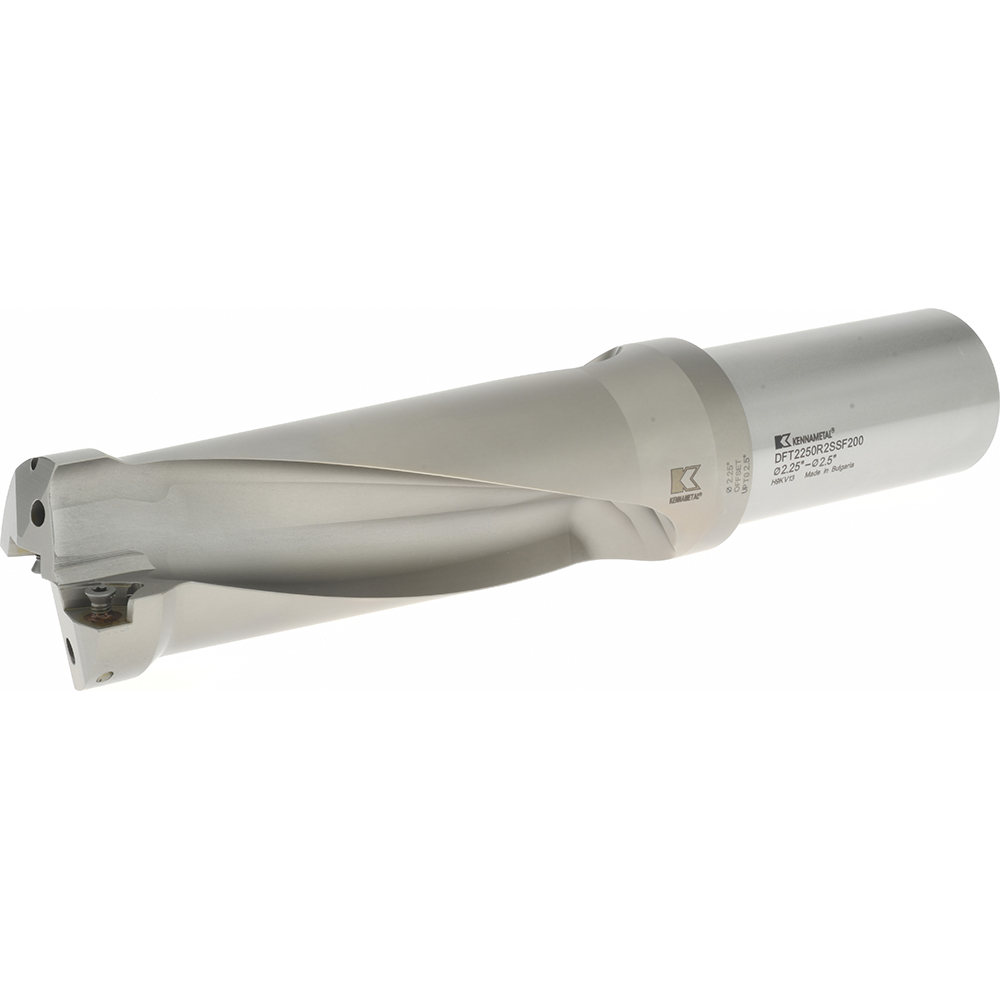

Weldon Flat & Flange Shank, Uses WCMX 06T308 Inserts, Series HD
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 2-5/16 |
| Maximum Drill Diameter (Decimal Inch) | 2.3118 |
| Maximum Drill Depth (Decimal Inch) | 6.9299 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WCMX |
| Compatible Insert Size Code | 06T308 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

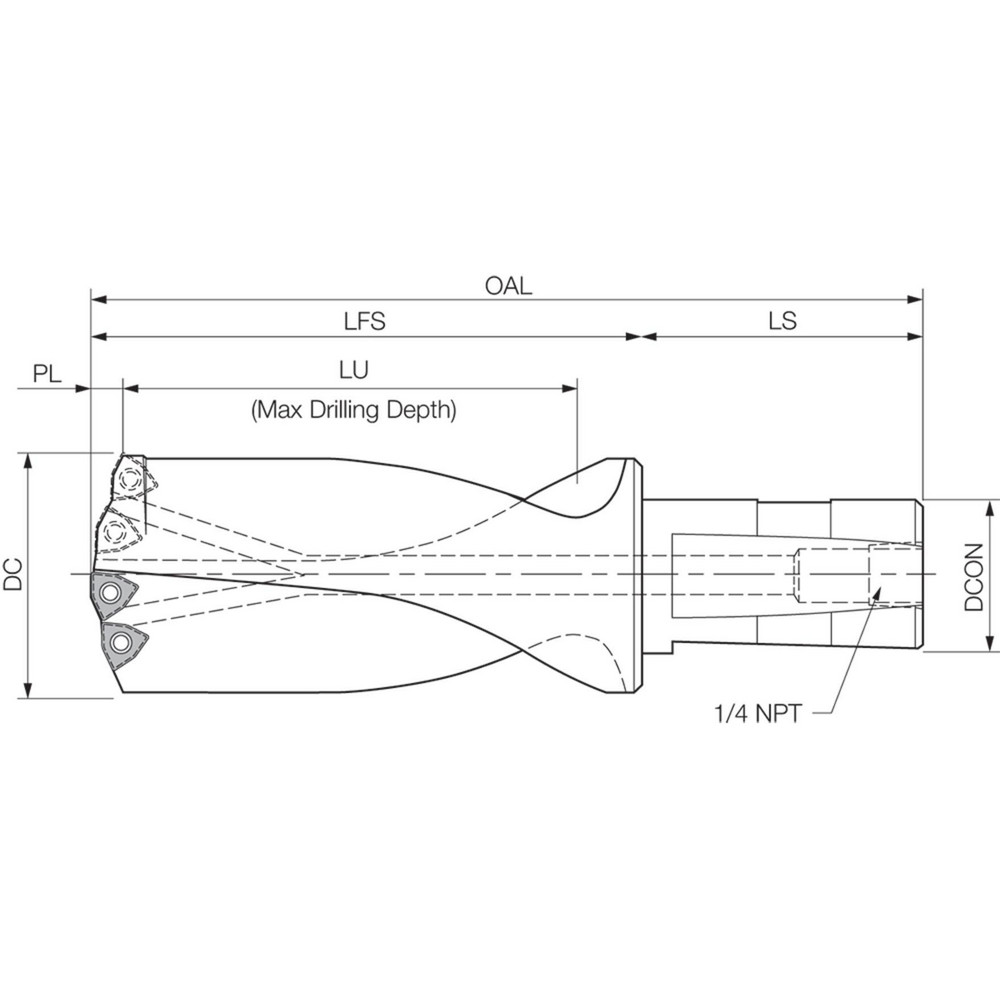

| Overall Length (Decimal Inch) | 11.7201 |
| Series | HD |
| Flute Length (Decimal Inch) | 6.9299 |
| Body Length (Decimal Inch) | 8.4701 |
| Shank Length (Decimal Inch) | 3.2500 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WCMX06T308-M1A; WCMX06T308-M1 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Insert Lock Screw | SCR-30 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 83667675 |
