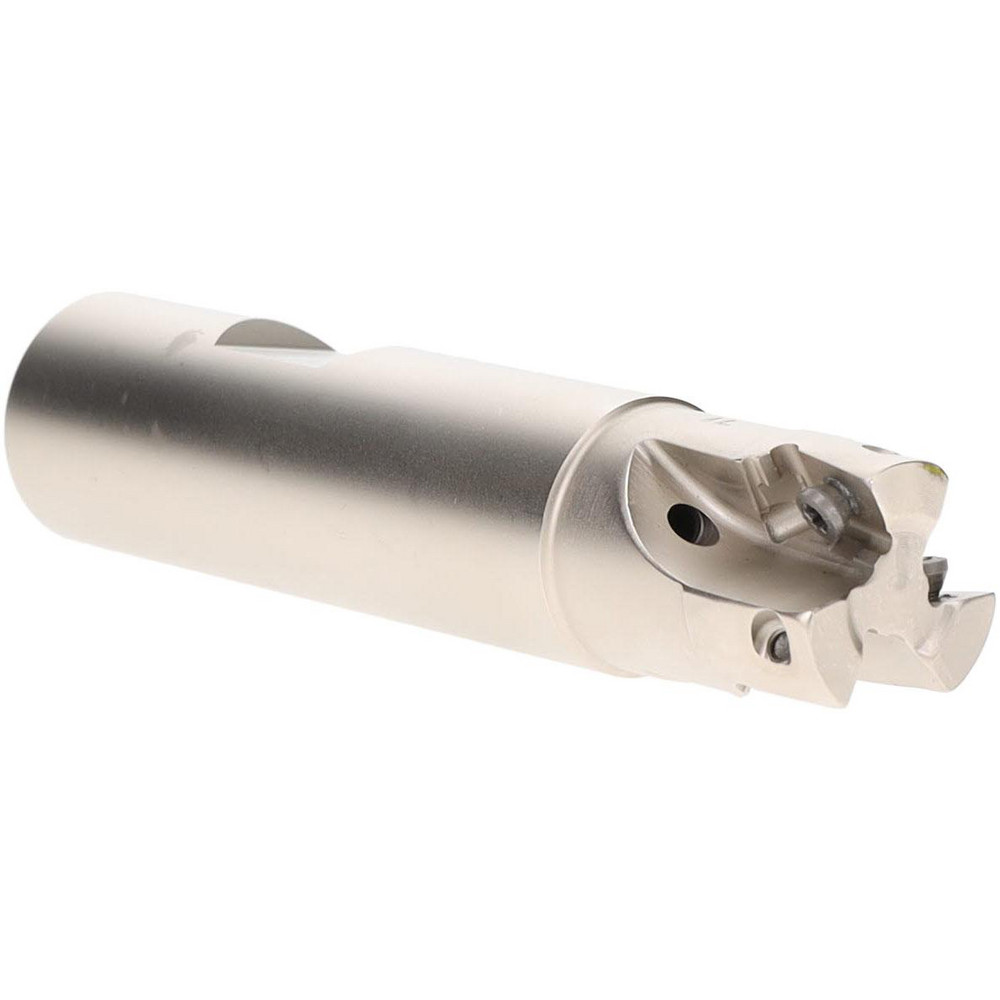

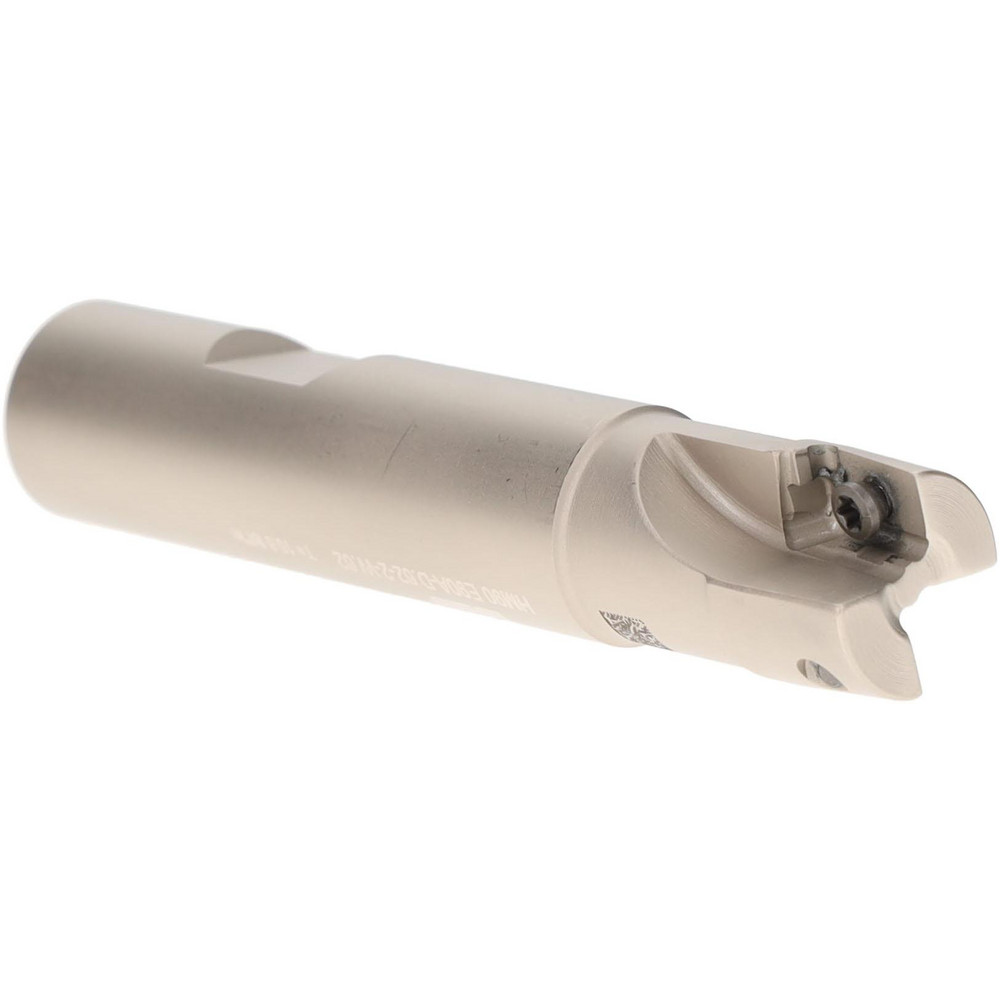

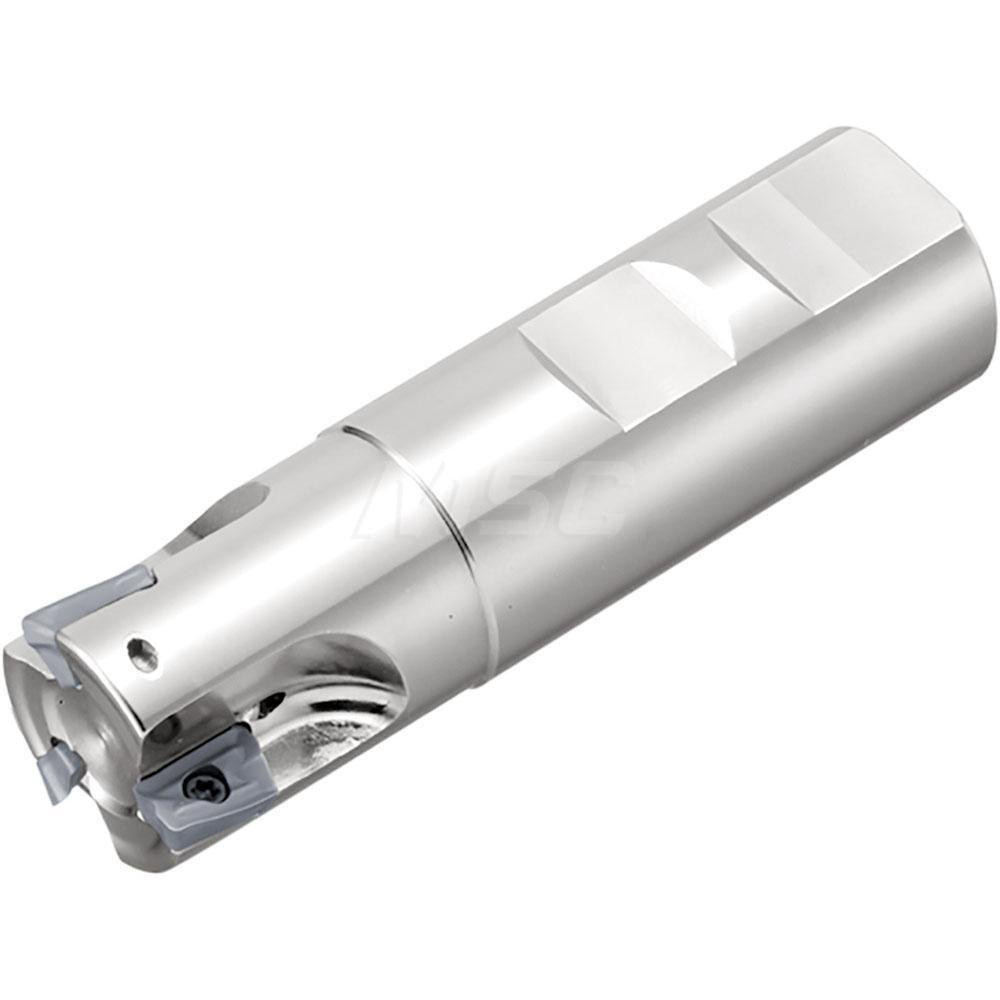

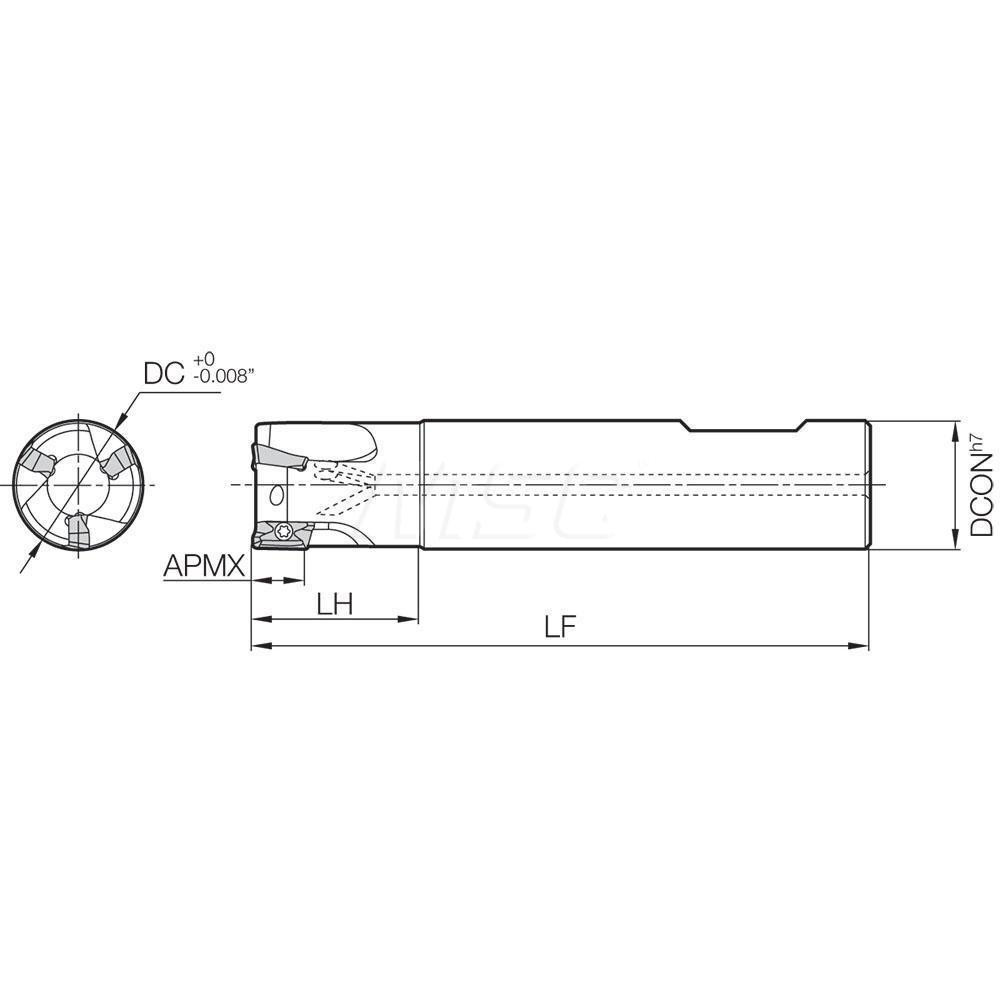

Uses (3) BDMT 11T3 Inserts, Through Coolant, 3.05" OAL
| Cutting Diameter | 3/4 |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Overall Length (Decimal Inch) | 3.0500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | MEC |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (mm) | 15.88 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 3 |
| Tool Material | Steel |
| Series | MEC |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.0260 |
| Head Length (Decimal Inch) | 1.024 |
| Maximum RPM | 41000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Insert Compatibility | BDMT 11T3 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 3.0000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 34968891 |
