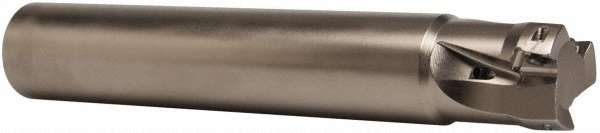

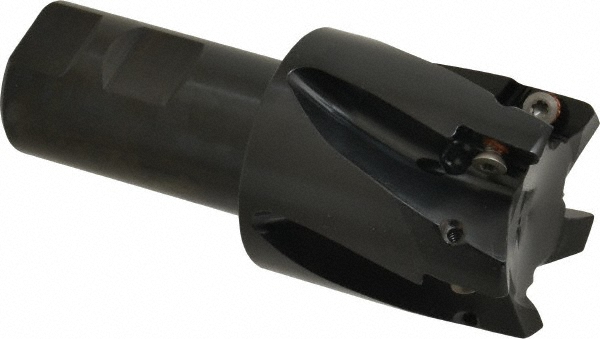

Uses (2) BDMT 1704 Inserts, Through Coolant, 7.87" OAL

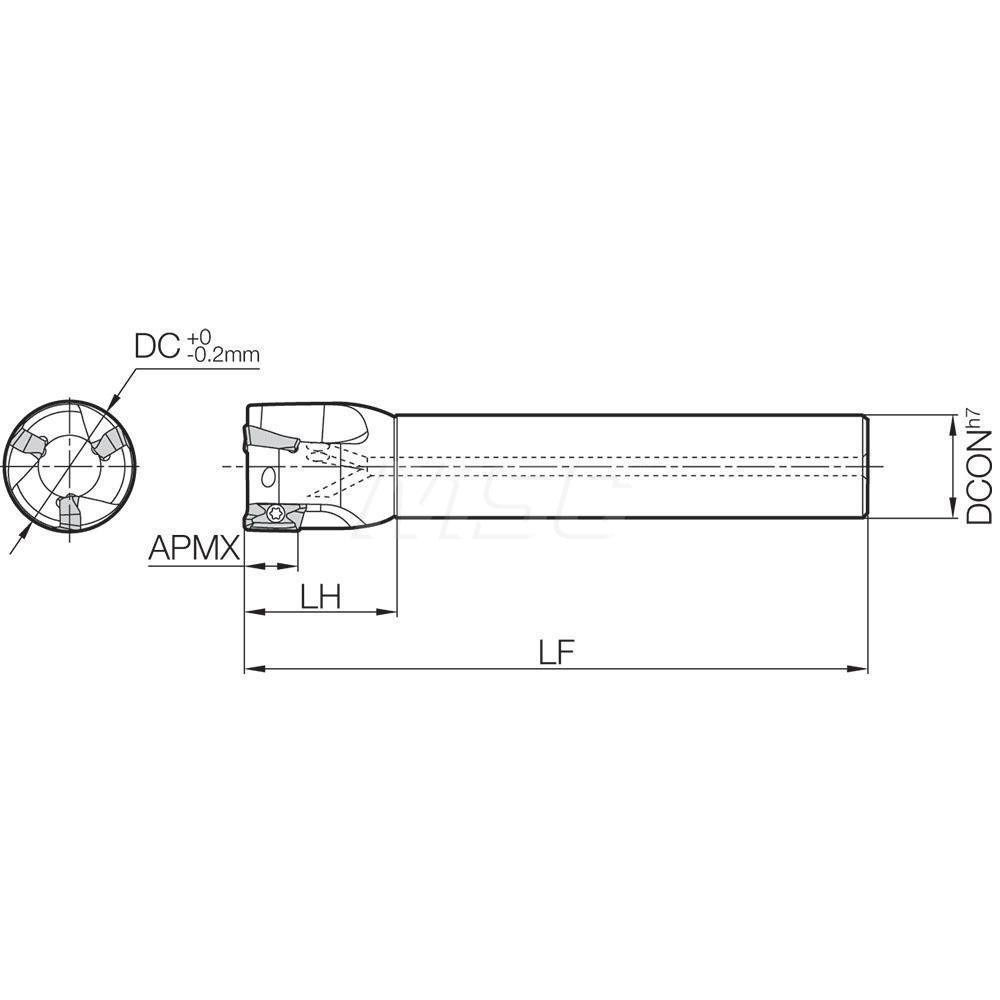

| Cutting Diameter | 1-1/4 |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Overall Length (Decimal Inch) | 7.8700 |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Cutter Style | MEC |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (mm) | 31.75 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5 |
| Tool Material | Steel |
| Series | MEC |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.3110 |
| Head Length (Decimal Inch) | 2.559 |
| Maximum RPM | 30000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Insert Compatibility | BDMT 1704 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 7.8740 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 69372845 |
