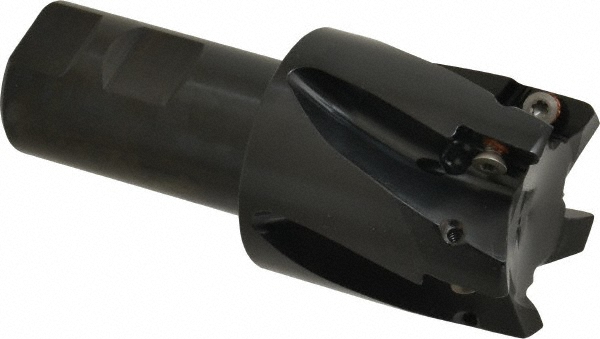

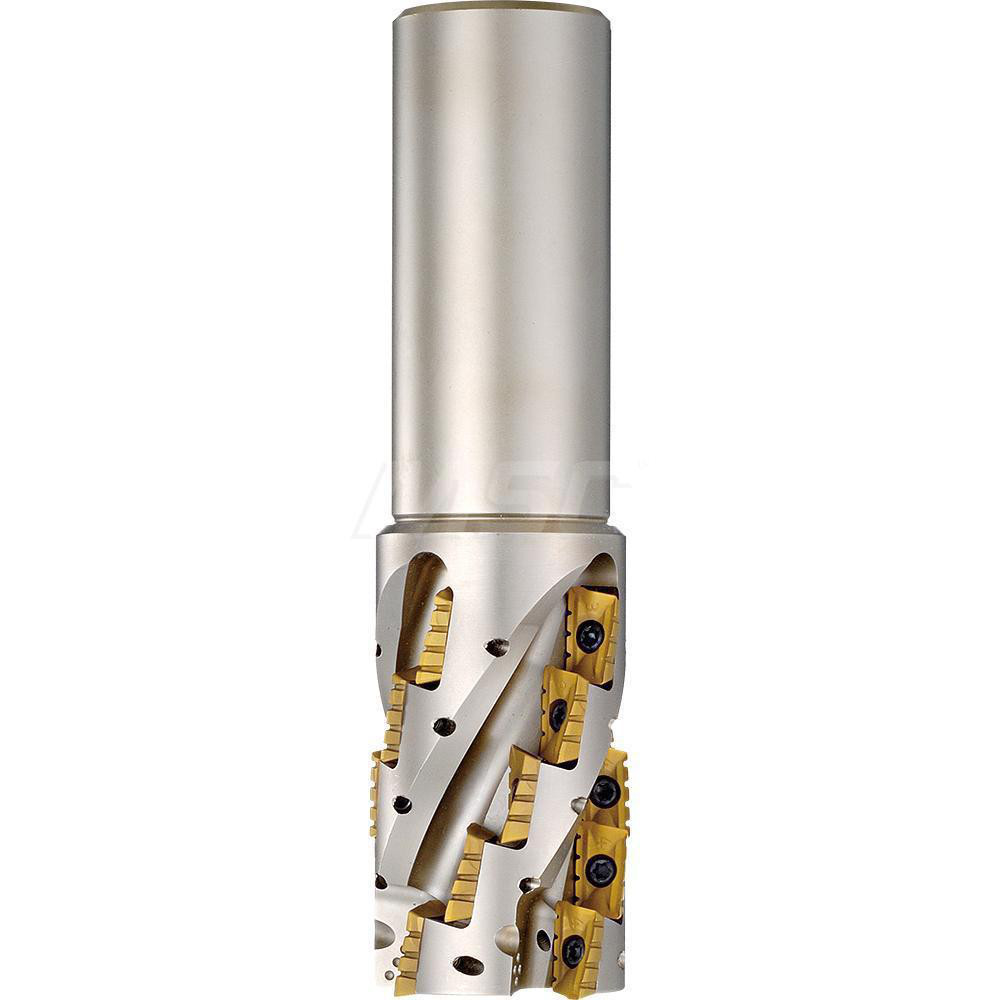

Uses (12) LOMU 1505..ER-GH;LOMU 1505..ER-GM;LOMU 1505..ER-SM Inserts, Through Coolant, 5.252" OAL

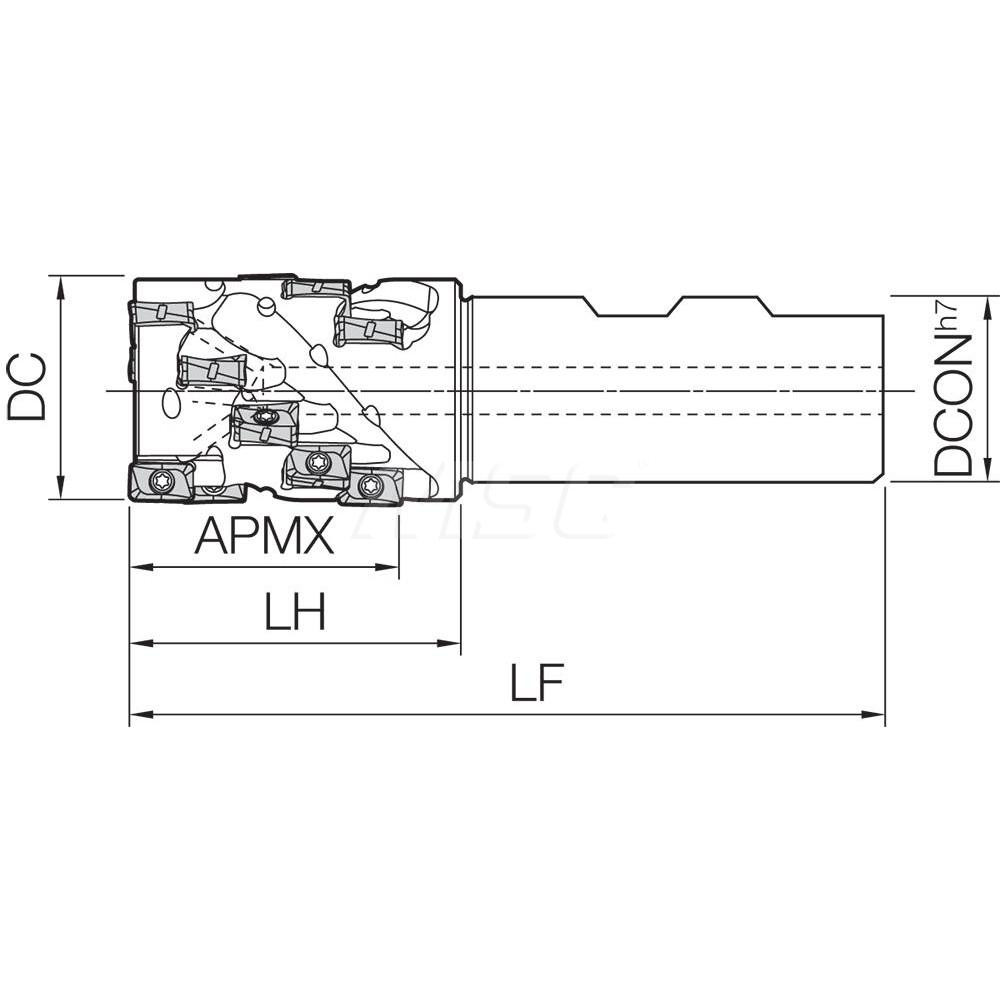

| Cutting Diameter | 2 |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Overall Length (Decimal Inch) | 5.2520 |
| Maximum Depth of Cut (Decimal Inch) | 2.0860 |
| Cutter Style | MEW |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (mm) | 38.10 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | M-Four |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.7720 |
| Head Length (Decimal Inch) | 2.48 |
| Tool Application | Helical |
| Insert Compatibility | LOMU 1505..ER-SM; LOMU 1505..ER-GM; LOMU 1505..ER-GH |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 35182344 |
