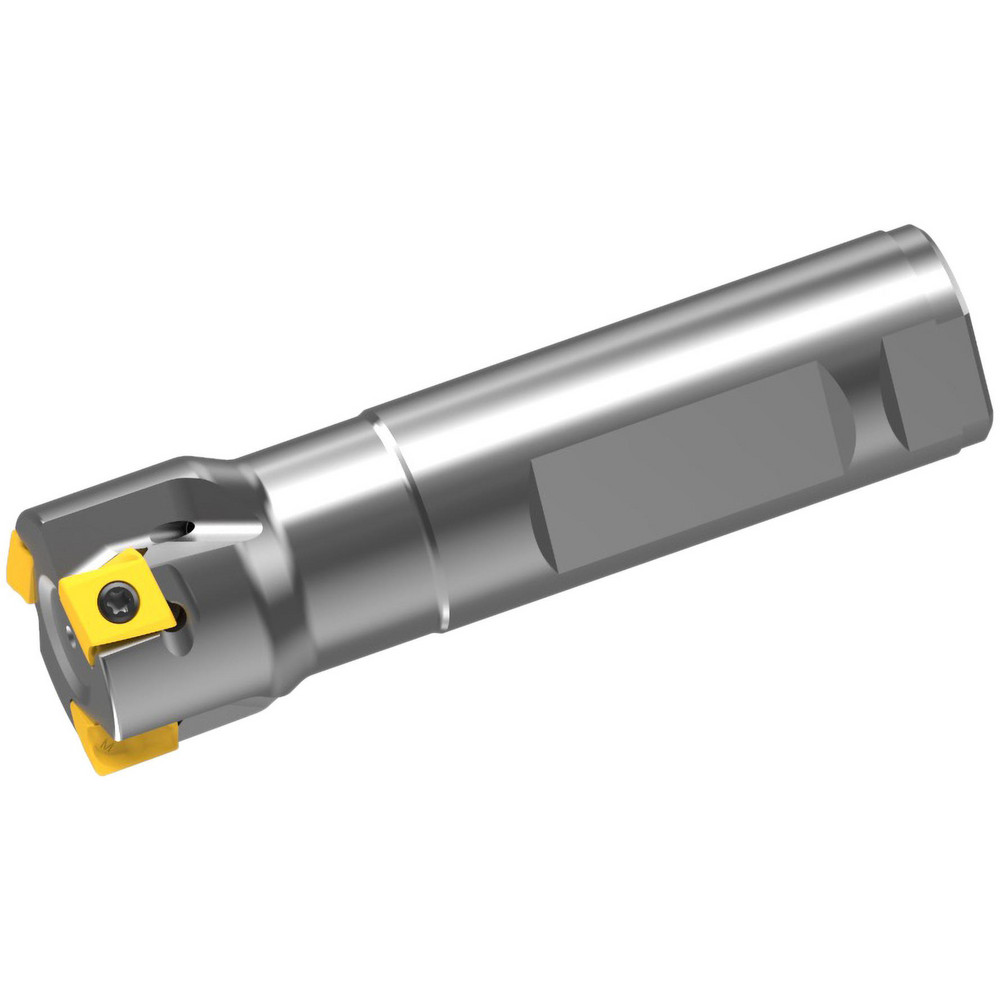

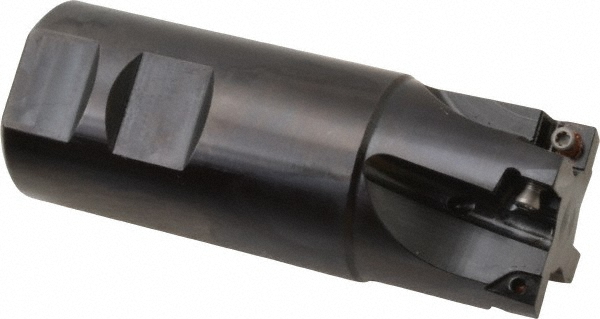

Uses (7) GOMT 160408ER-D;JOMT 160408ER-D Inserts, Through Coolant, 6.649" OAL

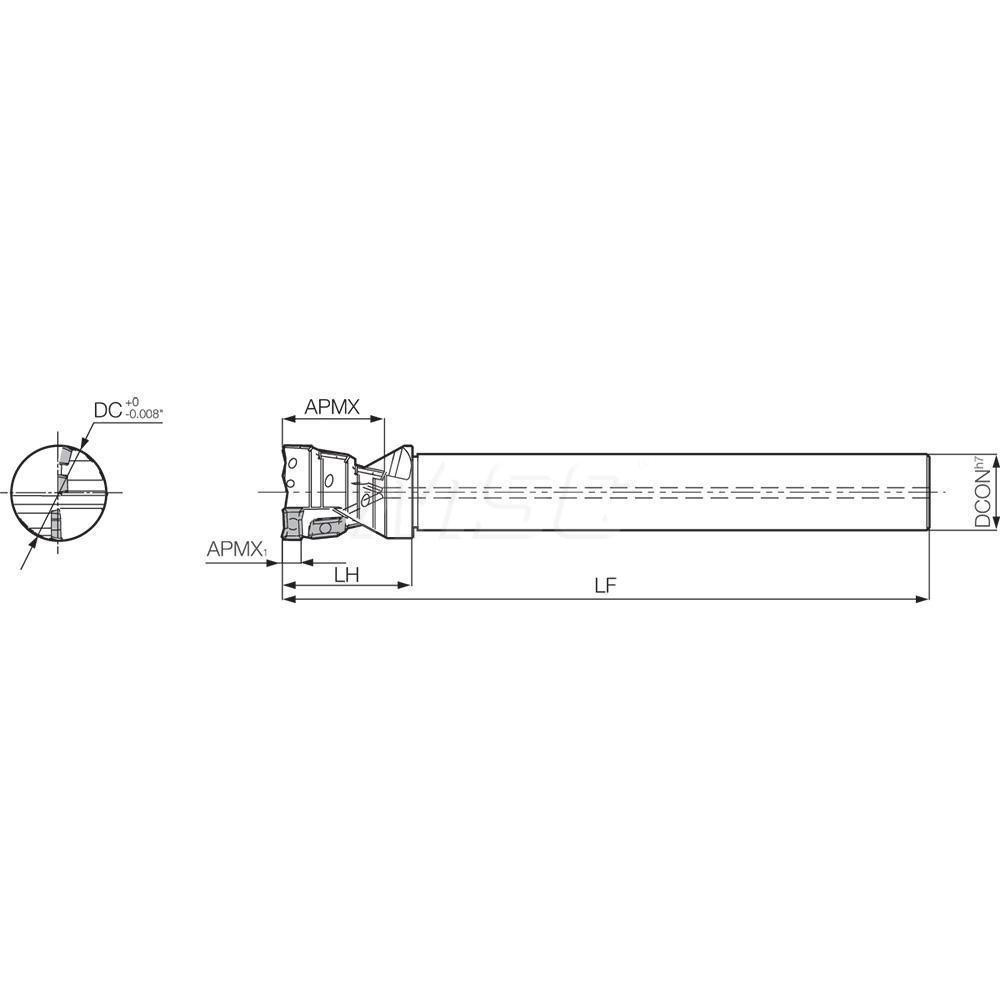

| Cutting Diameter | 1.9840 in |
|---|---|
| Cutting Diameter (mm) | 50.39 |
| Overall Length (Decimal Inch) | 6.6490 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutter Style | MEY |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (mm) | 38.10 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 6 |
| Tool Material | Steel |
| Series | MEY |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.9370 |
| Head Length (Decimal Inch) | 2.126 |

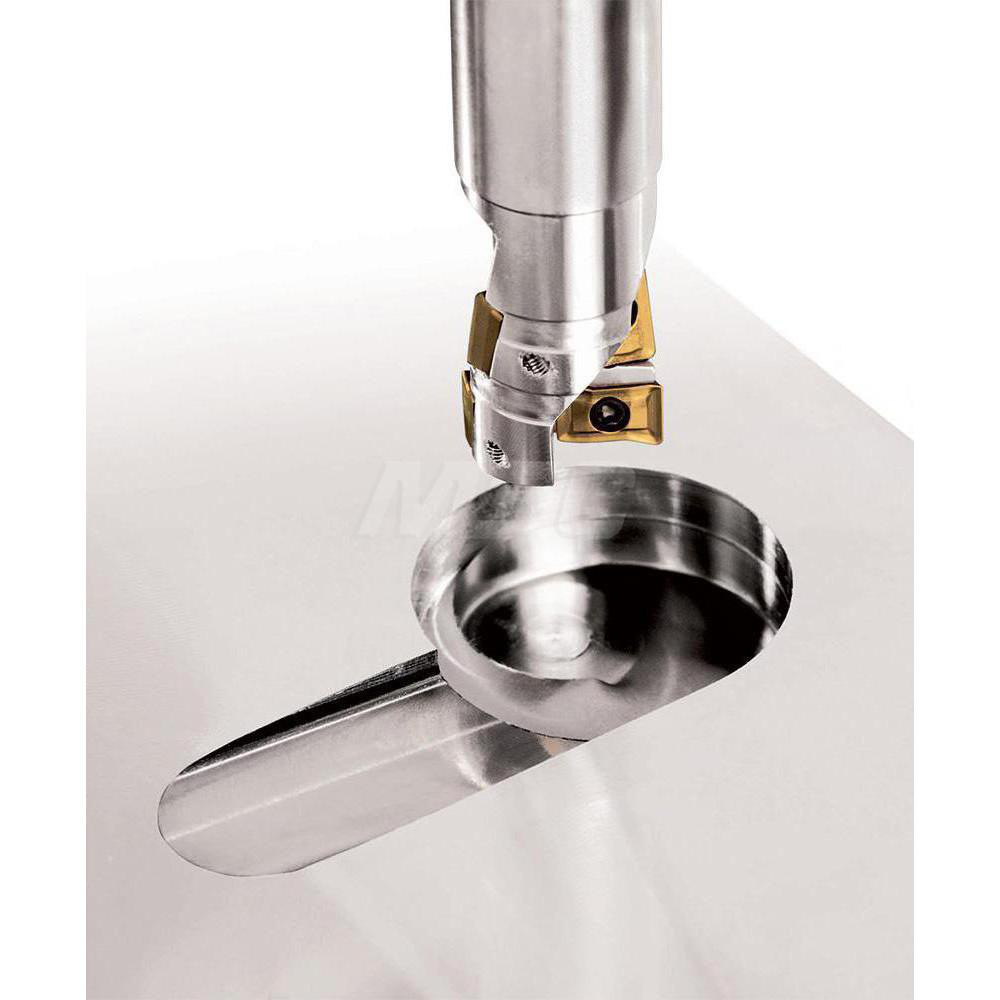

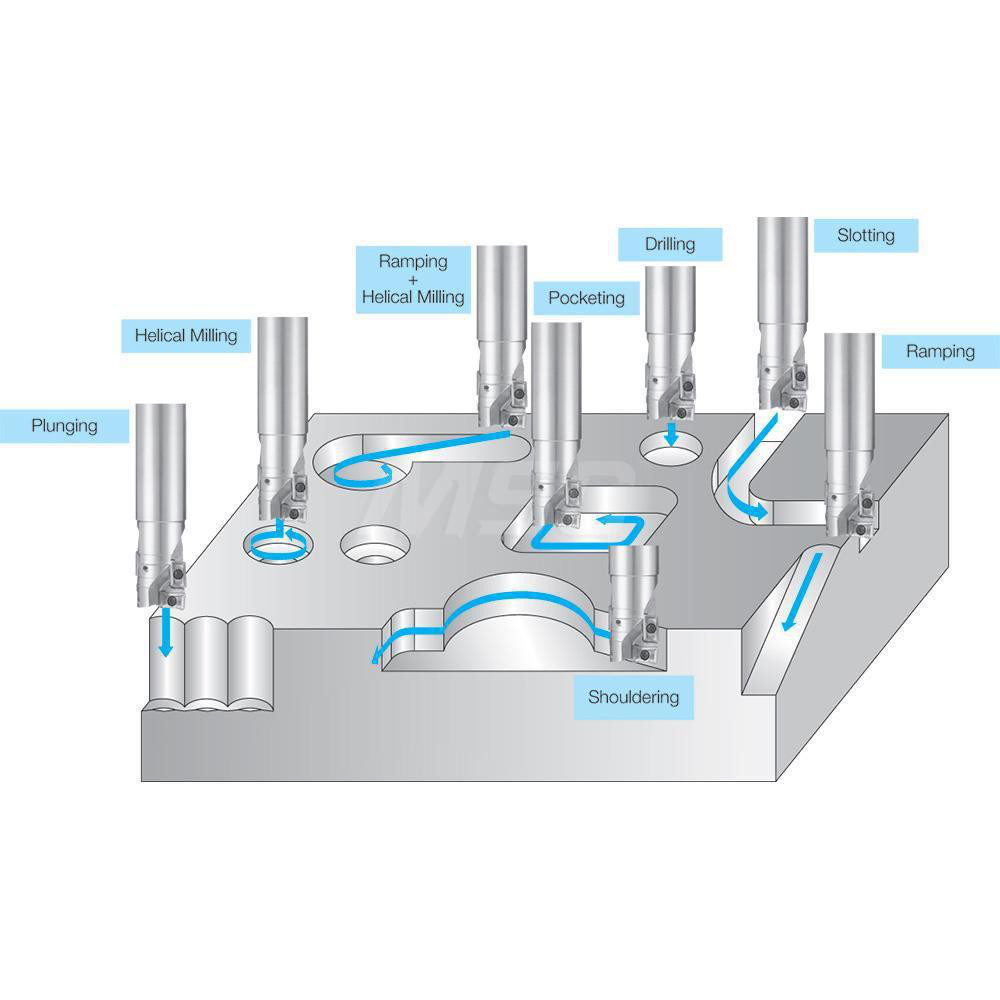

| Tool Application | Facing; Plunging; Pocketing; Ramping; Shouldering; Slotting |
| Insert Compatibility | GOMT 160408ER-D; JOMT 160408ER-D |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 6.6490 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 35939941 |
