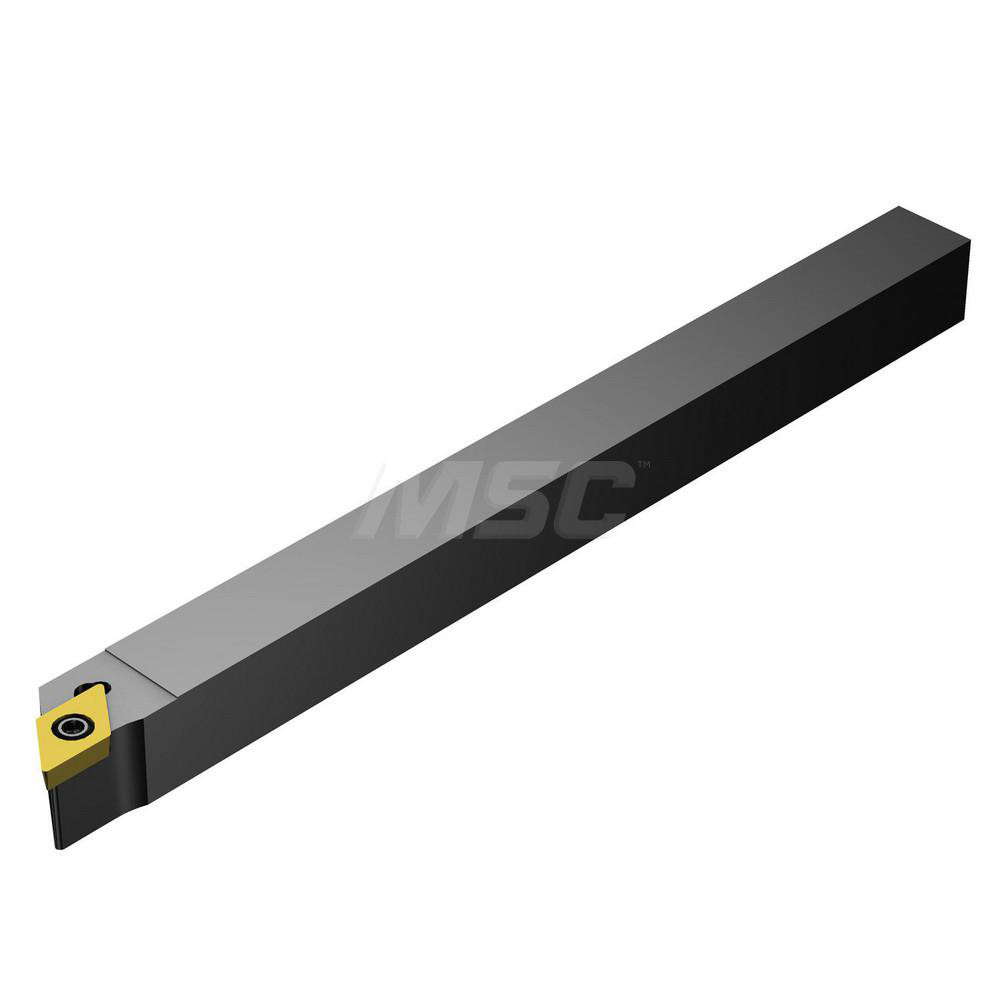

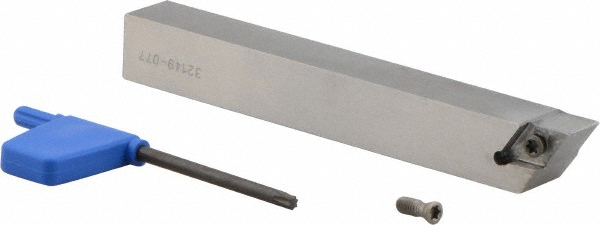

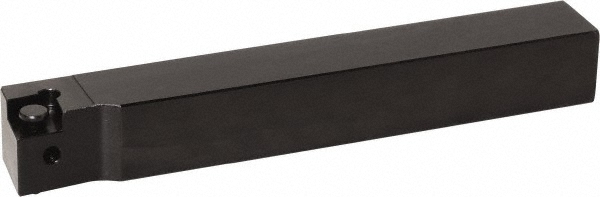

16.00 x 16.00 mm Shank, 120.00 mm OAL
| Toolholder Style | AVJB |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | VB.. 22..; VC.. 22.. |
| Insert Holding Method | Clamp |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VBMT22; VBET22; VBGW22; VBGT22 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | AVJB |
| Cutting Tool Application | Copying; Swiss |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness | 3.18 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 35799030 |
