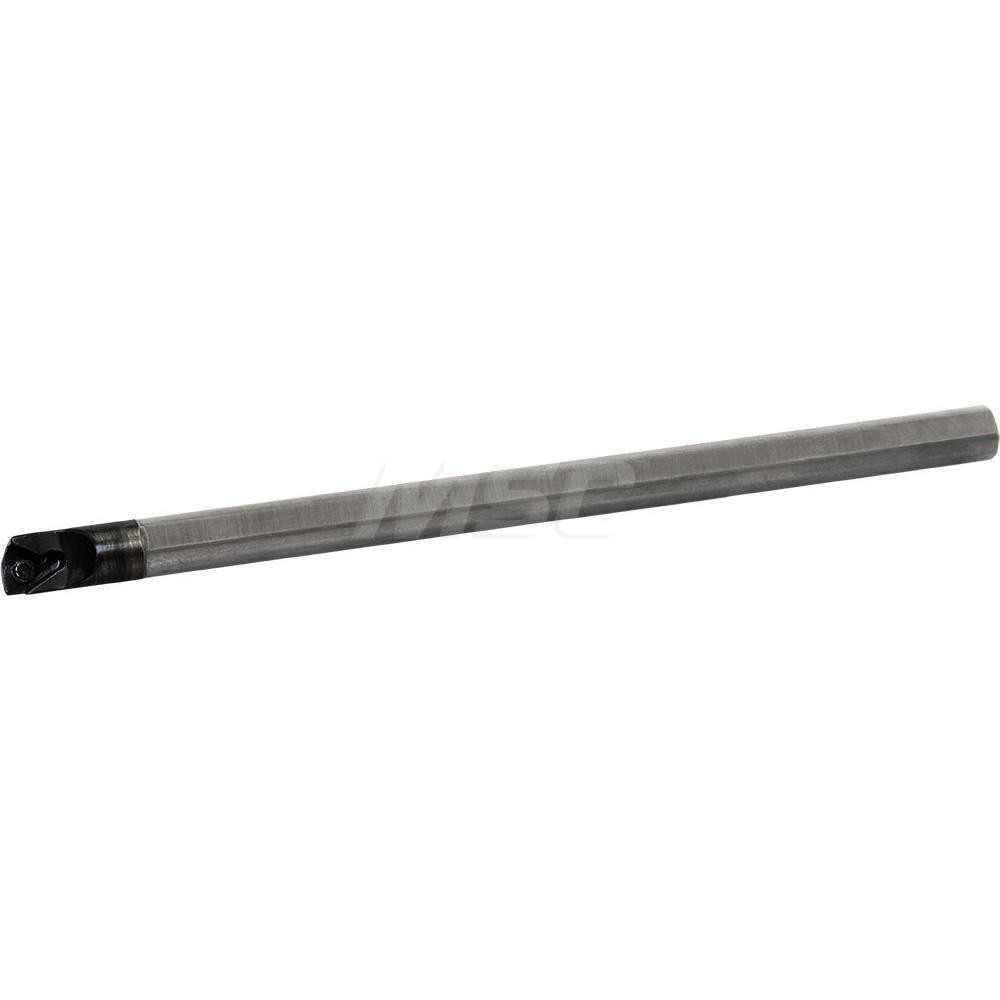

9/32" Shank, 5" OAL
| Toolholder Style | C..SWUB |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | WB.. / WP.. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 9/32 |
| Overall Length (Decimal Inch) | 5.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WBGT1515; WBET1515; WBMT1515; WBGW1515 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.2810 |
| Series | CI-SWUN |
| Overall Length (Inch) | 5 |

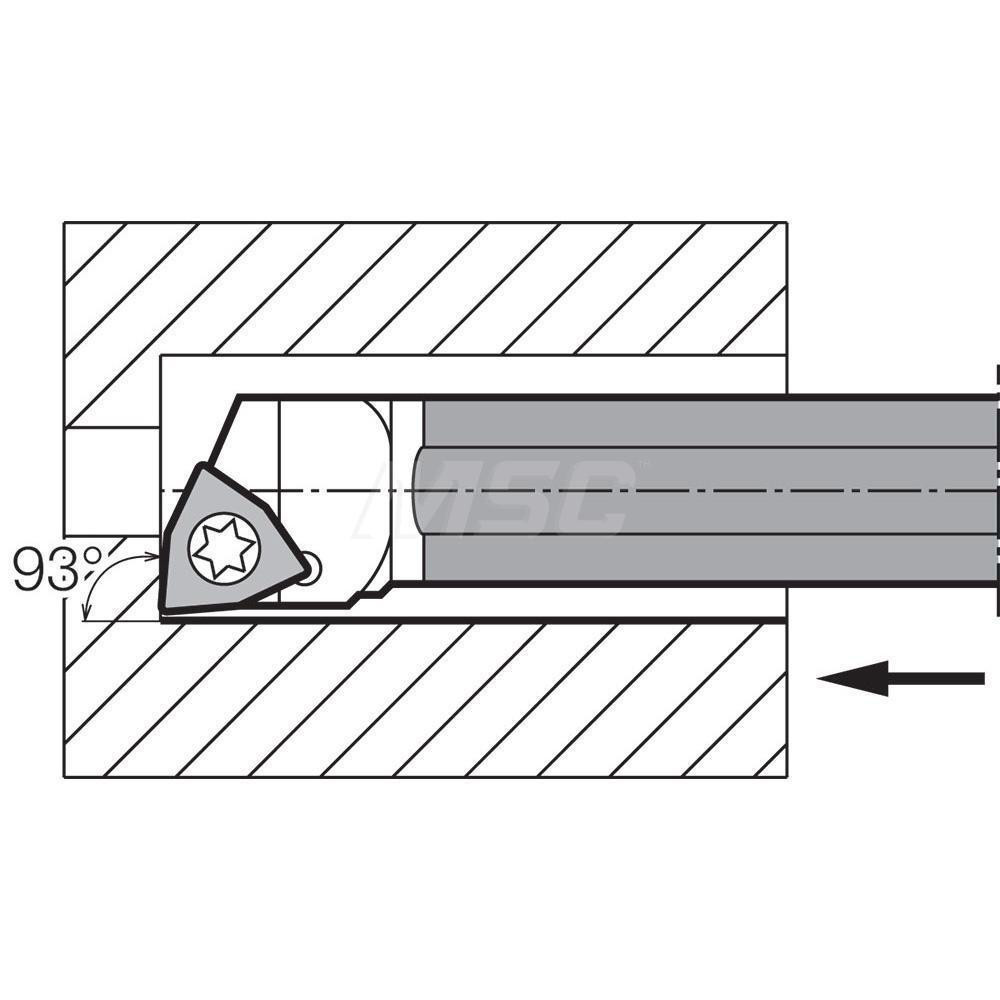

| Cutting Tool Application | Boring |
| Head Length (Decimal Inch) | 0.5500 |
| Maximum Overhang (Inch) | 7.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.1575 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 88240981 |
