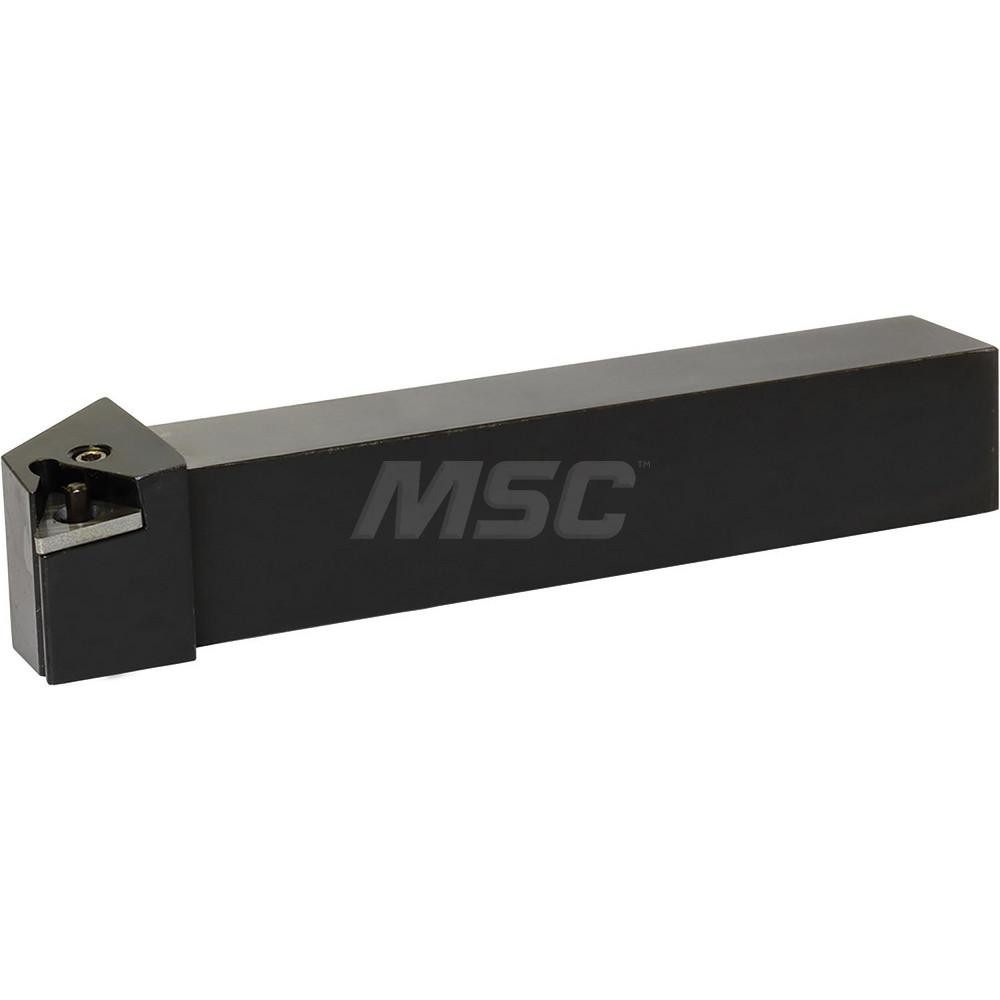

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | LLTH |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | TNMG33…; TNGG33…; TNMX33…; TNMM33…; TNGA33… |
| Insert Holding Method | Lock Pin; Lever Lock |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Series | LLTH |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | External Turning |
| Toolholder Material | Steel |
| ISO Number | PTGNR123B |
| Complete Insert Compatibility | TNMG33…; TNGG33…; TNMX33…; TNMM33…; TNGA33… |
| UNSPSC Code | 23242106 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 18291914 |
