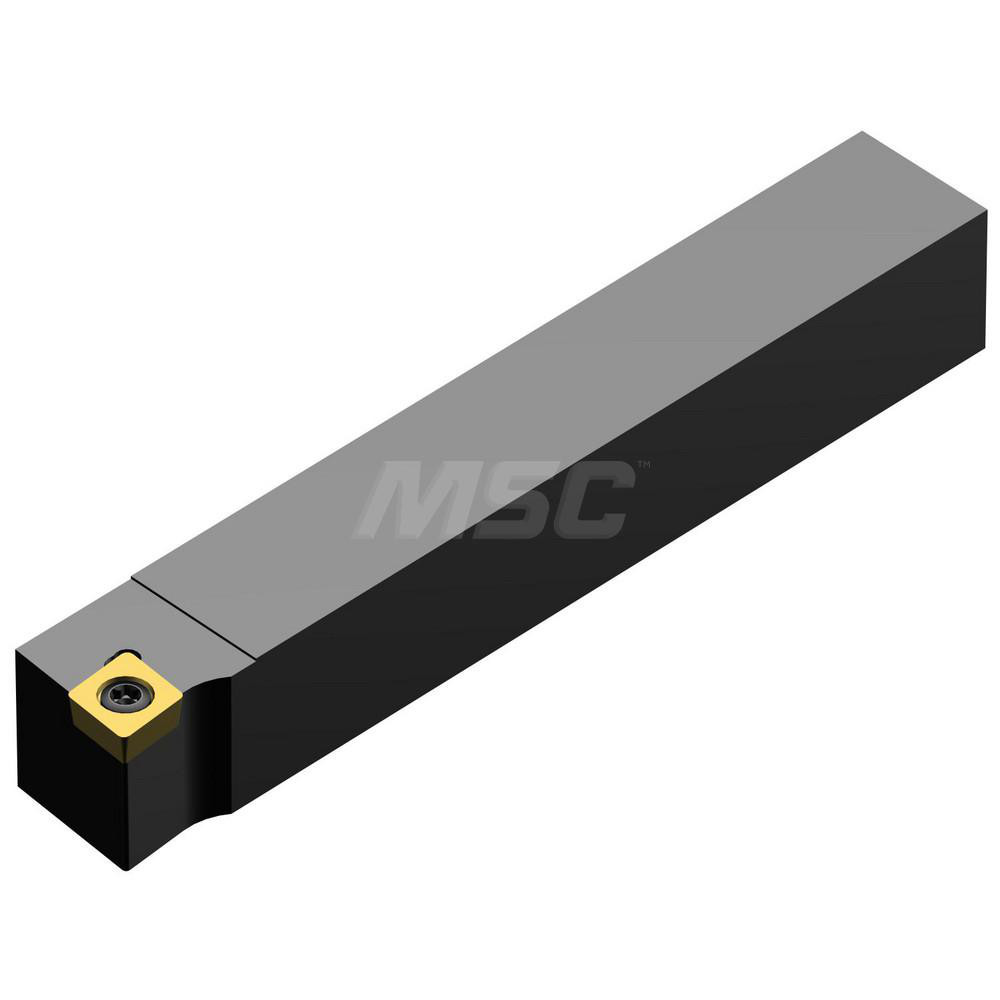

5/8 x 5/8" Shank, 5" OAL
| Toolholder Style | SCLC |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CCMT325…; CCGW325…; CCGT325…; CCMW325… |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Coolant Through | No |
| Rake | Positive |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | SCLC |
| Overall Length (Inch) | 5 |
| Head Length (Decimal Inch) | 0.5720 |
| Back of Bar to Cutting Edge (Inch) | 3/4 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Corner Radius (Decimal Inch) | 0.0039 |
| ISO Number | SCLCR103C |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | SCLCR103C |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 28505923 |
