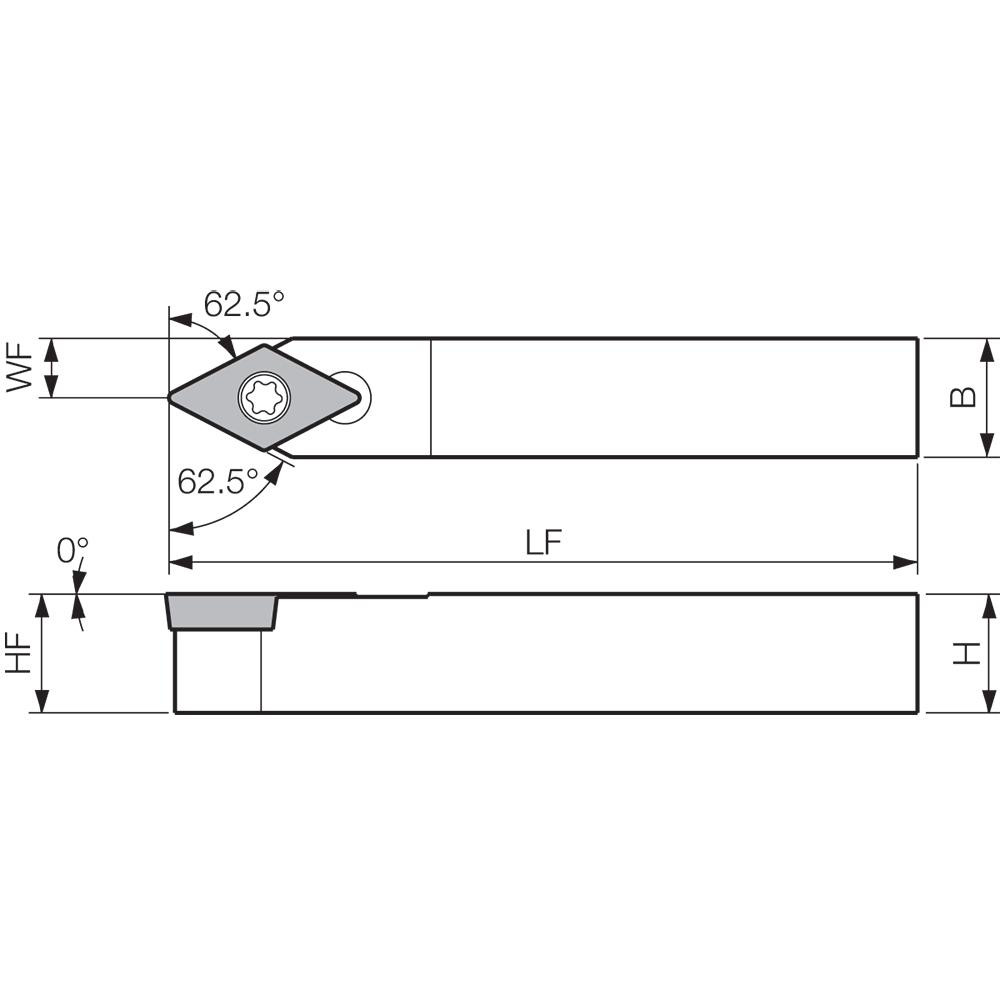

3/8 x 3/8" Shank, 4-3/4" OAL
| Toolholder Style | SDNCN |
|---|---|
| Hand of Holder | Neutral |
| Insert Compatibility | DCMW325…; DCGW325…; DCMT325…; DCET325…; DCMX325…; DCGT325… |
| Shank Width (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 4.7500 |
| Coolant Through | No |
| Rake | Positive |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | SDNC |
| Overall Length (Inch) | 4-3/4 |
| Back of Bar to Cutting Edge (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Corner Radius (Decimal Inch) | 0.0079 |
| ISO Number | SDNCN6-3JX |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | SDNCN63JX |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 28505717 |
