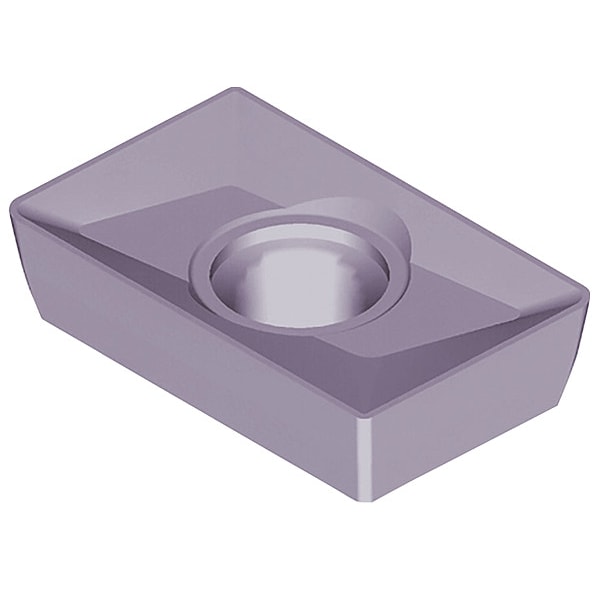

Milling Insert, 1/32" Corner Radius
| Item | Indexable PVD Carbide Milling Insert |
|---|---|
| Insert Style | XPMT |
| Insert Size | 15T308 |
| Corner Radius | 1/32 in |
| Cutting Application | Finishing, Roughing |
| Chip-Breaker Style | Single Sided |
| Clearance Angle | 3 deg |
| Primary Material Application ISO Code | K |
| Chip-Breaker | Yes |
| Finish - Machining | Megacoat Nano |
| Cutting Edge Length | 0.607 in |
| Hole Type | Countersink Hole |
| For Toolholder | CM Series, EM, EM-LE, FM-90 |
| For Use With | Milling Cutters |
| Cutting Direction | Right Hand |
| Cutting Edge | Honed, T-Land |
| Coating Process | PVD |
| Lead Angle | 15 deg |
| Mounting Hole Dia. | 5/32 in |
| Measurement System | Fractional Inch |
| Features | For Gray and Nodular Cast Iron, Long Tool Life, Prevents Wear and Fracture With High Hardness (35GPa) and Superior Oxidation Resistance (Oxidation Temperature: 1150 Degrees C), Stable Machining of Cast Iron, Stable Wear Resistance And Toughness, Superior Wear Resistance and High Oxidation Resistance |
| Shape | Parallelogram |
| Manufacturer Grade | PR1510 |
| Number of Cutting Edges | 4 |
| Material - Machining | Carbide |
| Mounting Style | Screw Clamp |
| Primary Material Application | Cast Iron |
| Inscribed Circle | Not Applicable |
| Through Hole Inside Dia. | Not Applicable |
| Width | 3/8 in |
| Thickness | 5/32 in |
| Package Quantity | 1 |
