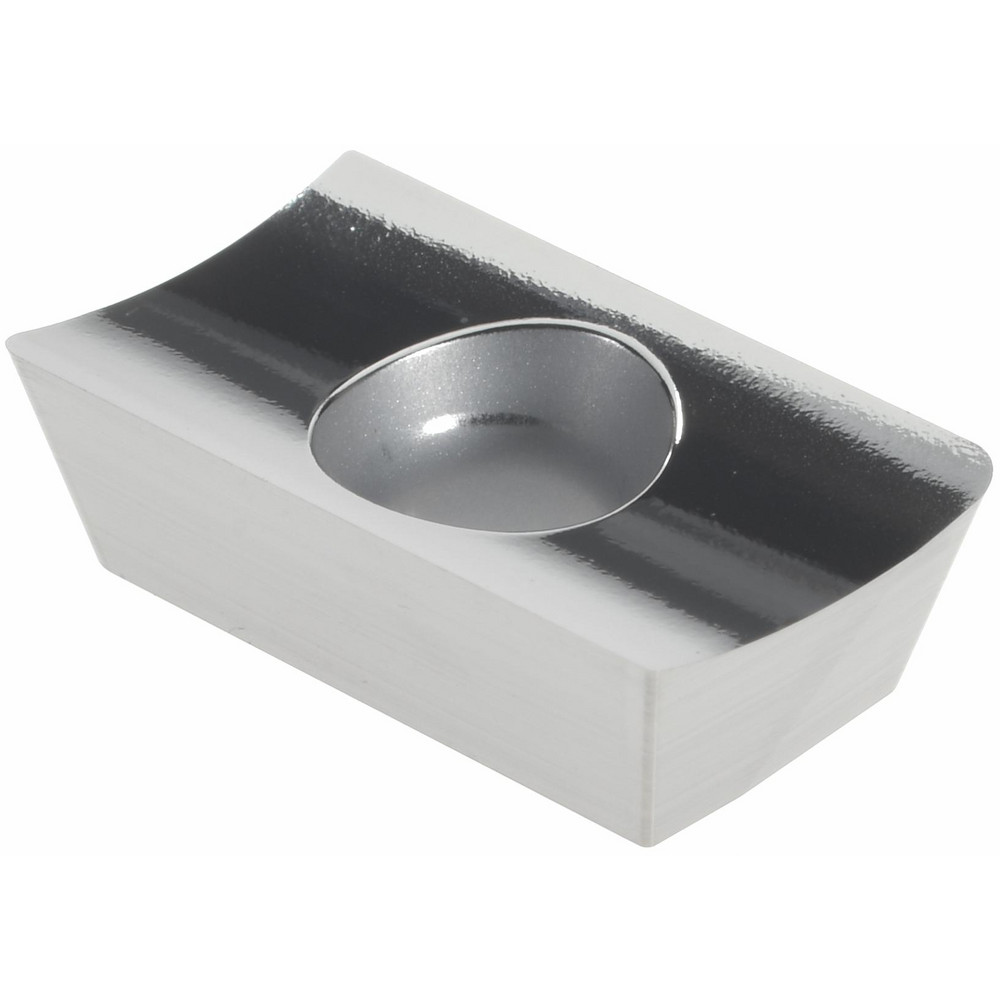

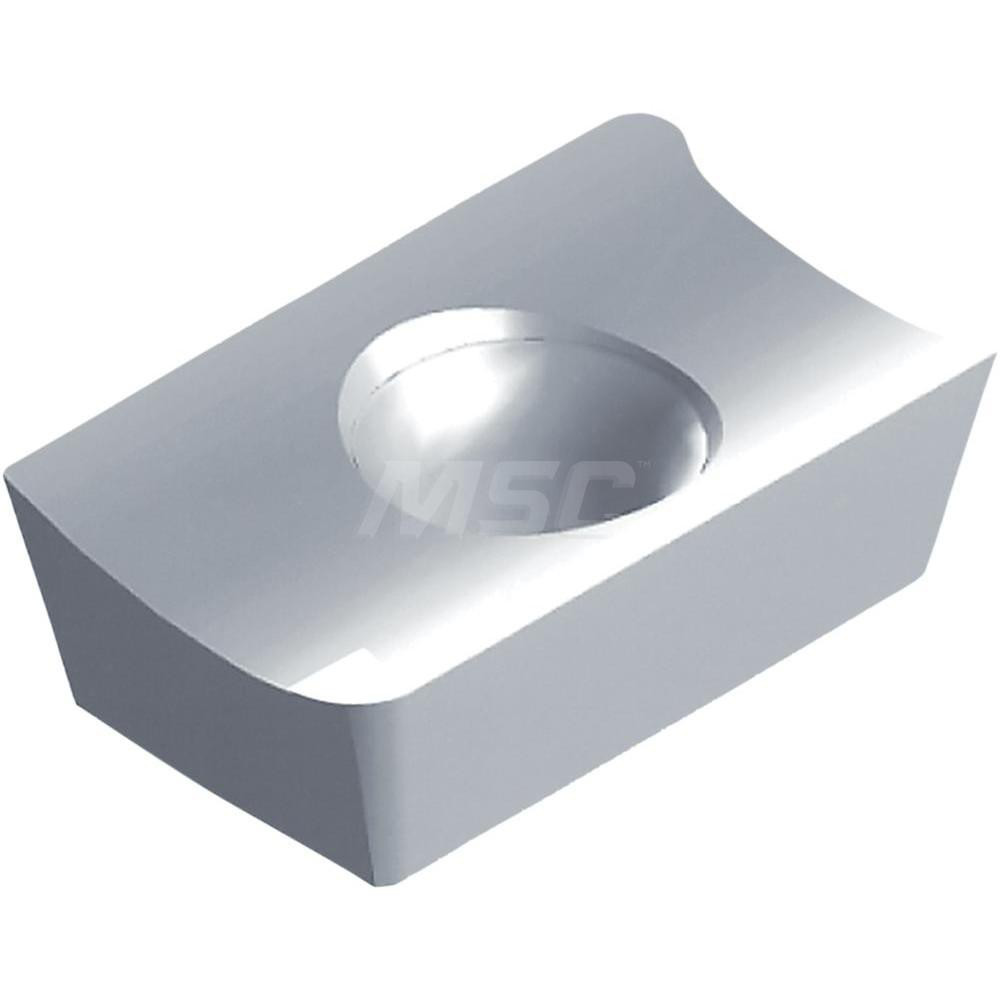

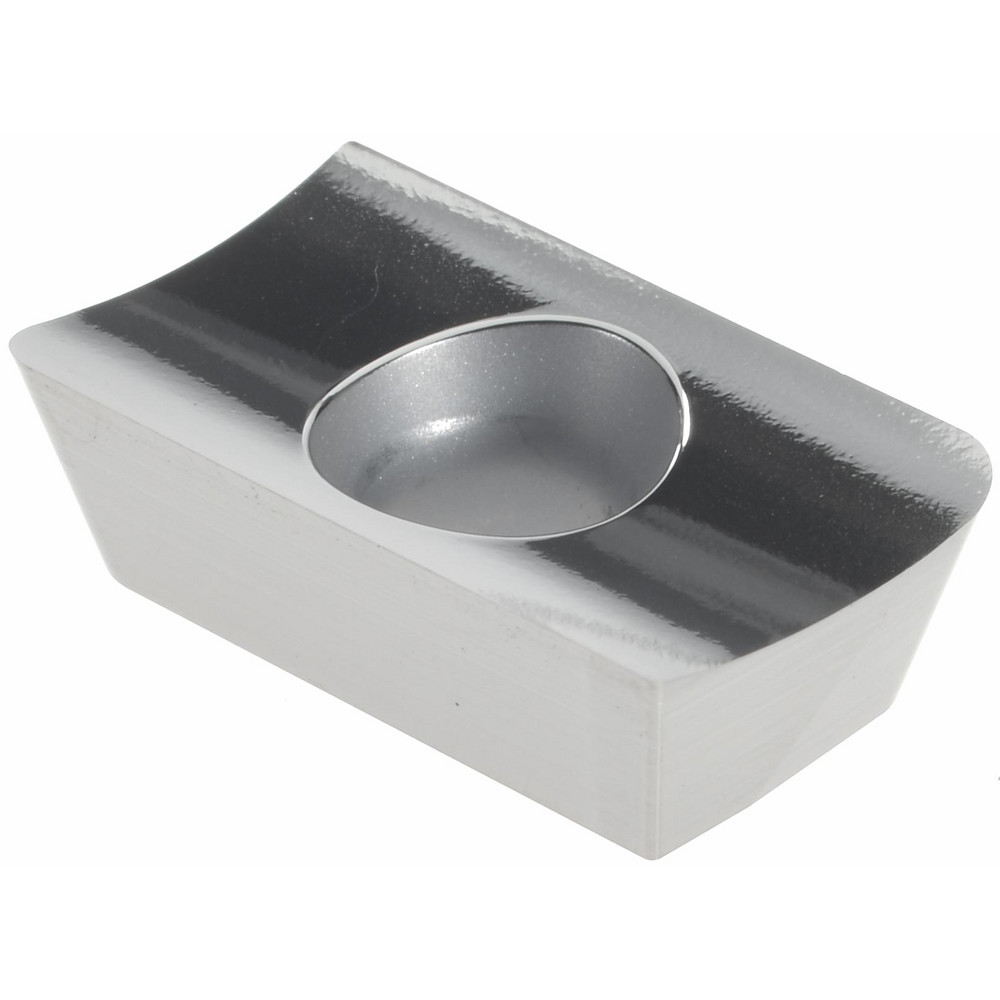

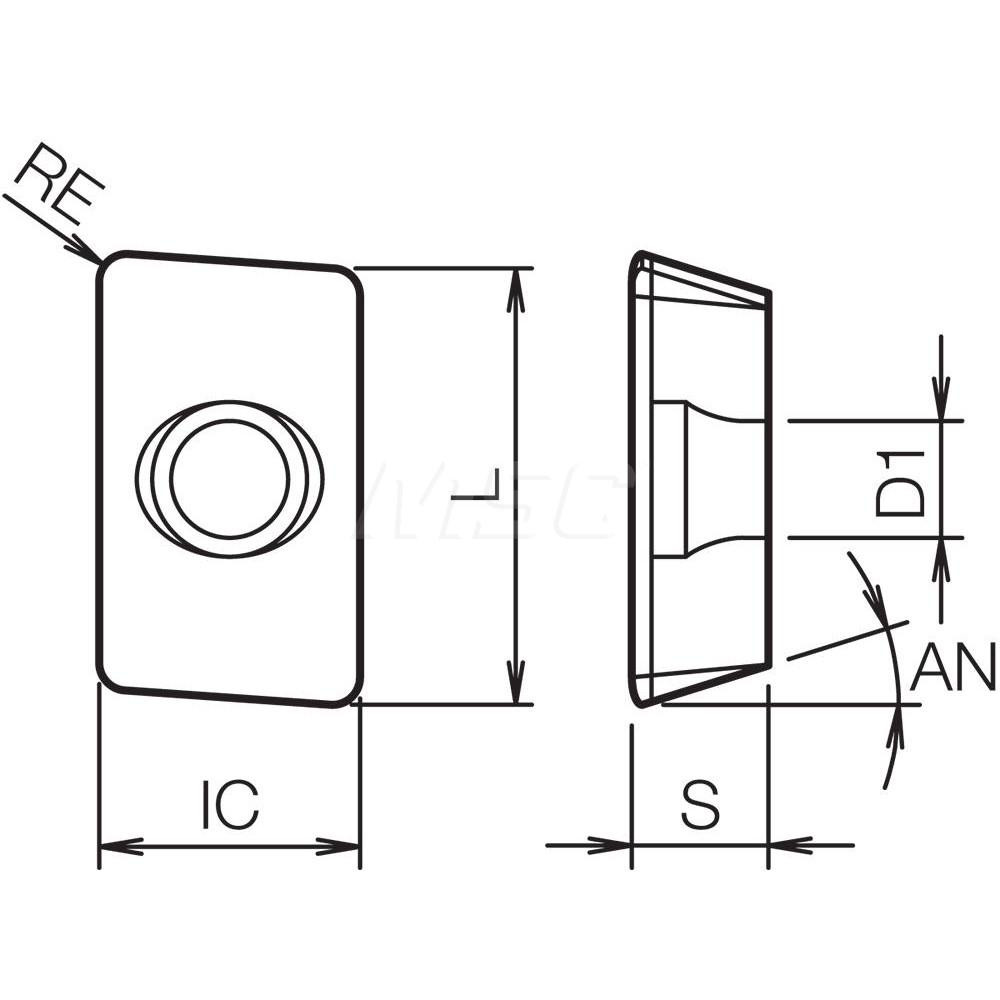

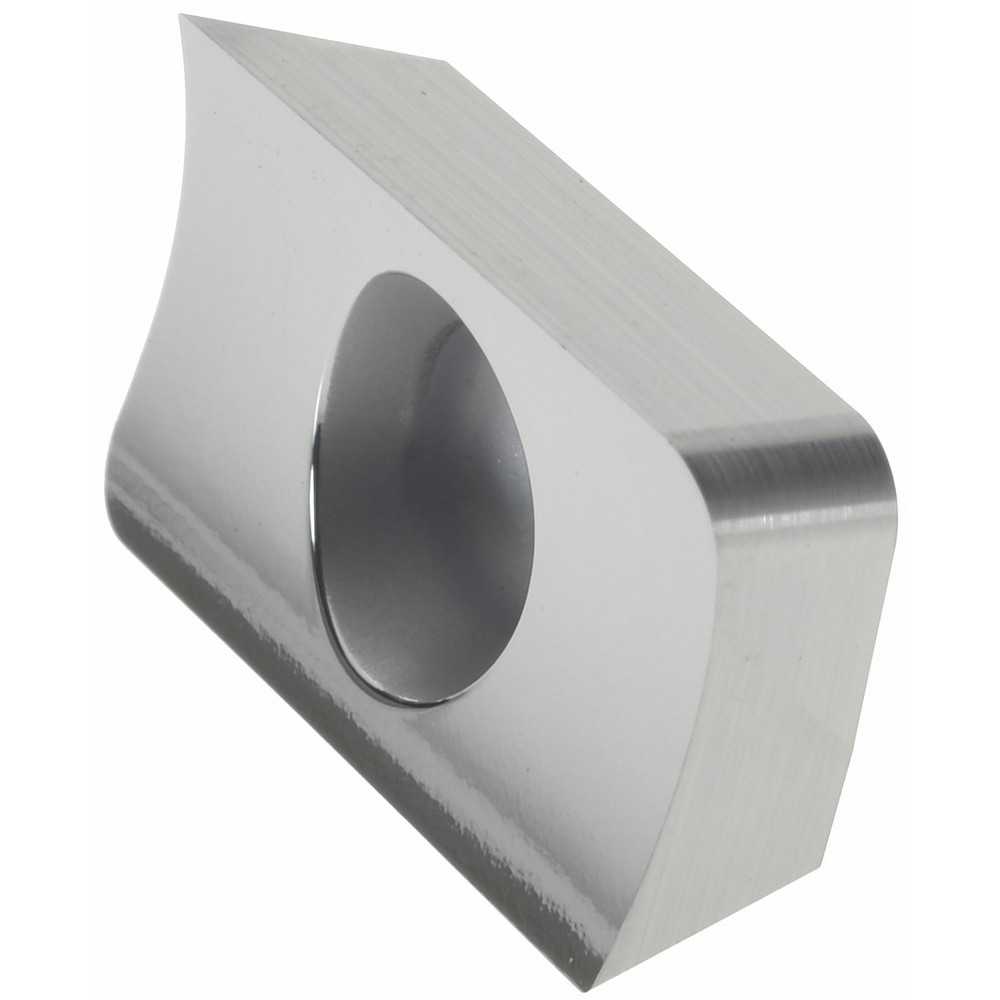

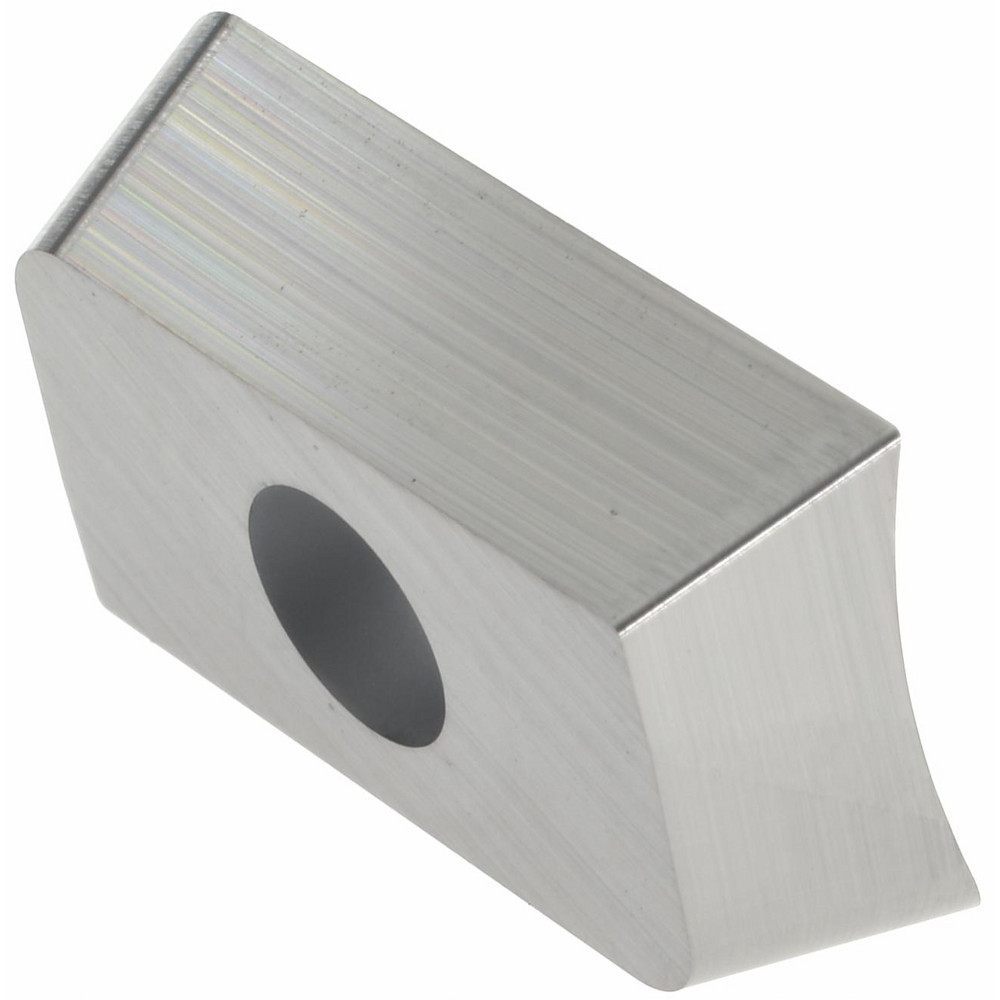

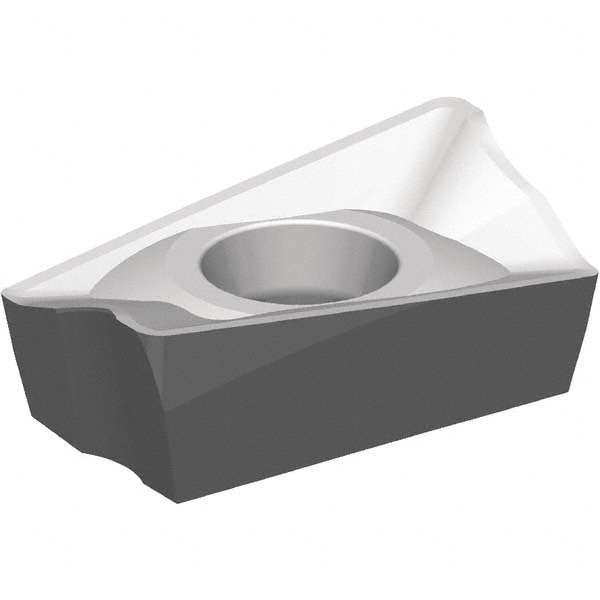

Bright/Uncoated Finish, 0.1880" Thick, 0.3750" Wide
| Insert Style | APET |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KW10 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1880 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 160416 |
| Material Grade | C3 |
| Width (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/16 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Series | OTMA |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | APET160416KW10 |
| Iso Code | APET160416 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | APET160416 |
| Cutter Series Compatibility | EM-AL; FMAL; CM-AL |
| Chip Breaker | Common |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 06023238 |
